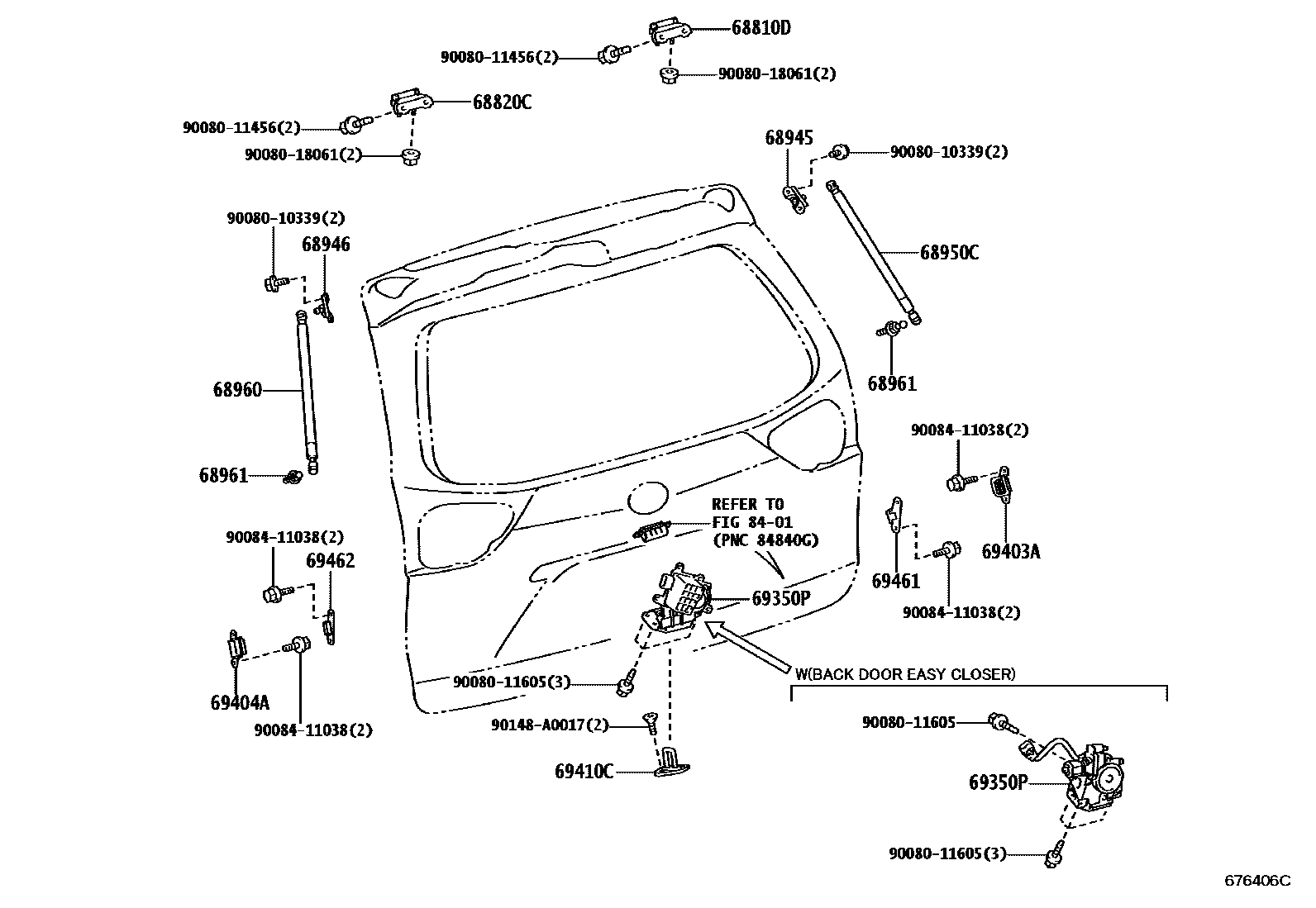

BACK DOOR LOCK & HINGE

0001 1 0002 1W(POWER BACK DOOR)

68810DHINGE ASSY, BACK DOOR, RH

main68810-0E020iGSL3#201001-202009

68820CHINGE ASSY, BACK DOOR, LH

main68810-0E020iGSL3#201001-202009

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-08010iGSL3#201001-202009

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-08010iGSL30,33;GSL35..LE,XLE201001-202009

68950CSTAY ASSY, BACK DOOR, RH

main68950-08010iASL30;GSL35..STD201001-201403

sub68950-08011

main68950-08011iGSL3#..LE,STD201404-201701

sub68950-08012

main68950-08012iGSL3#..LE,STD201702-202009

main68950-08020iASL30..08S201005-201308

LEATHER PACKAGE&AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH

sub68950-08021

main68950-08020iGSL30..SE201005-201403

LUXURY PACKAGE

sub68950-08021

main68950-08020iASL30201005-201308

LUXURY PACKAGE&AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH

sub68950-08021

main68950-08020iGSL30,35..XLE201001-201403

MOBILITY BASE VEHICLE

sub68950-08021

main68950-08020iGSL30,35..XLE201001-201403

WITH(LIFT UP SEAT)

sub68950-08021

main68950-08021iGSL30,35..SE,XLE201409-201701

WITH(POWER SLIDE DOOR & POWER BACK DOOR)

sub68950-08022

main68950-08021iGSL30..SE201404-201409

MOBILITY BASE VEHICLE

sub68950-08022

main68950-08021iGSL30..SE201404-201409

LUXURY PACKAGE

sub68950-08022

main68950-08021iGSL30,35..XLE201404-201409

WITH(LIFT UP SEAT)

sub68950-08022

main68950-08022iGSL30..07S..LE201702-202009

WITH(POWER SLIDE DOOR & POWER BACK DOOR)

main68950-08030iASL30..08S201005-201403

LUXURY PACKAGE&AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68950-08031

main68950-08030iASL30201005-201308

LEATHER PACKAGE&AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68950-08031

main68950-08030iASL30201005-201308

LEATHER PACKAGE&AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68950-08031

main68950-08030iASL30201005-201308

LUXURY PACKAGE&AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68950-08031

main68950-08030iGSL30,35..XLE201001-201403

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68950-08031

main68950-08030iGSL30,35..XLE201001-201403

AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68950-08031

main68950-08031iGSL30,35..XLE201404-201409

LUXURY PACKAGE&AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68950-08032

main68950-08031iGSL30,35..XLE201404-201409

AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68950-08032

main68950-08031iGSL30,35..XLE201404-201409

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68950-08032

main68950-08031iGSL30,35..07S..XLE201409-201608

AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL

sub68950-08032

main68950-08031iGSL30,35..07S..XLE201608-201701

AUDIO-AVN(AM/FM/CD) & 10SPEAKER

sub68950-08032

main68950-08032iGSL30,35..07S..XLE201711-202009

AUDIO-AVN(AM/FM/CD) 10SPEAKER

main68950-08032iGSL30,35..07S..XLE201702-201711

AUDIO-AVN(AM/FM/CD) & 10SPEAKER

main68950-08032iGSL30,35..SE201808-202009

STARTING SYSTEM-PUSH BUTTON

main68950-08040iGSL30..SE201005-201403

main68950-08041iGSL30..SE201404-201409

sub68950-08042

68960STAY ASSY, BACK DOOR, LH

main68960-08010iASL30;GSL35..STD201001-201403

sub68960-08011

main68960-08011iGSL3#..LE,STD201404-201701

sub68960-08012

main68960-08012iGSL3#..LE,STD201702-202009

main68960-08020iASL30..08S201005-201308

LEATHER PACKAGE&AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH

sub68960-08021

main68960-08020iASL30..08S201005-201308

LUXURY PACKAGE&AUDIO-AM/FM & CD & 6SPEAKER & BLUETOOTH

sub68960-08021

main68960-08020iGSL30..SE201005-201403

LUXURY PACKAGE

sub68960-08021

main68960-08020iGSL30..07S..LE201001-201403

WITH(LIFT UP SEAT)

sub68960-08021

main68960-08020iGSL30..07S..LE201001-201403

MOBILITY BASE VEHICLE

sub68960-08021

main68960-08021iGSL30..SE201404-201409

LUXURY PACKAGE

sub68960-08022

main68960-08021iGSL30,35..XLE201404-201409

MOBILITY BASE VEHICLE

sub68960-08022

main68960-08021iGSL30,35..XLE201404-201409

WITH(LIFT UP SEAT)

sub68960-08022

main68960-08021iGSL30,35..SE,XLE201409-201701

WITH(POWER SLIDE DOOR & POWER BACK DOOR)

sub68960-08022

main68960-08022iGSL30,35..SE,XLE201702-202009

WITH(POWER SLIDE DOOR & POWER BACK DOOR)

main68960-08030iGSL30,35..XLE201001-201403

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68960-08031

main68960-08030iGSL30,35..XLE201001-201403

AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68960-08031

main68960-08030iASL30201005-201308

LUXURY PACKAGE&AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68960-08031

main68960-08030iGSL30..SE201005-201403

LUXURY PACKAGE&AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68960-08031

main68960-08030iASL30201005-201308

LEATHER PACKAGE&AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68960-08031

main68960-08030iASL30201005-201308

LEATHER PACKAGE&AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68960-08031

main68960-08031iGSL30,35..XLE201404-201409

AUDIO-AM/FM & 6CD-CHANGER & 10SPEAKER & *BT

sub68960-08032

main68960-08031iGSL30,35..XLE201404-201409

AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68960-08032

main68960-08031iGSL30,35..07S..XLE201608-201701

AUDIO-AVN(AM/FM/CD) & 10SPEAKER

sub68960-08032

main68960-08031iGSL30,35..XLE201404-201409

LUXURY PACKAGE&AUDIO-AVN & 10SPEAKER & BLUETOOTH

sub68960-08032

main68960-08031iGSL30,35..07S..XLE201409-201608

AUDIO-AVN(AM/FM/CD) & 10SPEAKER JBL

sub68960-08032

main68960-08032iGSL30,35..07S..XLE201702-201711

AUDIO-AVN(AM/FM/CD) & 10SPEAKER

main68960-08032iGSL30,35..07S..XLE201711-202009

AUDIO-AVN(AM/FM/CD) 10SPEAKER

main68960-08032iGSL30,35..SE201808-202009

STARTING SYSTEM-PUSH BUTTON

main68960-08040iGSL30..SE201005-201403

main68960-08041iGSL30..SE201404-201409

sub68960-08042

68961BOLT, BACK DOOR STAY

main68961-08020iGSL30,33;GSL35..LE,XLE201001-202009

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-08020iGSL3#..LE,STD201001-202009

main69350-08040iGSL30..07S..LE201001-201409

MOBILITY BASE VEHICLE

main69350-08040iASL30201005-201308

LEATHER PACKAGE

main69350-08040iASL30201005-201409

LUXURY PACKAGE

main69350-08040iGSL30,35..XLE201001-201409

WITH(LIFT UP SEAT)

main69350-08040iGSL30,35..SE,XLE201409-202009

WITH(POWER SLIDE DOOR & POWER BACK DOOR)

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-08020iASL30;GSL35..STD201001-202009

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-08020iASL30;GSL35..STD201001-202009

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-08040iASL30;GSL35..STD201001-202009

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-08020iASL30;GSL35..STD201001-202009

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-08020iASL30;GSL35..STD201001-202009

8401

9008010339

main90080-10339

9008011456

main90080-11456

9008011605

main90080-11605

9008018061

main90080-18061

9008411038

main90084-11038

90148A0017

main90148-A0017

20 parts on this diagram · 2 diagrams in section
