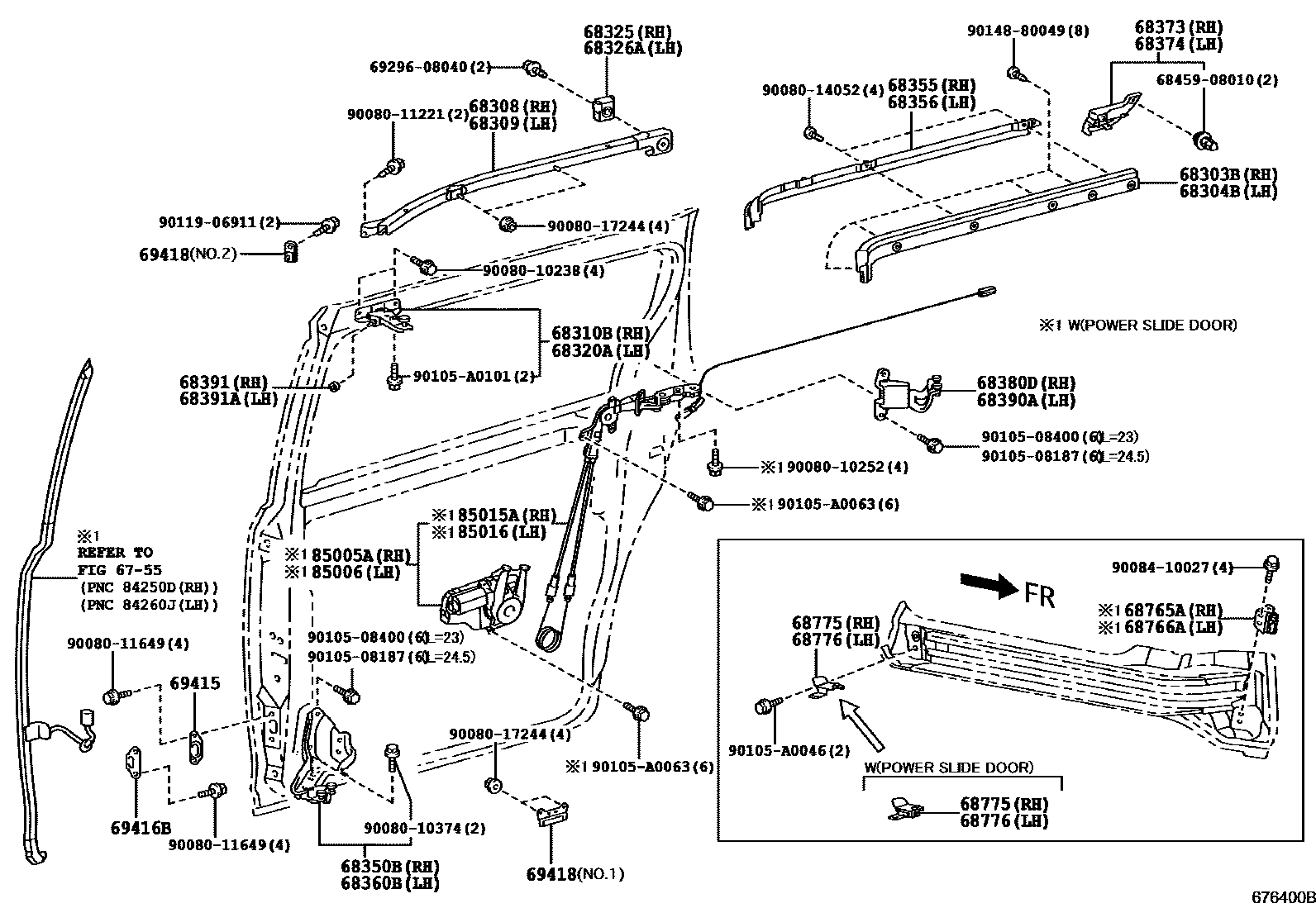

SLIDE ROLLER & RAIL
6755
68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
68355GARNISH, SLIDE DOOR CENTER RAIL, RH
68356GARNISH, SLIDE DOOR CENTER RAIL, LH
68373MOULDING, SLIDE RAIL END, RH
68374MOULDING, SLIDE RAIL END, LH
68391CUSHION, SLIDE DOOR UPPER ROLLER, RH
68391ACUSHION, SLIDE DOOR UPPER ROLLER, LH
68765ABRACKET, SLIDE DOOR, CENTER NO.1 RH
68766ABRACKET, SLIDE DOOR, CENTER NO.1 LH
68775BRACKET, SLIDE DOOR, CENTER NO.2 RH
DE-CONTENT PACKAGE
WITHOUT(POWER SLIDE DOOR)
W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)
68776BRACKET, SLIDE DOOR, CENTER NO.2 LH
WITHOUT(POWER SLIDE DOOR)
DE-CONTENT PACKAGE
W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)
69415STOPPER, SLIDE DOOR DOWN FEMALE
69416BSTOPPER, SLIDE DOOR DOWN MALE
sub69046-28020
69418STOP, SLIDE DOOR OPEN
NO.1
NO.2
85005AMOTOR UNIT, SLIDE DOOR, RH
sub85005-08011
LEATHER PACKAGE
LUXURY PACKAGE
POWER PACKAGE
sub85005-08015
85006MOTOR UNIT, SLIDE DOOR, LH
sub85006-08011
LEATHER PACKAGE
LUXURY PACKAGE
POWER PACKAGE
sub85006-08015
85015ACABLE SUB-ASSY, POWER SLIDE DOOR, RH
W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)
sub85015-08011
DE-CONTENT PACKAGE
WITHOUT(POWER SLIDE DOOR)
85016CABLE SUB-ASSY, POWER SLIDE DOOR, LH
W(*DRS:*PSE OR MANUAL, *PAS:MANUAL SEAT)
sub85016-08011
DE-CONTENT PACKAGE
WITHOUT(POWER SLIDE DOOR)
6845908010
main68459-08010
6929608040SCREW, DOOR INSIDE HANDLE
main69296-08040
9008010238
main90080-10238
9008010252
main90080-10252
9008010374
main90080-10374
9008011221
main90080-11221
9008011649
main90080-11649
9008014052
main90080-14052
9008017244
main90080-17244
9008410027
main90084-10027
9010508187
main90105-08187
9010508400
main90105-08400
90105A0046
main90105-A0046
90105A0063
main90105-A0063
90105A0101
main90105-A0101
9011906911
main90119-06911
9014880049
main90148-80049
47 parts on this diagram · 1 diagram in section
