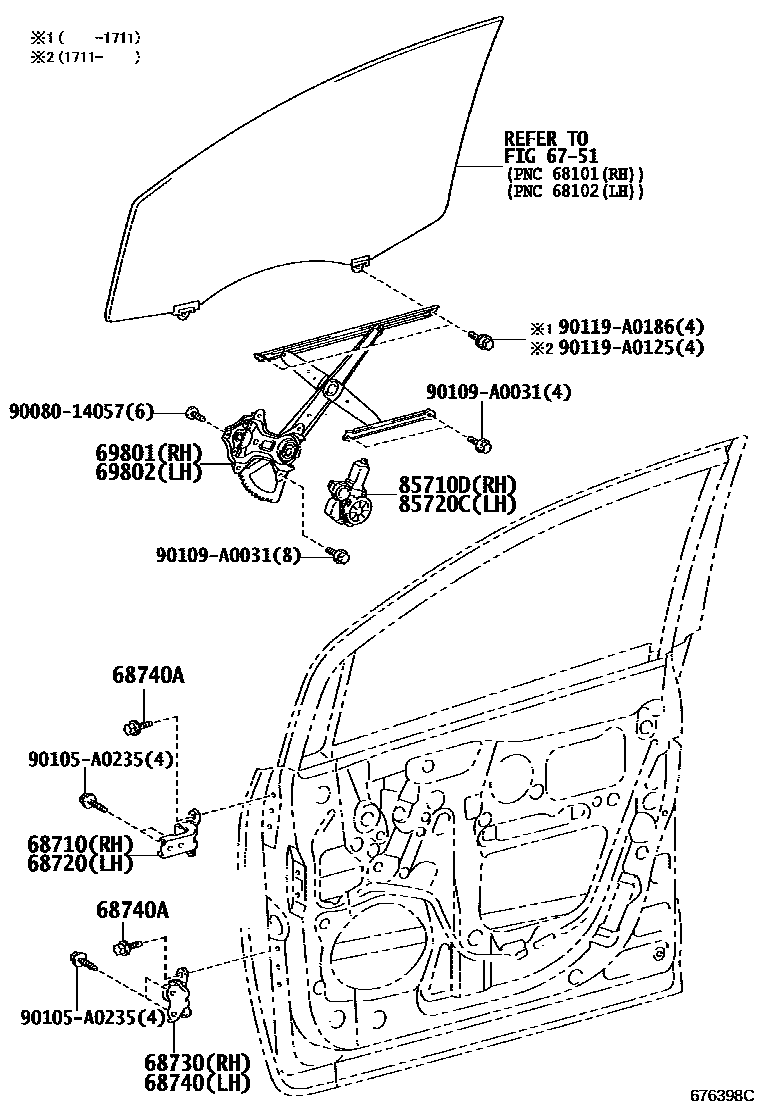

FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02020iASL30;GSL35..STD201001-202009

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02020iASL30;GSL35..STD201001-202009

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02080iASL30;GSL35..STD201001-202009

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02080iASL30;GSL35..STD201001-202009

68740ABOLT(FOR FRONT DOOR HINGE)

main90105-A0260iASL30,GSL3#201001-202004

main90105-A0282iGSL3#202005-202009

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-08020iASL30;GSL35..STD201001-202009

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-08020iGSL30,33;GSL35..LE,XLE201001-202009

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06260iGSL3#201409-201511

sub85710-06261

main85710-06261iGSL3#201512-202009

main85710-08030iASL30,GSL3#201001-201201

main85710-0E040iGSL3#201312-201409

main85710-0T030iASL30;GSL35..STD201201-201311

sub85710-0E040

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06280iGSL3#201409-201511

sub85720-06281

main85720-06281iGSL3#201512-202009

main85720-08030iASL30,GSL3#201001-201201

main85720-0E060iGSL3#201312-201409

main85720-0T030iASL30;GSL35..STD201201-201311

sub85720-0E060

9008014057

main90080-14057

90105A0235

main90105-A0235

90109A0031

main90109-A0031

90119A0125

main90119-A0125

90119A0186

main90119-A0186

15 parts on this diagram · 1 diagram in section
