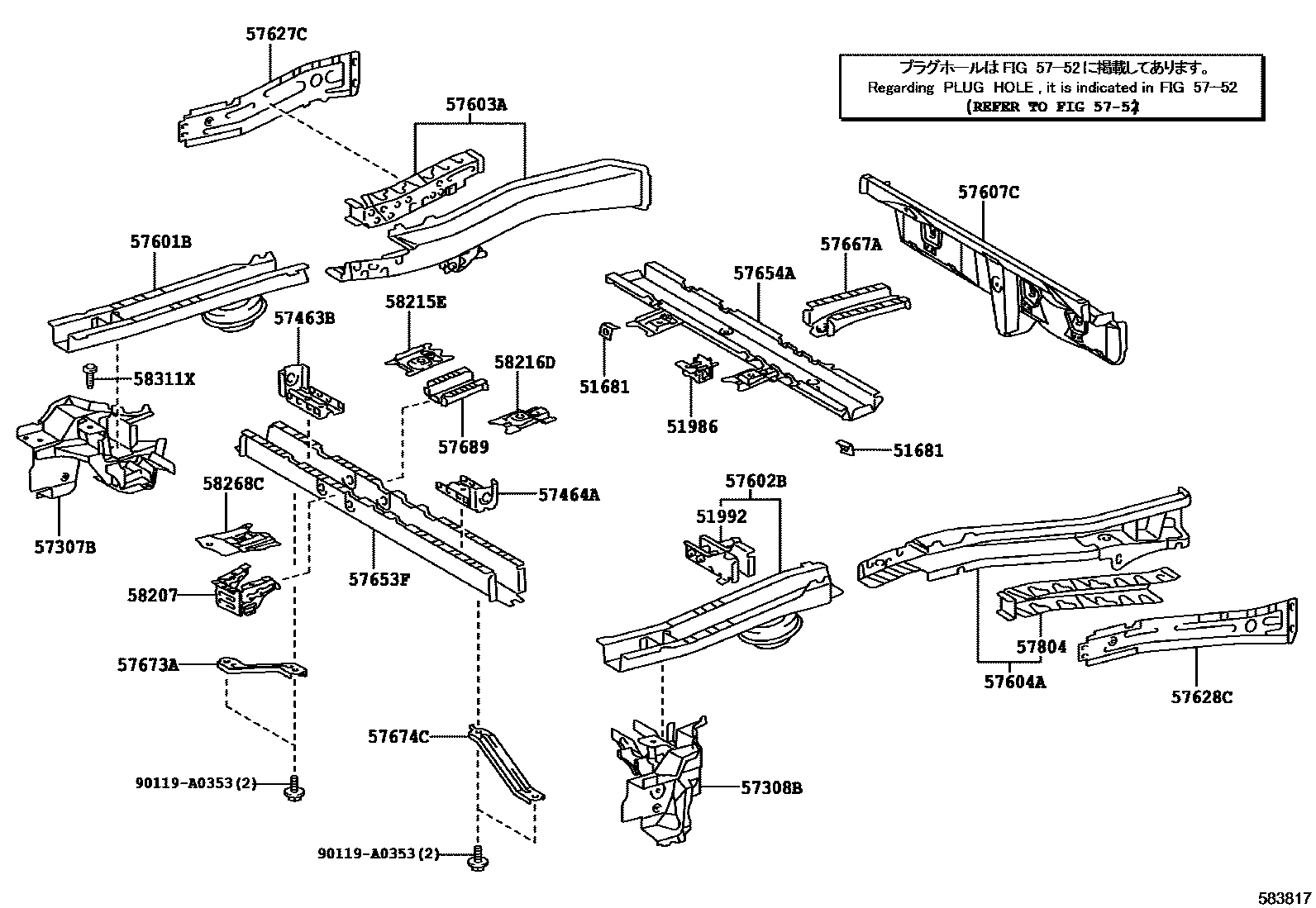

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1FLOOR MEMBER 0002 1FLOOR MEMBER 0003 1FLOOR & LOWER BACK PANEL 0004 1FLOOR & LOWER BACK PANEL

51681BRACKET, FLEXIBLE HOSE

main51681-08020iASL30;GSL35..STD201001-202009

51986HANGER, EXHAUST PIPE SUPPORT, NO.3

main51986-08010iASL30201001-202009

51992HANGER, EXHAUST PIPE SUPPORT, NO.2

main51992-08010iASL30201001-202009

57307BOUTRIGGER SUB-ASSY, NO.4 RH

main57307-08010iASL30;GSL35..STD201001-202009

57308BOUTRIGGER SUB-ASSY, NO.4 LH

main57308-08010iGSL3#201001-202009

57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH

main57463-08010iASL30;GSL35..STD201001-202009

57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH

main57464-08010iGSL3#201001-202009

5752

57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH

main57601-08030iGSL30,33;GSL35..LE,XLE¥12,600201001-202009

57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH

main57602-08040iGSL30,33¥14,600201001-202009

main57602-08050iGSL35201001-202009

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-08023iGSL3#¥20,100201001-202009

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-08021iGSL30,33;GSL35..LE,XLE¥18,200201001-202009

57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-08061iGSL30,33¥17,400201001-202009

main57607-08071iGSL35201001-202009

57627CCOVER, REAR FLOOR SIDE MEMBER, RH

main57627-08010iGSL30,33;GSL35..LE,XLE¥4,580201001-202009

57628CCOVER, REAR FLOOR SIDE MEMBER, LH

main57628-08020iASL30;GSL35..STD¥4,580201001-202009

57653FMEMBER, REAR FLOOR CROSS, NO.2

main57653-08020iASL30;GSL35..STD201001-202009

57654AMEMBER, REAR FLOOR CROSS, NO.3

main57654-08020iGSL3#201001-202009

57667AREINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.4

main57667-08020iASL30;GSL35..STD201001-202009

57673ABRACE, REAR FLOOR NO.2 CROSSMEMBER, RH

main57673-08010iGSL30,33;GSL35..LE,XLE201001-202009

57674CBRACE, REAR FLOOR NO.2 CROSSMEMBER, LH

main57673-08010iASL30;GSL35..STD201001-202009

57689REINFORCEMENT, REAR FLOOR CROSSMEMBER, NO.2

main57053-08010iGSL30,33;GSL35..LE,XLE201001-202009

57804REINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR LH

main57804-08010iGSL30,33;GSL35..LE,XLE201001-202009

58207BRACKET SUB-ASSY, PARKING BRAKE CABLE, NO.1

main58207-08020iASL30;GSL35..STD201001-202009

58215EBRACKET, REAR SEAT MOUNTING, RH

main58215-08010iGSL3#201001-202009

58216DBRACKET, REAR SEAT MOUNTING, LH

main58216-08010iASL30;GSL35..STD201001-202009

58268CREINFORCEMENT, PARKING BRAKE CABLE, NO.3 RH

main58268-08010iASL30;GSL35..STD201001-202009

58311PAN, REAR FLOOR

main58311-08031iASL30;GSL35..STD201001-202009

58311XBOLT, REAR FLOOR WELD

main90080-11610iASL30201001-202009

90119A0353

main90119-A0353

29 parts on this diagram · 4 diagrams in section
