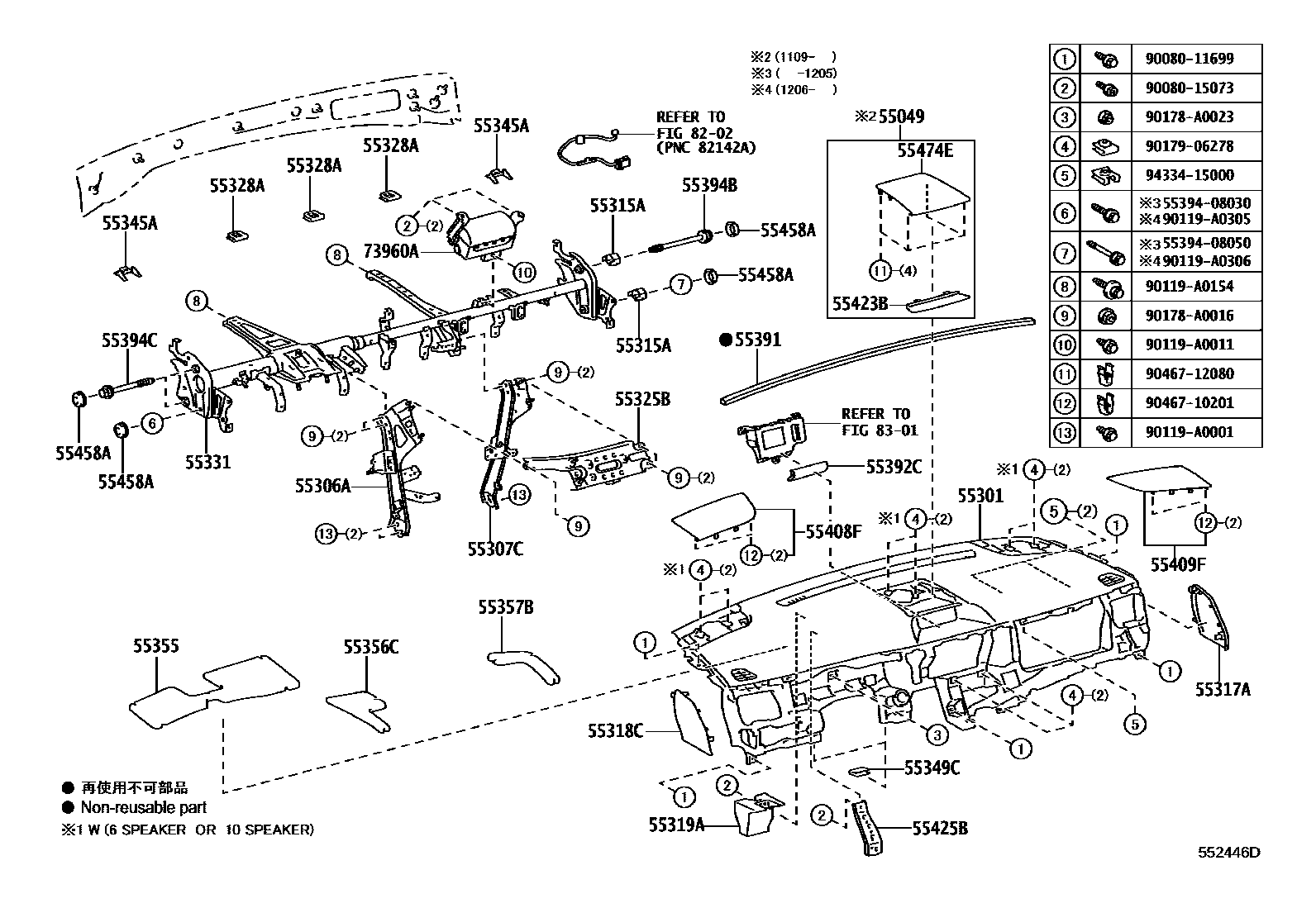

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1DRIVER SIDE 0006 1CENTER 0007 1PASSENGER SIDE 0008 1 0009 1DRIVER SIDE 0010 1CENTER 0011 1PASSENGER SIDE 0012 1*DRS W(REAR DISPLAY & BD PLAY0013 1*CTR W(REAR DISPLAY & BD PLAY0014 1*PAS W(REAR DISPLAY & BD PLAY

55049PLATE SUB-ASSY, INSTRUMENT PANEL FINISH

main55049-08011-C0iGSL30..SE201109-201409

BLACK,TRIM1#,4#

main55049-08011-C0iGSL35..LE,XLE;GSL30,33..LE,STD,XLE201109-201409

BLACK,TRIM1#

main55049-08020-C0iGSL3#..LE,STD,XLE201409-202009

BLACK,TRIM2#

main55049-08020-C0iGSL30..SE201409-202009

BLACK,TRIM1#,4#

55301PANEL SUB-ASSY, INSTRUMENT

main55301-08030-C0iASL30,GSL3#..LE,STD,XLE201001-201110

BLACK,TRIM1#,4#

sub55301-08031

sub55049-08011

main55301-08030-C0iGSL30..SE201005-201110

BLACK,TRIM1#

sub55301-08031

sub55049-08011

main55301-08031-C0iGSL30..SE201110-201207

BLACK,TRIM1#

sub55301-08032

main55301-08031-C0iGSL30..SE201110-201207

BLACK,TRIM1#,4#

sub55301-08032

main55301-08032-C0iASL30;GSL35..STD201208-201409

BLACK,TRIM1#,4#

main55301-08032-C0iGSL30..SE201208-201409

BLACK,TRIM1#

main55301-08050-C0iGSL30,35..SE201409-202009

BLACK,TRIM1#,4#

main55301-08050-C0iGSL30..SE201409-202009

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-08030iGSL30,33;GSL35..LE,XLE201001-201409

main55306-08040iGSL3#201409-202009

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-08030iGSL3#201001-202009

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040iGSL3#201001-202009

55317APANEL, INSTRUMENT SIDE, RH

main55317-08010-B0iASL30;GSL35..STD201001-201409

LT.GRAY,TRIM1#

main55317-08010-E0iASL30;GSL35..STD201001-201409

GREGE,TRIM4#

main55317-08020-B0iGSL30,35..07S..XLE201409-202009

GRAY,TRIM1#

main55317-08020-B0iGSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD)201409-202009

GRAY,TRIM14

main55317-08020-C0iGSL30,35..SE201409-202009

BLACK,TRIM2#

main55317-08020-C0iGSL30..SE201409-202009

BLACK,TRIM15,43

main55317-08020-E0iGSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD)201409-202009

GREGE,TRIM4#

main55317-08020-E0iGSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD)201409-202009

GREGE,TRIM42

55318CPANEL, INSTRUMENT SIDE, LH

main55318-08010-B0iGSL30,33;GSL35..LE,XLE201001-201409

LT.GRAY,TRIM1#

main55318-08010-E0iASL30;GSL35..STD201001-201409

GREGE,TRIM4#

main55318-08020-B0iGSL30,35..07S..XLE201409-202009

GRAY,TRIM1#

main55318-08020-B0iGSL30,35..07S..XLE201409-202009

GRAY,TRIM14

main55318-08020-C0iGSL30,35..07S..XLE201409-202009

BLACK,TRIM15,43

main55318-08020-C0iGSL30,35..07S..XLE201409-202009

BLACK,TRIM2#

main55318-08020-E0iGSL30,35..07S..XLE201409-202009

GREGE,TRIM4#

main55318-08020-E0iGSL30..08S..(LE,XLE);GSL3#..(01S,07S)..(LE,STD)201409-202009

GREGE,TRIM42

55319AEXTENSION, INSTRUMENT PANEL, NO.2

main55319-08020iGSL3#201001-202009

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-08020iGSL30,33;GSL35..LE,XLE201001-201409

main55325-08030iGSL3#201409-202009

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-08090iGSL3#201311-202009

main55328-50170iGSL30,33;GSL35..LE,XLE201001-201311

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-08030iASL30,GSL3#201001-201206

sub55330-08031

main55330-08031iGSL30,33;GSL35..LE,XLE201207-201409

main55330-08040iGSL3#201711-202009

main55330-08050iGSL3#201409-201711

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-0C020iGSL3#201001-202009

55349CCUSHION, INSTRUMENT PANEL

main55349-0C040iGSL30,33;GSL35..LE,XLE201001-202009

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-08020iASL30;GSL35..STD201001-201409

main55355-08030iGSL3#201409-202009

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-08020iASL30;GSL35..STD201001-201409

main55356-08030iGSL3#201409-202009

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-08020iASL30;GSL35..STD201001-201409

main55357-08030iGSL3#201409-202009

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-08010iASL30;GSL35..STD201001-202009

55392CCUSHION, INSTRUMENT PANEL, LOWER NO.2

main55391-08020iASL30201005-201308

LEATHER PACKAGE

main55391-08020iASL30;GSL35..STD201002-201308

main55391-08020iASL30201005-201308

LUXURY PACKAGE

main55391-08020iASL30201005-201308

POWER PACKAGE

main55391-08020iGSL30,33;GSL35..LE,XLE201002-201409

DE-CONTENT PACKAGE

55394BBOLT, INSTRUMENT PANEL

main55394-08070iGSL3#201001-202009

55394CBOLT, INSTRUMENT PANEL

main55394-08060iGSL3#201001-202009

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-08010-C0iASL30;GSL35..STD201001-202009

BLACK,TRIM1#,4#

main55472-08010-C0iGSL30..SE201005-201409

BLACK,TRIM1#

main55472-08010-C0iGSL30..SE201409-202009

BLACK,TRIM2#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-08010-C0iGSL30..SE201001-202009

BLACK,TRIM1#,4#

main55473-08010-C0iGSL30..SE201005-201409

BLACK,TRIM1#

main55473-08010-C0iGSL30..SE201409-202009

BLACK,TRIM2#

55423BCOVER, INSTRUMENT CLUSTER FINISH PANEL

main55423-08010-C0iASL30;GSL35..STD201001-201409

BLACK,TRIM1#,4#

main55423-08010-C0iGSL30..SE201005-201409

BLACK,TRIM1#

55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL

main55425-08020iASL30;GSL35..STD201001-202009

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-45010iASL30;GSL35..STD201001-202009

55474EPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.3

main55474-08010-C0iASL30;GSL35..STD201001-201409

BLACK,TRIM1#,4#

main55474-08010-C0iGSL30..SE201005-201409

BLACK,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-08050iASL30,GSL3#201001-201109

sub73960-08051

main73960-08060iGSL30,33;GSL35..LE,XLE201109-201409

sub73960-08061

main73960-08070iGSL3#201409-202009

8202

8301

5539408030BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-08030

5539408050BRACKET, INSTRUMENT PANEL TO PEDAL

main55394-08050

9008011699

main90080-11699

9008015073

main90080-15073

90119A0001

main90119-A0001

90119A0011

main90119-A0011

90119A0154

main90119-A0154

90119A0305

main90119-A0305

90119A0306

main90119-A0306

90178A0016

main90178-A0016

90178A0023

main90178-A0023

9017906278

main90179-06278

9046710201

main90467-10201

9046712080

main90467-12080

9433415000

main94334-15000

44 parts on this diagram · 14 diagrams in section
