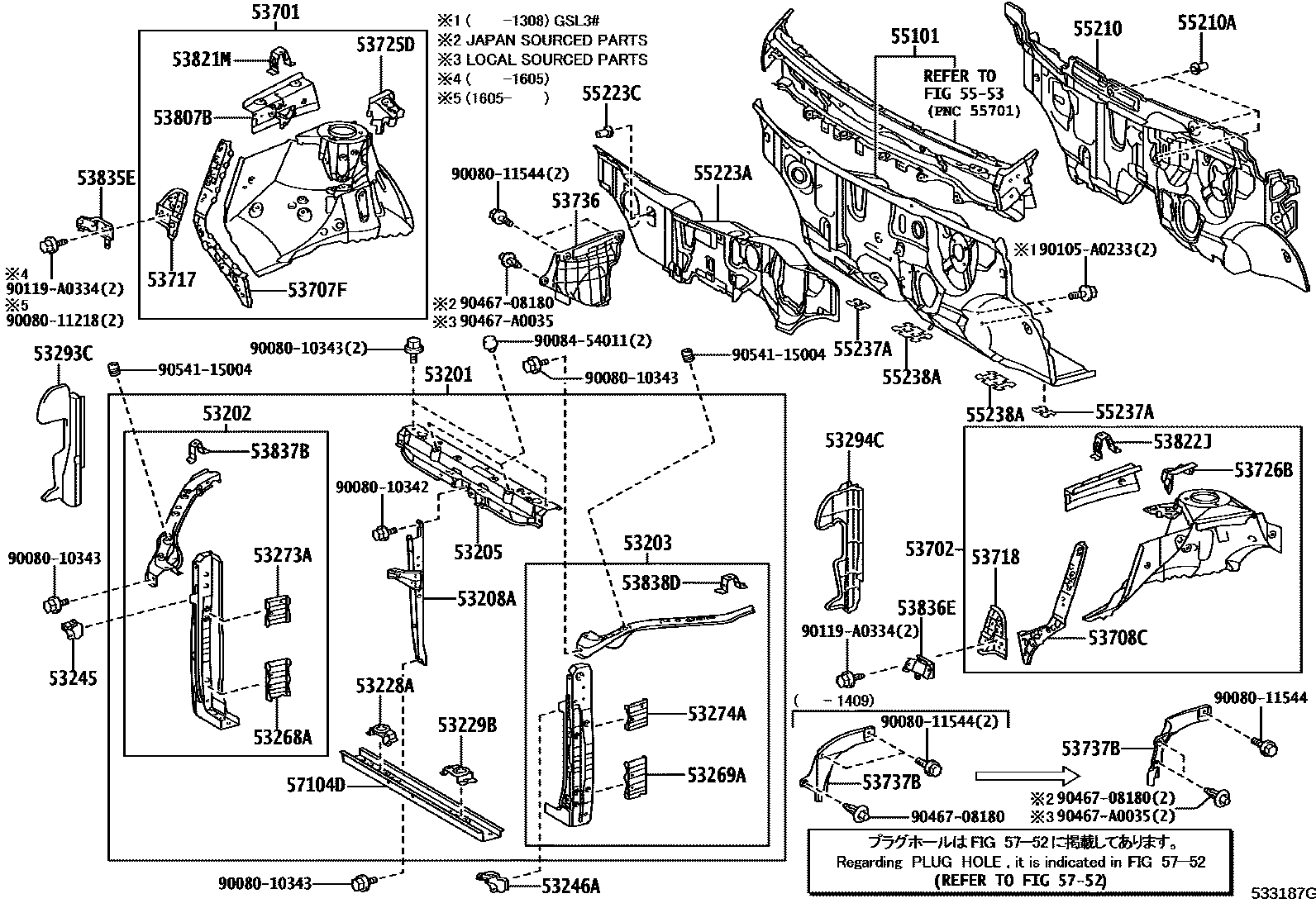

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53228ABRACKET, RADIATOR MOUNTING, LOWER NO.1
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53245BRACKET, HEADLAMP, RH
53246ABRACKET, HEADLAMP MOUNTING, UPPER LH
53268AREINFORCEMENT, RADIATOR MOUNTING, RH
53269AREINFORCEMENT, RADIATOR MOUNTING, LH
53273AREINFORCEMENT, RADIATOR SUPPORT, RH
53274AREINFORCEMENT, RADIATOR SUPPORT, LH
53293CDEFLECTOR, RADIATOR SIDE, RH
53294CDEFLECTOR, RADIATOR SIDE, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53717PLATE, FENDER APRON, RH
53718PLATE, FENDER APRON, LH
53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH
53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53821MBRACKET, FRONT FENDER, REAR NO.1 RH
53822JBRACKET, FRONT FENDER, REAR NO.1 LH
53835EBRACE, FRONT FENDER TO APRON, RH
53836EBRACE, FRONT FENDER TO APRON, LH
53837BBRACKET, FRONT SIDE PANEL, NO.2
53838DBRACKET, FRONT SIDE PANEL, NO.2 LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55223CCLIP
55237APLATE, DASH PANEL INSULATOR, NO.1
55238APLATE, DASH PANEL INSULATOR, NO.2
5553
57104DMEMBER SUB-ASSY, FRONT CROSS
5752
9008010342
main90080-10342
9008010343
main90080-10343
9008011218
main90080-11218
9008011544
main90080-11544
9008454011
main90084-54011
90105A0233
main90105-A0233
90119A0334
main90119-A0334
9046708180
main90467-08180
90467A0035
main90467-A0035
9054115004
main90541-15004
52 parts on this diagram · 2 diagrams in section
