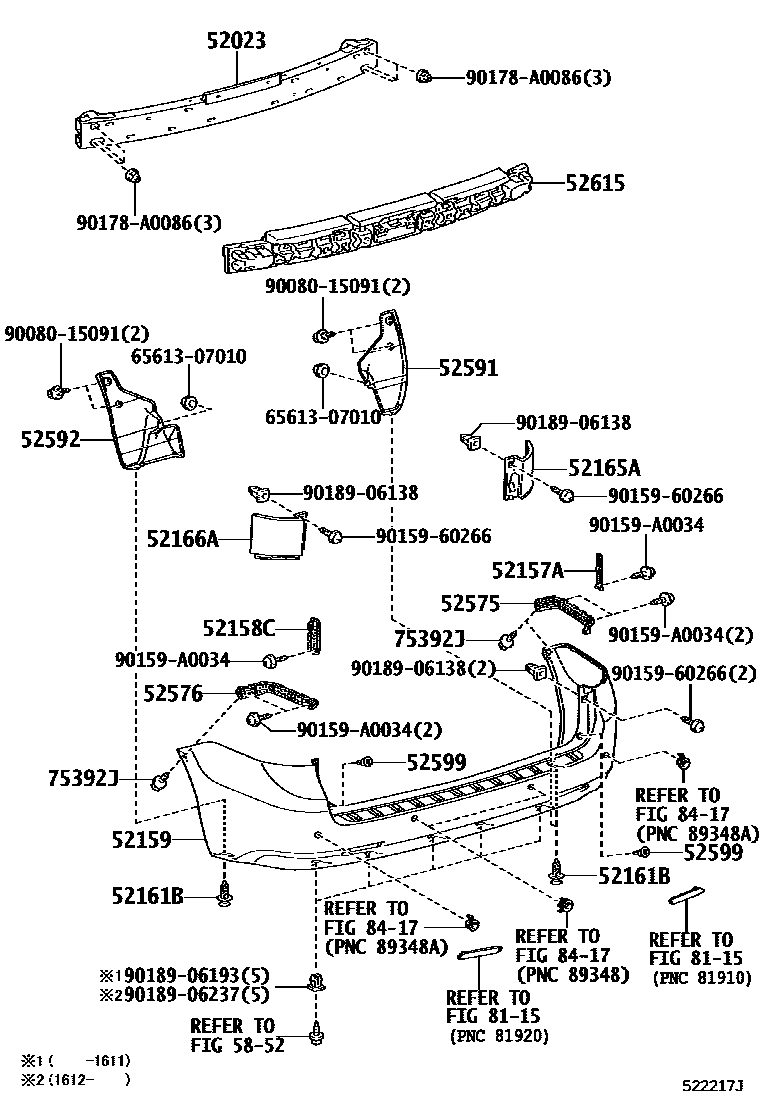

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-08010iGSL3#201711-202009

main52023-08020iASL30,GSL3#201001-201711

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-08010iGSL3#201001-202009

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-08010iASL30;GSL35..STD201001-202009

52159COVER, REAR BUMPER

main52159-08902iGSL35..LE,XLE;GSL30,33..LE,STD,XLE201001-201711

PAINT REQ.

main52159-08902iGSL3#..LE,STD,XLE201711-202009

main52159-08903iGSL30,35..07S..XLE201001-201711

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(REAR ONLY)

main52159-08903iGSL30,35..XLE201001-201711

PAINT REQ.,CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52159-08903iASL30..07S201005-201308

PAINT REQ.,LEATHER PACKAGE&CLEARANCE & BACK SONAR-WITH(REAR ONLY)

main52159-08905iGSL30..SE201005-201711

PAINT REQ.

main52159-08905iGSL30,35..SE201711-202009

main52159-08906iGSL30,35..07S..XLE201711-201904

CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52159-08906iGSL30,35..07S..XLE201904-202009

HIGH GRADE PACKAGE&CLEARANCE & BACK SONAR-WITH(FRONT & REAR)

main52159-08906iGSL30,35..XLE201711-202009

CLEARANCE & BACK SONAR-WITH(REAR ONLY)

main52159-08908iGSL30,35..SE201808-202009

CLEARANCE & BACK SONAR-WITH(REAR ONLY)

main52159-08908iGSL30,35..SE201904-202009

SPECIAL EDITION&CLEARANCE & BACK SONAR-WITH(REAR ONLY)

52161BPIECE, REAR BUMPER

main52161-02020iGSL3#201001-202009

52165ACOVER, REAR BUMPER, UPR RH

main52165-08900iASL30;GSL35..STD201001-201711

PAINT REQ.

main52165-08900iGSL3#201711-202009

52166ACOVER, REAR BUMPER, UPR LH

main52166-08900iASL30;GSL35..STD201001-201711

PAINT REQ.

main52166-08900iGSL3#201711-202009

52575RETAINER, REAR BUMPER SIDE, RH

main52575-08010iGSL30,33;GSL35..LE,XLE201001-202009

52576RETAINER, REAR BUMPER SIDE, LH

main52576-08010iGSL3#201001-202009

52591SEAL, REAR BUMPER SIDE, RH

main52591-08020iGSL3#..LE,STD,XLE201001-202009

main52591-08030iGSL30,35..SE201005-202009

52592SEAL, REAR BUMPER SIDE, LH

main52592-08020iGSL35..LE,XLE;GSL30,33..LE,STD,XLE201001-202009

main52592-08030iGSL30..SE201005-202009

52599STOPPER, REAR BUMPER, UPPER

main52599-08010iASL30;GSL35..STD201001-202009

52615ABSORBER, REAR BUMPER ENERGY

main52615-08030iGSL3#..LE,STD,XLE201001-201607

sub52615-08031

main52615-08031iGSL3#..LE,STD,XLE201608-202009

main52615-08040iGSL30..SE201005-201311

sub52615-08041

main52615-08041iGSL30..SE201312-201807

sub52615-08042

main52615-08042iGSL30,35..SE201808-202009

5852

75392JRETAINER, OUTSIDE MOULDING

main75392-42030iGSL30,33;GSL35..LE,XLE201005-202009

8115

8417

6561307010STRIP, SIDE GATE HINGE, INSIDE

main65613-07010

9008015091

main90080-15091

9015960266

main90159-60266

90159A0034

main90159-A0034

90178A0086

main90178-A0086

9018906138

main90189-06138

9018906193

main90189-06193

9018906237

main90189-06237

25 parts on this diagram · 3 diagrams in section
