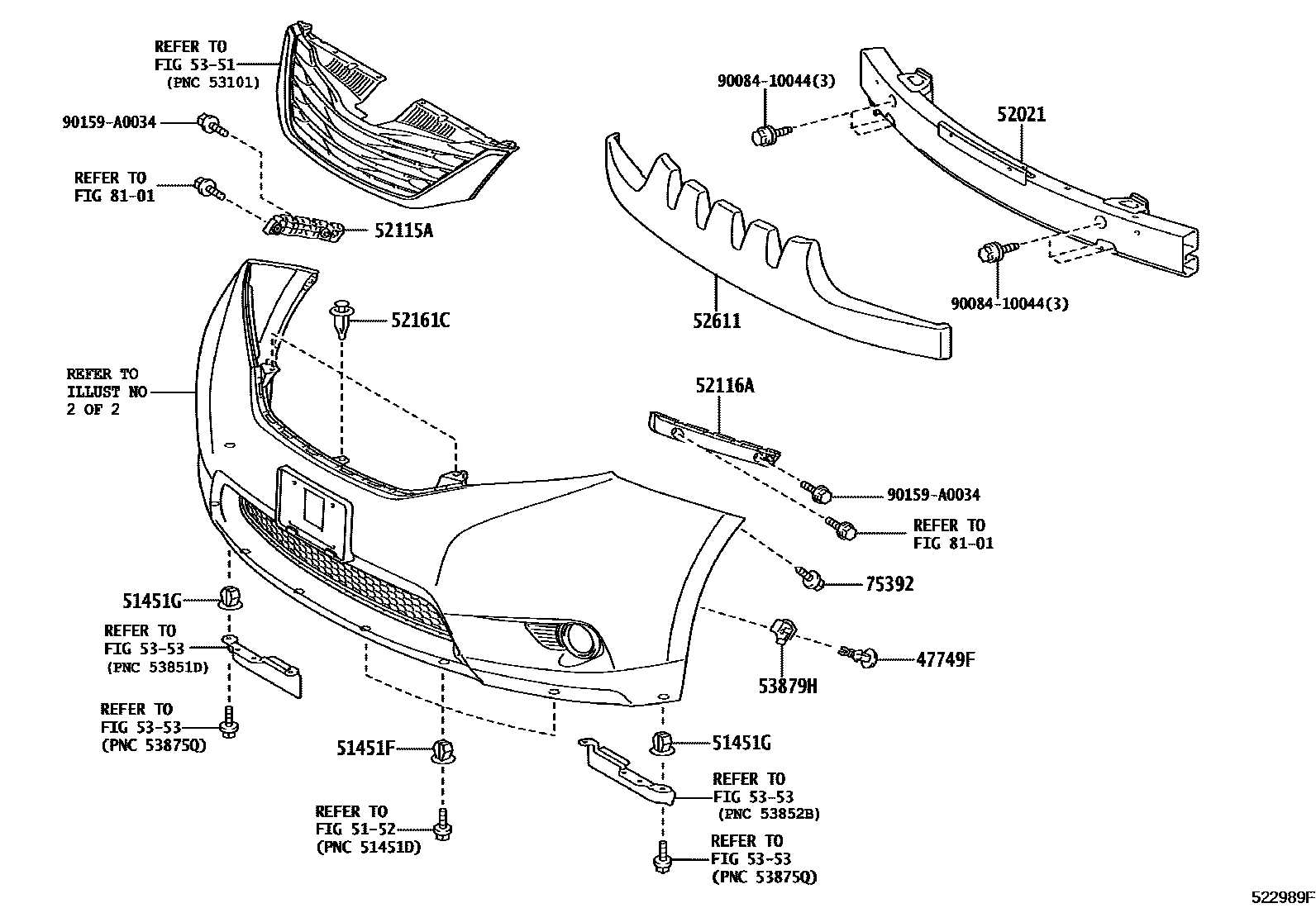

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

47749FCLIP, PIN HOLD

main47749-06010iGSL3#201508-202009

main47749-08010iASL30,GSL3#201212-201507

main47749-58010iASL30,GSL3#201001-201211

51451FGROMMET, NO.1

main90189-06193iASL30,GSL3#201001-201611

main90189-06237iGSL3#201612-202009

51451GGROMMET, NO.2

main90189-06193iGSL3#201001-201611

main90189-06237iGSL3#201612-202009

5152

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-08020iASL30,GSL3#201001-201409

main52021-08030iGSL3#201508-202009

main52021-08040iGSL3#201409-201508

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-08020iASL30;GSL35..STD201001-202009

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-08010iGSL30,33;GSL35..LE,XLE201001-202009

52161CPIECE, FRONT BUMPER

main52161-02020iASL30;GSL35..STD201001-202009

52611ABSORBER, FRONT BUMPER ENERGY

main52611-08030iASL30;GSL35..STD201001-201409

main52611-08040iGSL30..SE201005-201409

main52611-08050iGSL3#..LE,STD,XLE201409-201711

main52611-08060iGSL30..SE201409-201711

main52611-08070iGSL3#201711-202009

5351

5353

53879HRETAINER, FRONT FENDER LINER

main53879-50020iGSL3#201508-202009

main53879-58010iGSL3#201001-201507

75392RETAINER, OUTSIDE MOULDING

main75392-42030iASL30;GSL35..STD201005-202009

8101

9008410044

main90084-10044

90159A0034

main90159-A0034

16 parts on this diagram · 12 diagrams in section
