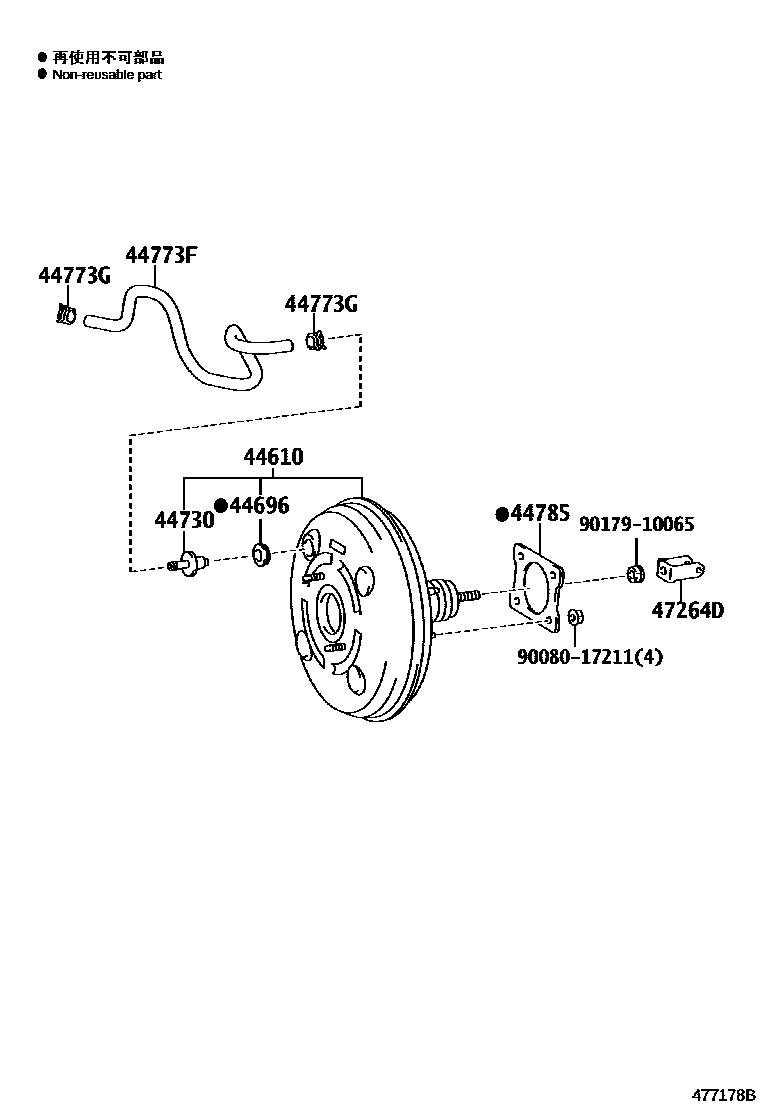

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-08070iGSL3#201001-201002

sub44610-08071

main44610-08071iGSL35..STD201003-201608

main44610-08080iASL30201005-201308

main44610-08090iGSL3#201608-202009

44696GROMMET, CHECK VALVE

main90080-48071iGSL35..STD201001-202009

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20170iASL30201005-201308

NO.1

main44730-22150iGSL3#201001-201003

main44730-60070iGSL35..STD201003-202009

main44730-60070iASL30201005-201308

NO.2

44773FHOSE, UNION TO CHECK VALVE

main44773-08040iGSL35..STD201001-201608

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iGSL3#201001-201608

44785GASKET, BRAKE BOOSTER

main44785-02060iGSL3#201001-202009

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-06040iGSL3#201608-201808

main47264-06040iGSL3#201808-202009

(L)

main47264-06040iASL30,GSL3#201206-201608

W/MARK

main47264-48020iGSL3#201001-201003

main47264-48020iASL30,GSL3#201003-201206

W/O MARK

main47264-48020iGSL3#201808-202009

(J)

9008017211

main90080-17211

9017910065

main90179-10065

9 parts on this diagram · 3 diagrams in section
