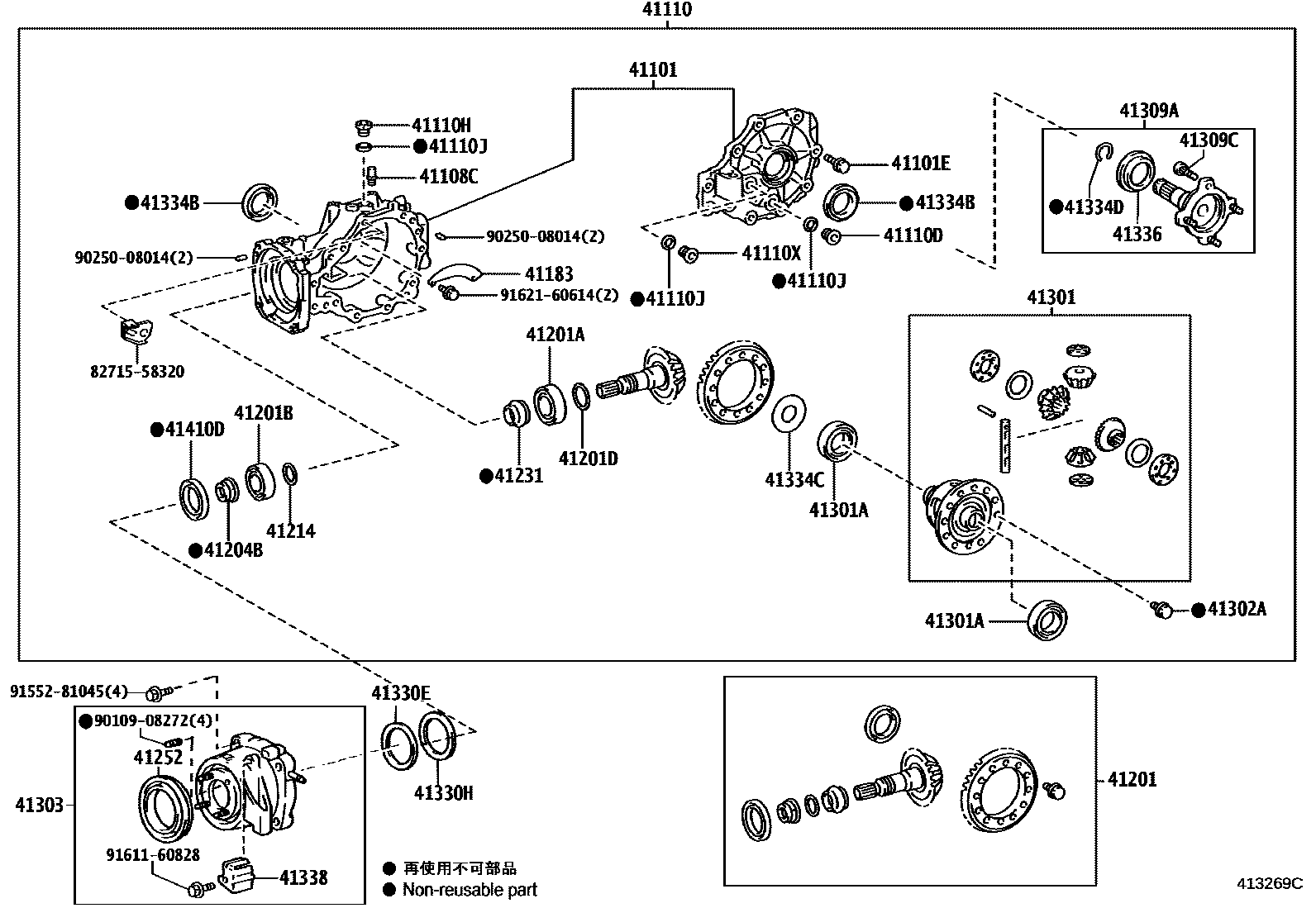

REAR AXLE HOUSING & DIFFERENTIAL
41101EBOLT (FOR REAR DIFFERENTIAL CARRIER)
41108CPLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER)
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:18=2.277
41110DPLUG (FOR REAR DIFFERENTIAL DRAIN)
41110HPLUG (FOR REAR DIFFERENTIAL FILLER)
41110JGASKET (FOR REAR DIFFERENTIAL FILLER PLUG)
41183DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:18=2.277
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
T=1.70,MARK 41
T=1.71,MARK 42
T=1.72,MARK 43
T=1.73,MARK 44
T=1.74,MARK 45
T=1.75,MARK 46
T=1.76,MARK 47
T=1.77,MARK 48
T=1.78,MARK 49
T=1.79,MARK 50
T=1.80,MARK 51
T=1.81,MARK 52
T=1.82,MARK 53
T=1.83,MARK 54
T=1.84,MARK 55
T=1.85,MARK 56
T=1.86,MARK 57
T=1.87,MARK 58
T=1.88,MARK 59
T=1.89,MARK 60
T=1.90,MARK 61
T=1.91,MARK 62
T=1.92,MARK 63
T=1.93,MARK 64
T=1.94,MARK 65
T=1.95,MARK 70
T=1.96,MARK 71
T=1.97,MARK 72
T=1.98,MARK 73
T=1.99,MARK 74
T=2.00,MARK 75
T=2.01,MARK 76
T=2.02,MARK 77
T=2.03,MARK 78
T=2.04,MARK 79
T=2.05,MARK 80
T=2.06,MARK 81
T=2.07,MARK 82
T=2.08,MARK 83
T=2.09,MARK 84
T=2.10,MARK 85
T=2.11,MARK 86
T=2.12,MARK 87
T=2.13,MARK 88
T=2.14,MARK 89
T=2.15,MARK 90
T=2.16,MARK 91
T=2.17,MARK 92
T=2.18,MARK 93
T=2.19,MARK 94
T=2.20,MARK 95
T=2.21,MARK 96
T=2.22,MARK 97
T=2.23,MARK 98
T=2.24,MARK 99
T=2.25,MARK 00
41204BNUT (FOR REAR DRIVE PINION)
OD=41.6
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301CASE SUB-ASSY, REAR DIFFERENTIAL
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302ABOLT(FOR REAR DIFFERENTIAL CASE)
41303COUPLING SUB-ASSY, ELECTRO MAGNETIC CONTROL
41309ASHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR
41309CBOLT (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41330EWASHER, CONICAL SPRING (FOR TRANSMISSION COUPLING)
41330HSPACER (FOR TRANSMISSION COUPLING)
41334CWASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=1.75,MARK 75
T=1.78,MARK 76
T=1.81,MARK 77
T=1.84,MARK 78
T=1.87,MARK 79
T=1.90,MARK 80
T=1.93,MARK 81
T=1.96,MARK 82
T=1.99,MARK 83
T=2.02,MARK 84
T=2.05,MARK 85
T=2.08,MARK 86
T=2.11,MARK 88
T=2.14,MARK 89
T=2.17,MARK 90
T=2.20,MARK 91
T=2.23,MARK 92
T=2.26,MARK 93
T=2.29,MARK 94
T=2.32,MARK 95
T=2.35,MARK 96
T=2.38,MARK 97
T=2.41,MARK 98
T=2.44,MARK 99
T=2.47,MARK 00
T=2.50,MARK 01
T=2.53,MARK 02
T=2.56,MARK 03
T=2.59,MARK 04
T=2.62,MARK 05
T=2.65,MARK 06
T=2.68,MARK 07
T=2.71,MARK 08
T=2.74,MARK 09
T=2.77,MARK 10
T=2.80,MARK 11
T=2.83,MARK 12
T=2.86,MARK 13
T=2.89,MARK 14
41334DRING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
T=2.2
41336COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT)
41338BRACKET, CONNECTOR CLAMP
41410DSEAL, OIL DIAPHRAGM
8271558320BRACKET,WIRING HARNESS CLAMP
main82715-58320
9010908272
main90109-08272
9025008014
main90250-08014
9155281045
main91552-81045
9161160828
main91611-60828
9162160614
main91621-60614
37 parts on this diagram · 2 diagrams in section
