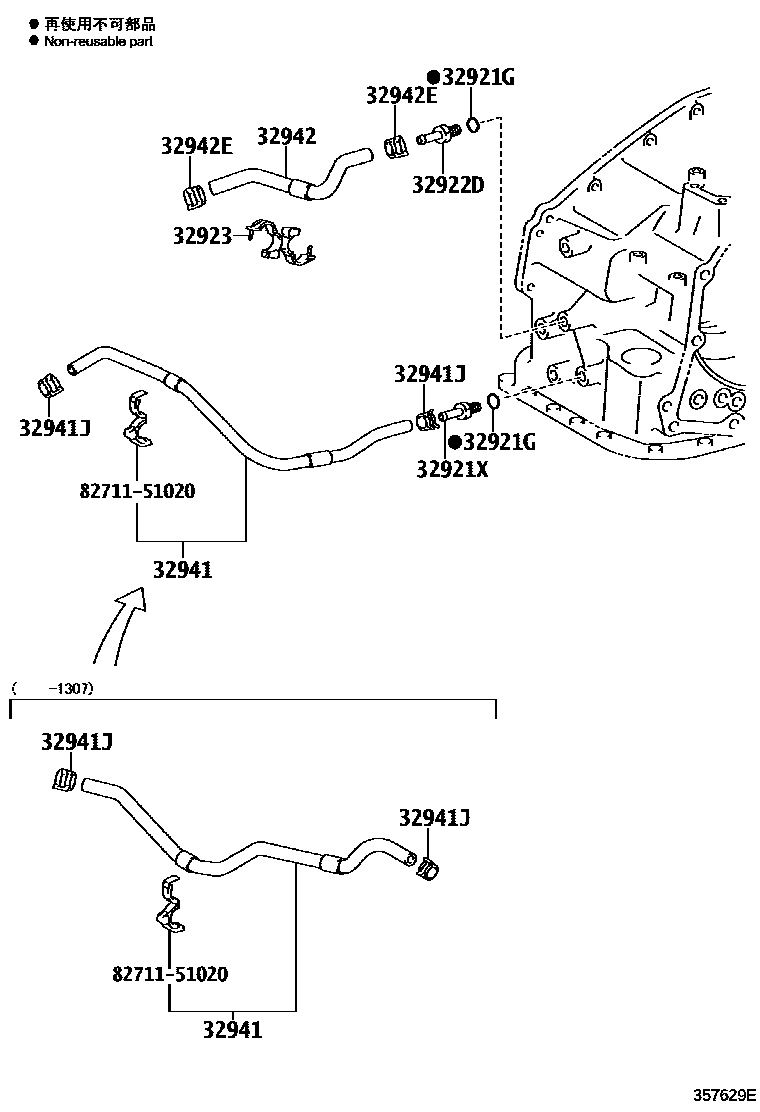

OIL COOLER & TUBE (ATM)

0001 1U660E,U660F,U760E 0002 1UA80E,UA80F 0003 1UA80E,UA80F

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iASL30,GSL35201001-201108

main90301-11031iASL30;GSL35..STD201108-202009

main90301-A0022iGSL35201501-201608

TRANSAXLE NO.=3XXXXX

main90301-A0022iGSL30,33201001-201608

32921XUNION OR ELBOW, OIL COOLER INLET

main90404-14027iGSL3#201307-201608

main90404-A0002iGSL30,33201411-201606

main90407-14032iASL30,GSL35201001-201309

32922DUNION OR ELBOW, OIL COOLER OUTLET

main90404-14027iGSL30,33;GSL35..LE,XLE201001-201608

main90404-A0002iGSL3#201411-201606

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main16581-36060iGSL3#201702-201906

main32923-45010iGSL3#201001-201701

main90464-00801iGSL3#201906-202009

32941HOSE, OIL COOLER INLET, NO.1

main32930-08010iASL30,GSL3#201001-201307

main32930-08020iGSL30,33;GSL35..LE,XLE201307-201408

sub32930-08021

main32930-08021iGSL3#201409-201608

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iGSL30,33;GSL35..LE,XLE201004-201608

(J)

main90466-16004iGSL3#201001-201004

main90466-A0014iGSL30,33;GSL35..LE,XLE201004-201608

(L)

32942HOSE, OIL COOLER OUTLET, NO.1

main32930-08040iGSL3#201608-201701

NO.1

sub32930-08041

main32930-08041iGSL3#201702-202009

NO.1

main32942-08020iASL30,GSL3#201001-201307

main32942-08030iASL30;GSL35..STD201307-201408

sub32942-08031

main32942-08031iGSL3#201409-201608

main32942-08050iGSL3#201608-201701

NO.2

sub32942-08051

main32942-08051iGSL3#201702-201906

NO.2

main32942-08052iGSL3#201906-202009

NO.2

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-16004iGSL30,33;GSL35..LE,XLE201004-201608

(J)

main90466-16004iGSL3#201001-201004

main90466-A0014iGSL3#201608-202009

main90466-A0014iASL30;GSL35..STD201004-201608

(L)

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020

9 parts on this diagram · 3 diagrams in section
