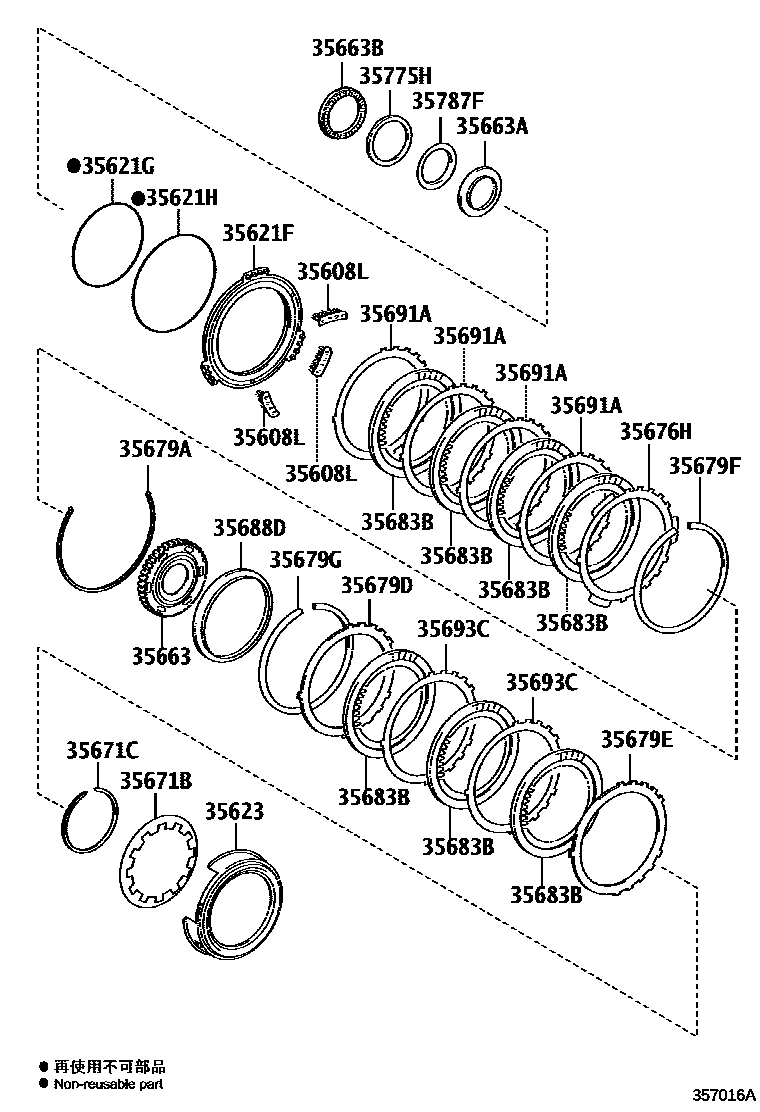

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
TRANSAXLE NO.=3XXXXX
35621GRING, O (FOR BRAKE PISTON INNER)
35621HRING, O (FOR BRAKE PISTON OUTER)
35663ABEARING, THRUST NEEDLE ROLLER, NO.1
35671BSPRING, BRAKE PISTON RETURN
35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
TRANSAXLE NO.=3XXXXX
35676HFLANGE, BRAKE, NO.1
T=3.0,MARK 30,TRANSAXLE NO.=3XXXXX
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35,TRANSAXLE NO.=3XXXXX
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
T=3.6,MARK 36
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
TRANSAXLE NO.=3XXXXX
35679EFRANGE, BRAKE, NO.3
T=3.8,MARK 38,TRANSAXLE NO.=3XXXXX
T=3.9,MARK 39
T=4.0,MARK 40
T=4.1,MARK 41
T=4.2,MARK 42
T=4.3,MARK 43
T=3.8,MARK 38
T=3.9,MARK 39
T=4.0,MARK 40
T=4.1,MARK 41
T=4.2,MARK 42
T=4.3,MARK 43
T=4.4,MARK 44
T=4.5,MARK 45
35679FRING, SNAP(FOR BRAKE FLANGE)
35679GRING, SNAP (FOR RAKE FLANGE NO.3)
35683BDISC, BRAKE, NO.3
35688DSTOPPER, BRAKE SNAP RING
35691APLATE, BRAKE, NO.1
35693CPLATE, BRAKE, NO.3
35787FRACE, THRUST BEARING, NO.2
22 parts on this diagram · 3 diagrams in section
