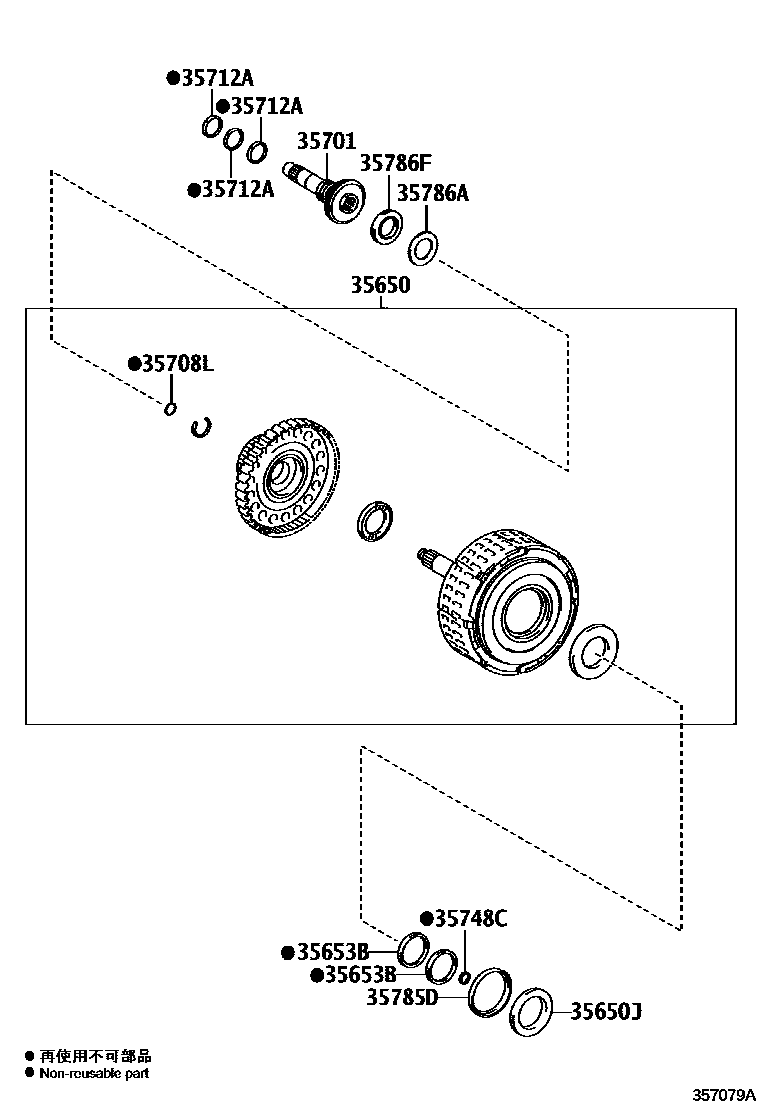

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1U760E 0002 1U660E,U660F 0003 1UA80E,UA80F

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-08010iGSL30,33201001-201409

main35650-33070iGSL35..LE,XLE201001-201409

main35650-33090iASL30201005-201308

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48006iGSL35..LE,XLE201001-201310

main90374-48009iGSL35201310-201409

main90374-A0032iGSL30,33201211-201409

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010×2iASL30;GSL35..STD201001-201308

main35653-48020×2iGSL3#201608-201711

35701SHAFT SUB-ASSY, INPUT

main35711-33060iGSL35..STD201001-201308

main35711-33080iASL30201005-201308

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11027iASL30,GSL35201001-201108

main90301-11032iGSL35..LE,XLE201108-201409

main90301-47008iGSL3#201711-202009

NO.1

main90301-50004iGSL3#201608-201711

NO.2

main90301-A0024iGSL30,33201001-201409

35712ARING, INPUT SHAFT OIL SEAL

main35712-0R010×3iGSL30,33201212-201305

main35712-33010×3iGSL30,33201001-201212

sub35712-33020

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASL30;GSL35..STD201001-201308

35785DRACE, THRUST BEARING, NO.4

main35785-06010iGSL30,33201211-201409

main35785-33020iGSL30,33201001-201211

main35785-48020iGSL35201409-201501

TRANSAXLE NO.=2XXXXX

35786ARACE, THRUST BEARING, NO.1

main35786-07010iGSL35201501-201608

TRANSAXLE NO.=3XXXXX

main35786-33010iGSL35201409-201501

TRANSAXLE NO.=2XXXXX

main35786-48020iGSL3#201711-202009

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29005iGSL35201409-201501

TRANSAXLE NO.=2XXXXX

main90374-A0025iGSL30,33201001-201211

main90374-A0040iGSL30,33201211-201409

10 parts on this diagram · 3 diagrams in section
