ALTERNATOR

0001 112V 150A 0002 112V 150A 0003 112V 180A

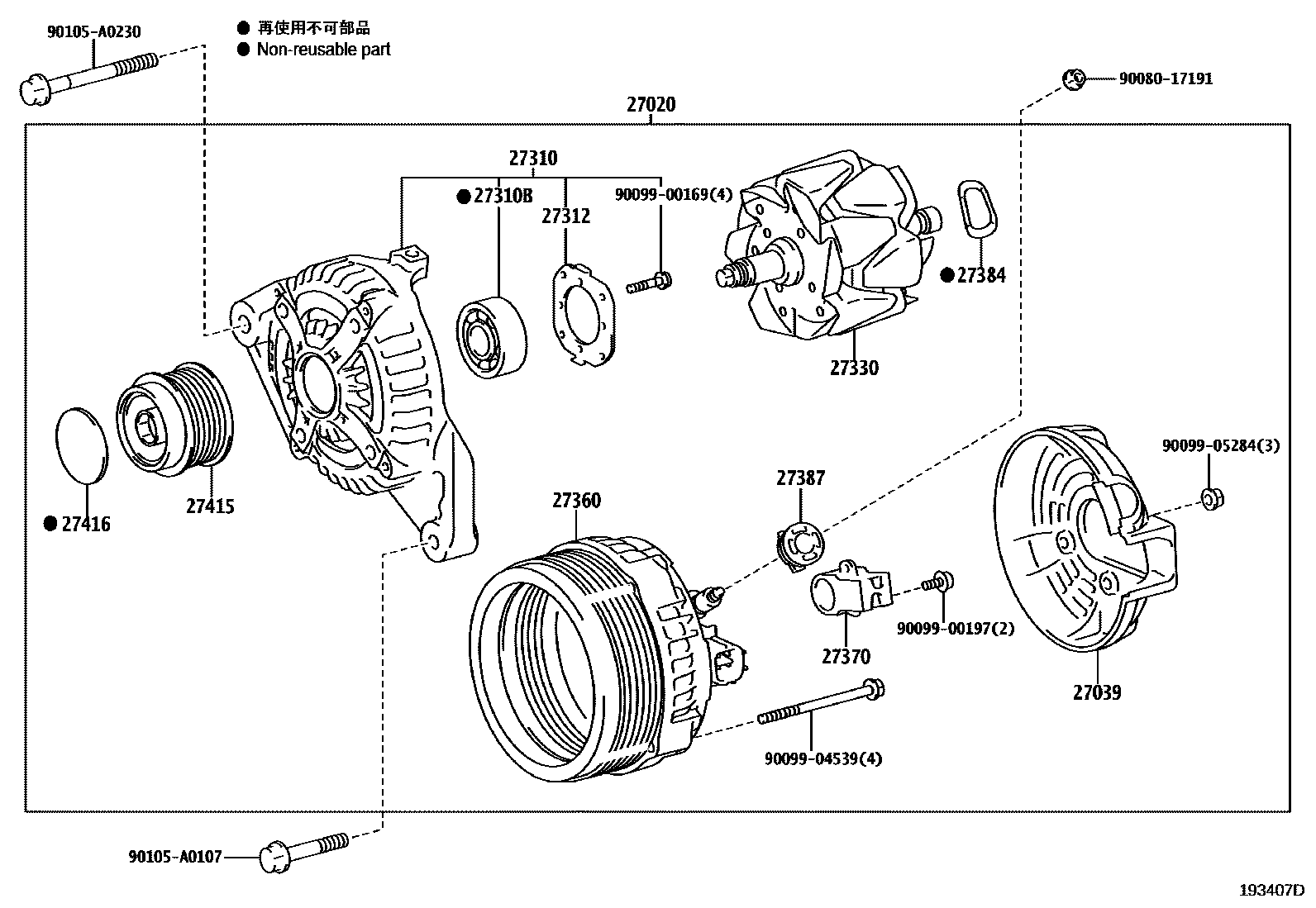

27020ALTERNATOR ASSY

main27060-0P241i2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE201001-201608

12V 150A

main27060-0P420i2GRFKS..GSL3#201608-202009

12V 180A

sub27060-31410

main27060-0V080i1ARFE..ASL30201005-201308

12V 150A

sub27060-36061

27039COVER, ALTERNATOR REAR END

main27039-0P470i2GRFKS..GSL3#201608-202009

main27039-0T040i2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE201001-201608

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-0P140i2GRFE..GSL3#201001-201608

main27310-0P470i2GRFKS..GSL3#201608-202009

main27310-0V010i1ARFE..ASL30201005-201308

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033i2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE201001-201608

main90099-10241i2GRFKS..GSL3#201608-202009

27312PLATE, RETAINER

main27312-42010i2GRFKS..GSL3#201608-202009

main27312-72100i1ARFE..ASL30;2GRFE..GSL35..STD201001-201608

27330ROTOR ASSY, ALTERNATOR

main27330-0A110i1ARFE..ASL30;2GRFE..GSL35..STD201001-201608

main27330-0P470i2GRFKS..GSL3#201608-202009

27360COIL ASSY, ALTERNATOR

main27360-0P240i2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE201001-201608

sub27360-31370

main27360-0P470i2GRFKS..GSL3#201608-202009

main27360-0V030i1ARFE..ASL30201005-201308

sub27360-36091

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-0P020i1ARFE..ASL30;2GRFE..GSL35..STD201001-201608

main27370-0V160i2GRFKS..GSL3#201608-202009

27384WASHER

main27384-0A020i2GRFE..GSL3#201001-201608

main27384-38130i2GRFKS..GSL3#201608-202009

27387INSULATOR, TERMINAL

main27387-0V060i2GRFE..GSL3#201010-201608

main27387-20130i1ARFE,2GRFE..ASL30,GSL3#201001-201010

main27387-38130i2GRFKS..GSL3#201608-202009

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P030i2GRFKS..GSL3#201608-202009

main27415-0W020i1ARFE..ASL30201005-201308

sub27415-0W021

main27415-0W130i2GRFE..GSL3#201001-201306

sub27415-0W131

main27415-0W131i2GRFE..GSL35..STD201307-201608

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1ARFE..ASL30;2GRFE..GSL35..STD201001-202009

9008017191

main90080-17191

9009900169

main90099-00169

9009900197

main90099-00197

9009904539

main90099-04539

9009905284

main90099-05284

90105A0107

main90105-A0107

90105A0230

main90105-A0230

19 parts on this diagram · 3 diagrams in section
