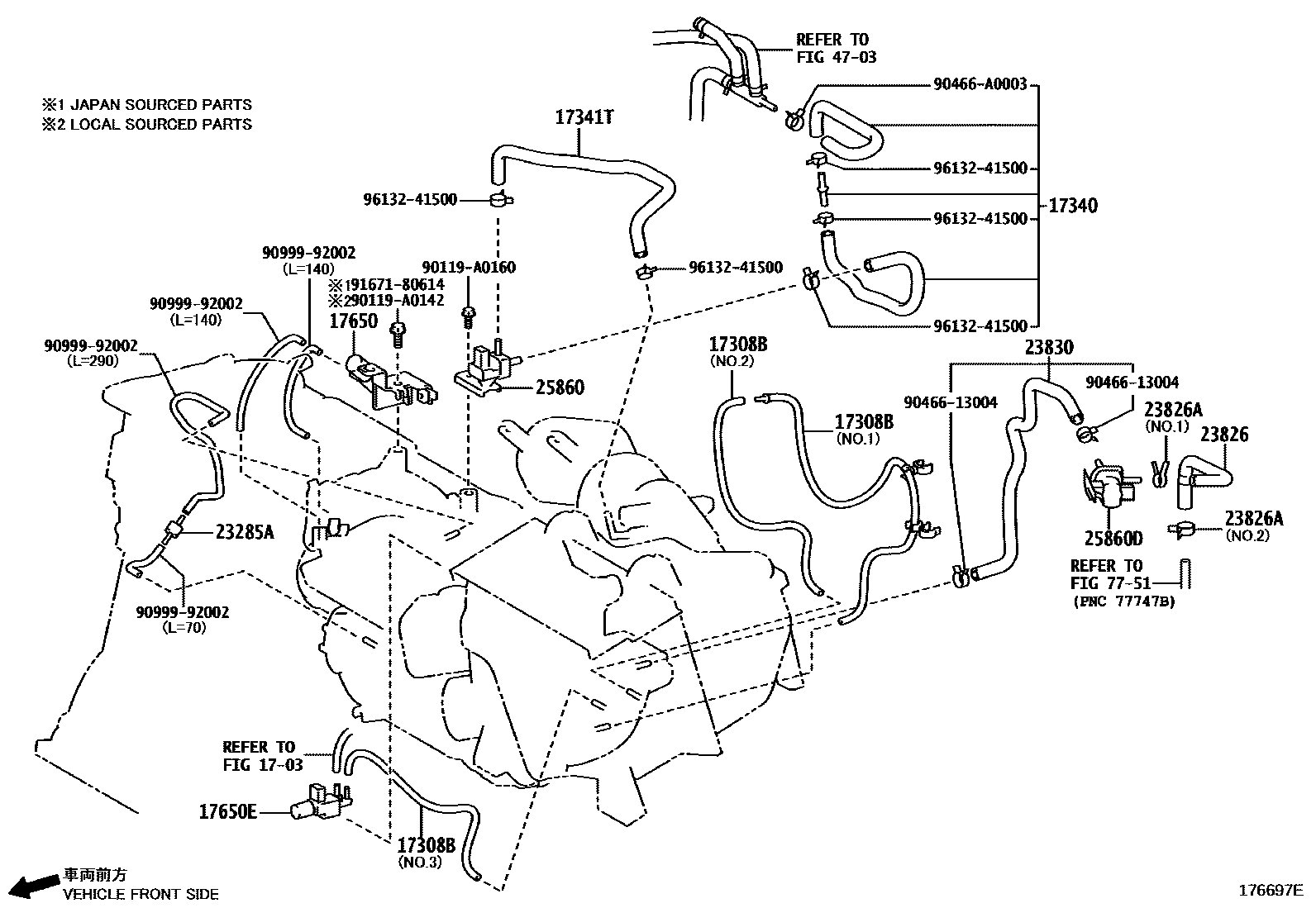

VACUUM PIPING
1703
17308HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
NO.2
NO.1
17308BHOSE SUB-ASSY, VACUUM
NO.2:REFER ILLUST.
NO.3:REFER ILLUST.
NO.1:REFER ILLUST.
NO.1
NO.2
17340HOSE ASSY, VACUUM SWITCHING VALVE
17341THOSE, AIR, NO.1
17650VALVE ASSY, VACUUM SWITCHING
*212
*107
17650EVALVE, VACUUM SWITCHING
23285AVALVE, CHECK, NO.1
*107
*212
23826HOSE, FUEL VAPOR FEED, NO.1
23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
23830HOSE ASSY, FUEL VAPOR FEED, NO.2
25860VALVE ASSY, VACUUM SWITCHING, NO.1
(L),NO.1
(J),NO.1
NO.1
NO.2
25860DVALVE ASSY, VACUUM SWITCHING, NO.2
4703
7751
90119A0142
main90119-A0142
90119A0160
main90119-A0160
9046613004
main90466-13004
90466A0003
main90466-A0003
9099992002
main90999-92002
9167180614
main91671-80614
9613241500
main96132-41500
22 parts on this diagram · 3 diagrams in section
