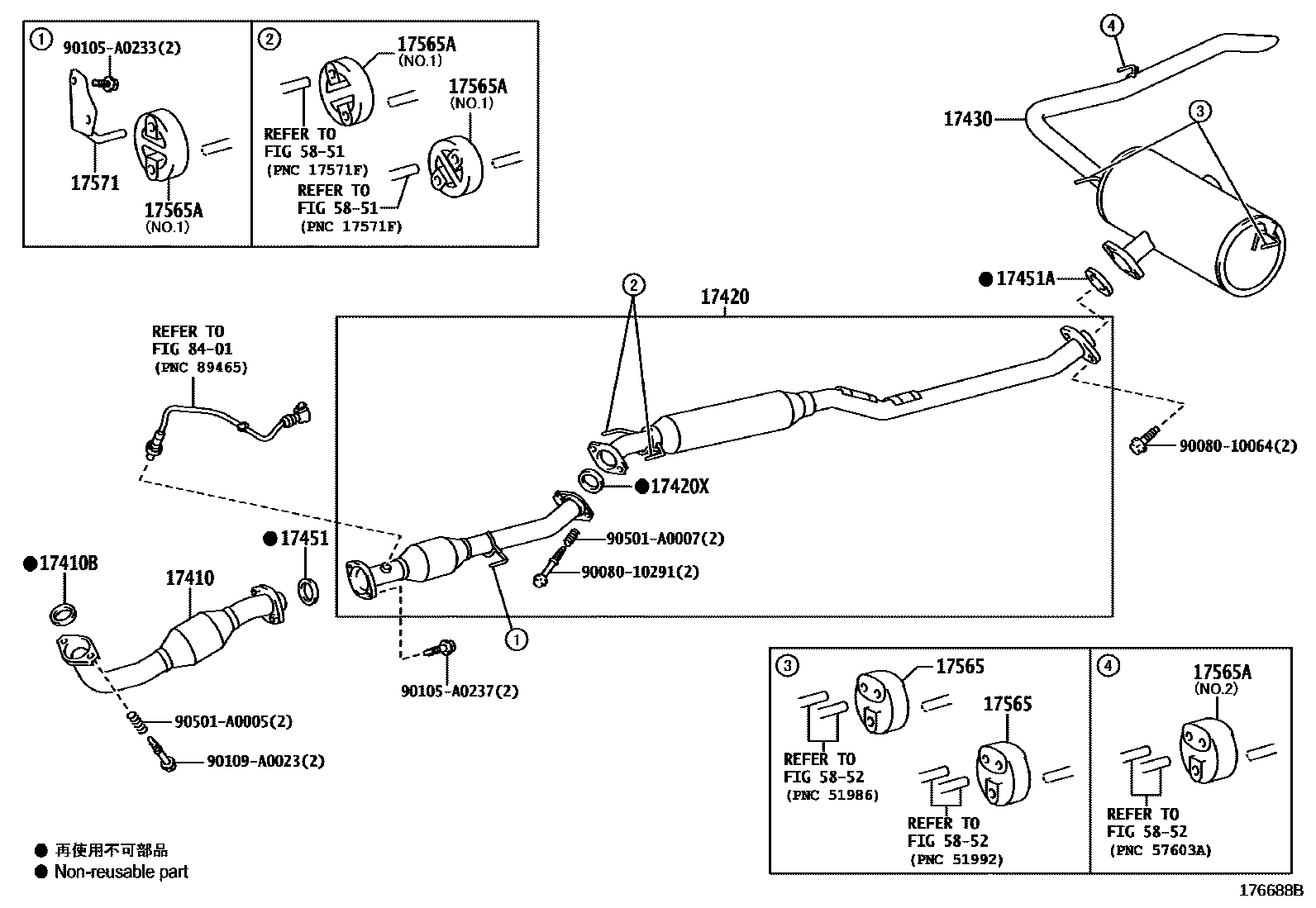

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0P230i2GRFE..GSL35..LE,XLE201001-201409

main17410-0P231i2GRFE..GSL35201409-201608

main17410-0P280i2GRFE..GSL30,33201001-201409

main17410-0P281i2GRFE..GSL30,33201409-201608

main17410-0P581i2GRFKS..GSL35201608-201909

sub17410-0P582

main17410-0P582i2GRFKS..GSL35201910-202009

main17410-0P591i2GRFKS..GSL30,33201608-202009

main17410-0V080i1ARFE..ASL30201005-201308

17410BGASKET, EXHAUST PIPE

main17451-0V020i1ARFE..ASL30201005-201308

sub17451-75011

main90080-43036i2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE201001-202009

17420PIPE ASSY, EXHAUST, CENTER

main17420-0P170i2GRFE..GSL30,33201001-201109

main17420-0P180i2GRFE..GSL35201001-201109

main17420-0P300i2GRFE..GSL30,33201109-201409

main17420-0P301i2GRFE..GSL30,33201409-201608

main17420-0P310i2GRFE..GSL35..LE,XLE201109-201608

main17420-0P351i2GRFKS..GSL35201608-202009

main17420-0P471i2GRFKS..GSL30,33201608-202009

main17420-0V080i1ARFE..ASL30201005-201308

17420XGASKET, EXHAUST PIPE, CENTER

main17451-0D140i2GRFE..GSL35..STD201001-201608

17430PIPE ASSY, EXHAUST, TAIL

main17430-0P240i2GRFE..GSL30,33..LE,STD,XLE201001-201608

main17430-0P250i2GRFE..GSL35..LE,XLE201001-201607

main17430-0P260i2GRFE..GSL30..SE201005-201608

main17430-0P511i2GRFKS..GSL35201608-201909

sub17430-0P512

main17430-0P512i2GRFKS..GSL35..LE,XLE201910-202009

main17430-0P521i2GRFKS..GSL30,33..LE,STD,XLE201608-201909

sub17430-0P522

main17430-0P522i2GRFKS..GSL30,33..LE,STD,XLE201910-202009

main17430-0P531i2GRFKS..GSL30..SE201608-202009

main17430-0P610i2GRFKS..GSL35..SE201808-201909

main17430-0P611i2GRFKS..GSL35..SE201910-202009

main17430-0V080i1ARFE..ASL30201005-201308

17451GASKET, EXHAUST PIPE

main17451-0D140i2GRFKS..GSL3#201001-202009

main90080-43036i2GRFE..GSL35..LE,XLE201001-201608

main90917-06090i1ARFE..ASL30201005-201205

main90917-A6001i1ARFE..ASL30201206-201308

17451AGASKET, EXHAUST PIPE, NO.2

main90080-43026i2GRFE..GSL30,33;2GRFE..GSL35..LE,XLE201001-201712

main90917-A6002i2GRFKS..GSL3#201712-202009

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-0A180i2GRFE..GSL35..LE,XLE201001-202009

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0S010i1ARFE..ASL30201001-201103

NO.1

sub17565-0S011

main17565-0S011i2GRFE..GSL30,33201104-202009

NO.1

main17565-0S020i1ARFE,2GRFE..ASL30,GSL3#201001-201103

NO.2

sub17565-0S021

main17565-0S021i1ARFE..ASL30;2GRFE..GSL35..STD201104-202009

NO.2

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-0P140i2GRFE..GSL30,33201001-201409

main17571-0P150i2GRFE..GSL35..LE,XLE201001-201409

main17571-0P180i2GRFKS..GSL30,33201608-202009

main17571-0P210i2GRFE..GSL3#201409-201608

main17571-0P260i2GRFKS..GSL35201608-202009

main17571-0V020i1ARFE..ASL30201005-201308

5851

5852

8401

9008010064

main90080-10064

9008010291

main90080-10291

90105A0233

main90105-A0233

90105A0237

main90105-A0237

90109A0023

main90109-A0023

90501A0005

main90501-A0005

90501A0007

main90501-A0007

20 parts on this diagram · 5 diagrams in section
