CRANKSHAFT & PISTON

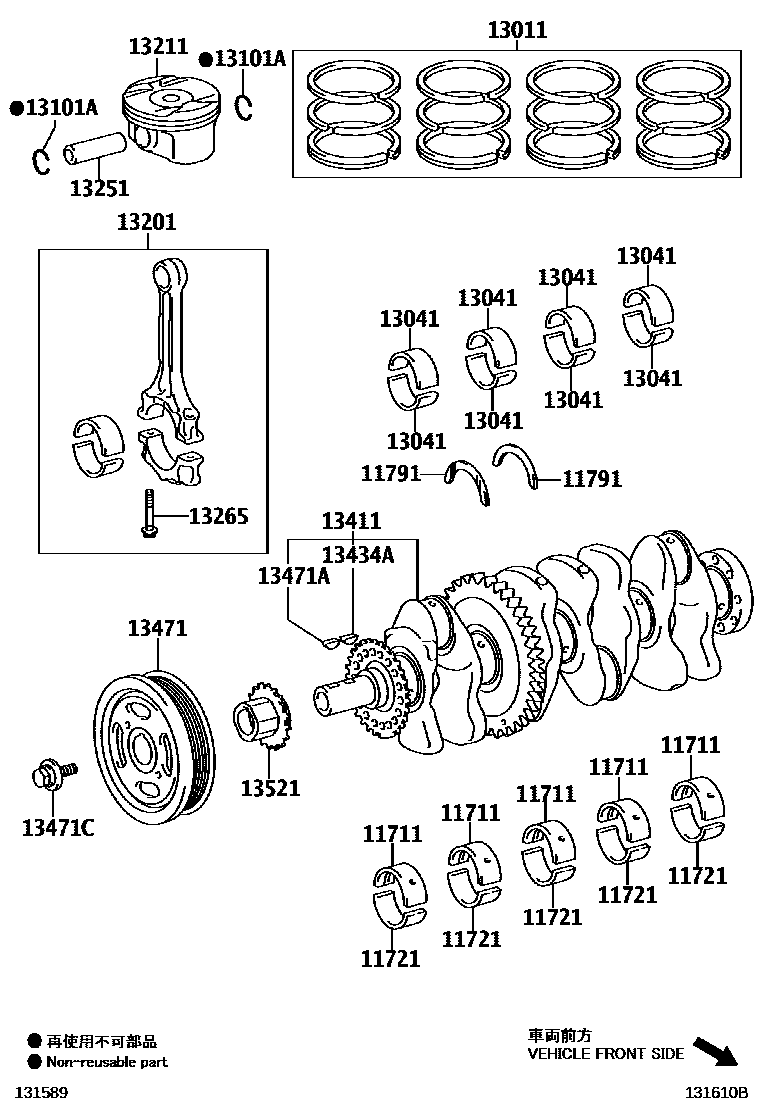

Parts diagram
11711BEARING, CRANKSHAFT
main11071-0P050-01i201001-201204
MARK1,NO.2,REFER R/M
sub11071-0P051
main11071-0P050-02i201001-201204
MARK2,NO.2,REFER R/M
sub11071-0P051
main11071-0P050-03i201001-201204
MARK3,NO.2,REFER R/M
sub11071-0P051
main11071-0P050-04i201001-201204
MARK4,NO.2,REFER R/M
sub11071-0P051
main11071-0P050-05i201001-201204
MARK5,NO.2,REFER R/M
sub11071-0P051
main11071-0P051-01i201204-201503
MARK1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-02i201204-201503
MARK2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-03i201204-201503
MARK3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-04i201204-201503
MARK4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-05i201204-201503
MARK5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-01i201503-201608
MARK 1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-02i201503-201608
MARK 2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-03i201503-201608
MARK 3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-04i201503-201608
MARK 4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-05i201503-201608
MARK 5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-A1i201705-202009
MARK UPPER 1 LOWER 1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-A1i201608-201705
MARK UPPER 1 LOWER 1,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-A2i201705-202009
MARK UPPER 1 LOWER 2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-A2i201608-201705
MARK UPPER 1 LOWER 2,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-B2i201608-201705
MARK UPPER 2 LOWER 2,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-B2i201705-202009
MARK UPPER 2 LOWER 2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-B3i201608-201705
MARK UPPER 2 LOWER 3,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-B3i201705-202009
MARK UPPER 2 LOWER 3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-C3i201608-201705
MARK UPPER 3 LOWER 3,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-C3i201705-202009
MARK UPPER 3 LOWER 3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-C4i201705-202009
MARK UPPER 3 LOWER 4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-C4i201608-201705
MARK UPPER 3 LOWER 4,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-D4i201608-201705
MARK UPPER 4 LOWER 4,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-D4i201705-202009
MARK UPPER 4 LOWER 4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-D5i201705-202009
MARK UPPER 4 LOWER 5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-D5i201608-201705
MARK UPPER 4 LOWER 5,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-E5i201608-201705
MARK UPPER 5 LOWER 5,NO.2,REFER R/M
sub11071-0P060
main11071-0P060-E5i201705-202009
MARK UPPER 5 LOWER 5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-31031-01i201204-201502
MARK1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-02i201204-201502
MARK2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-03i201204-201502
MARK3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-04i201204-201502
MARK4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-05i201204-201502
MARK5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-01i201503-201608
MARK 1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-02i201503-201608
MARK 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-03i201503-201608
MARK 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-04i201503-201608
MARK 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-05i201503-201608
MARK 5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-A1i201705-202009
MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-A2i201705-202009
MARK UPPER 1 LOWER 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-B2i201705-202009
MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-B3i201705-202009
MARK UPPER 2 LOWER 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-C3i201705-202009
MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-C4i201705-202009
MARK UPPER 3 LOWER 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-D4i201705-202009
MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-D5i201705-202009
MARK UPPER 4 LOWER 5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-E5i201705-202009
MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M
sub11071-31060
main11701-0P050-01i201001-201204
MARK1,NO.1,REFER R/M
sub11701-0P051
main11701-0P050-02i201001-201204
MARK2,NO.1,REFER R/M
sub11701-0P051
main11701-0P050-03i201001-201204
MARK3,NO.1,REFER R/M
sub11701-0P051
main11701-0P050-04i201001-201204
MARK4,NO.1,REFER R/M
sub11701-0P051
main11701-0P050-05i201001-201204
MARK5,NO.1,REFER R/M
sub11701-0P051
main11701-0P051-01i201204-201503
MARK1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-02i201204-201503
MARK2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-03i201204-201503
MARK3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-04i201204-201503
MARK4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-05i201204-201503
MARK5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-01i201503-201608
MARK 1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-02i201503-201608
MARK 2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-03i201503-201608
MARK 3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-04i201503-201608
MARK 4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-05i201503-201608
MARK 5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-A1i201705-202009
MARK UPPER 1 LOWER 1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-A1i201608-201705
MARK UPPER 1 LOWER 1,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-A2i201608-201705
MARK UPPER 1 LOWER 2,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-A2i201705-202009
MARK UPPER 1 LOWER 2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-B2i201705-202009
MARK UPPER 2 LOWER 2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-B2i201608-201705
MARK UPPER 2 LOWER 2,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-B3i201705-202009
MARK UPPER 2 LOWER 3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-B3i201608-201705
MARK UPPER 2 LOWER 3,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-C3i201608-201705
MARK UPPER 3 LOWER 3,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-C3i201705-202009
MARK UPPER 3 LOWER 3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-C4i201608-201705
MARK UPPER 3 LOWER 4,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-C4i201705-202009
MARK UPPER 3 LOWER 4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-D4i201705-202009
MARK UPPER 4 LOWER 4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-D4i201608-201705
MARK UPPER 4 LOWER 4,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-D5i201705-202009
MARK UPPER 4 LOWER 5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-D5i201608-201705
MARK UPPER 4 LOWER 5,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-E5i201608-201705
MARK UPPER 5 LOWER 5,NO.1,REFER R/M
sub11701-0P060
main11701-0P060-E5i201705-202009
MARK UPPER 5 LOWER 5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-31090-01i201204-201502
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-02i201204-201502
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-03i201204-201502
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-04i201204-201502
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-05i201204-201502
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-01i201503-201608
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-02i201503-201608
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-03i201503-201608
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-04i201503-201608
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-05i201503-201608
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-A1i201705-202009
MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-A2i201705-202009
MARK UPPER 1 LOWER 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-B2i201705-202009
MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-B3i201705-202009
MARK UPPER 2 LOWER 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-C3i201705-202009
MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-C4i201705-202009
MARK UPPER 3 LOWER 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-D4i201705-202009
MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-D5i201705-202009
MARK UPPER 4 LOWER 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-E5i201705-202009
MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M
sub11701-31100
main11711-0V010-01i201109-201305
MARK 1,*212:REFER R/M
main11711-0V010-02i201109-201305
MARK 2,*212:REFER R/M
main11711-0V010-03i201109-201305
MARK 3,*212:REFER R/M
main11711-0V010-04i201109-201305
MARK 4,*212:REFER R/M
main11711-0V030-01i201305-201308
MARK 1,(L),*212:REFER R/M
main11711-0V030-02i201305-201308
MARK 2,(L),*212:REFER R/M
main11711-0V030-03i201305-201308
MARK 3,(L),*212:REFER R/M
main11711-0V030-04i201305-201308
MARK 4,(L),*212:REFER R/M
main11711-36020-01i201005-201202
MARK 1,*107:REFER R/M
main11711-36020-02i201005-201202
MARK 2,*107:REFER R/M
main11711-36020-03i201005-201202
MARK 3,*107:REFER R/M
main11711-36020-04i201005-201202
MARK 4,*107:REFER R/M
main11711-36050-01i201202-201308
MARK 1,*107:REFER R/M
main11711-36050-01i201305-201308
MARK 1,(J),*212:REFER R/M
main11711-36050-02i201202-201308
MARK 2,*107:REFER R/M
main11711-36050-02i201305-201308
MARK 2,(J),*212:REFER R/M
main11711-36050-03i201202-201308
MARK 3,*107:REFER R/M
main11711-36050-03i201305-201308
MARK 3,(J),*212:REFER R/M
main11711-36050-04i201305-201308
MARK 4,(J),*212:REFER R/M
main11711-36050-04i201202-201308
MARK 4,*107:REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-0V010-01i201109-201305
MARK 1,*212:REFER R/M
main11721-0V010-02i201109-201305
MARK 2,*212:REFER R/M
main11721-0V010-03i201109-201305
MARK 3,*212:REFER R/M
main11721-0V010-04i201109-201305
MARK 4,*212:REFER R/M
main11721-0V030-01i201305-201308
MARK 1,(L),*212:REFER R/M
main11721-0V030-02i201305-201308
MARK 2,(L),*212:REFER R/M
main11721-0V030-03i201305-201308
MARK 3,(L),*212:REFER R/M
main11721-0V030-04i201305-201308
MARK 4,(L),*212:REFER R/M
main11721-36020-01i201005-201202
MARK 1,*107:REFER R/M
main11721-36020-02i201005-201202
MARK 2,*107:REFER R/M
main11721-36020-03i201005-201202
MARK 3,*107:REFER R/M
main11721-36020-04i201005-201202
MARK 4,*107:REFER R/M
main11721-36050-01i201202-201308
MARK 1,*107:REFER R/M
main11721-36050-01i201305-201308
MARK 1,(J),*212:REFER R/M
main11721-36050-02i201202-201308
MARK 2,*107:REFER R/M
main11721-36050-02i201305-201308
MARK 2,(J),*212:REFER R/M
main11721-36050-03i201305-201308
MARK 3,(J),*212:REFER R/M
main11721-36050-03i201202-201308
MARK 3,*107:REFER R/M
main11721-36050-04i201202-201308
MARK 4,*107:REFER R/M
main11721-36050-04i201305-201308
MARK 4,(J),*212:REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0V010i201109-201308
STD,*212
main11791-36010i201005-201308
STD,*107
13011RING SET, PISTON
main13011-0P040i201001-201507
STD
main13011-0P051i201608-202009
STD
main13011-0P060i201507-201608
STD
main13011-0V040i201109-201308
STD,*212
main13011-36020i201005-201212
STD,*107
sub13011-36060
main13011-36060i201212-201308
STD,*107
sub13011-36061
13041BEARING, CONNECTING ROD
main13041-0P080-01i201001-201104
MARK1,REFER R/M
sub13041-0P081
main13041-0P080-02i201001-201104
MARK2,REFER R/M
sub13041-0P081
main13041-0P080-03i201001-201104
MARK3,REFER R/M
sub13041-0P081
main13041-0P080-04i201001-201104
MARK4,REFER R/M
sub13041-0P081
main13041-0P081-01i201104-201605
MARK1,(L),REFER R/M
sub13041-0P090
main13041-0P081-02i201104-201605
MARK2,(L),REFER R/M
sub13041-0P090
main13041-0P081-03i201104-201605
MARK3,(L),REFER R/M
sub13041-0P090
main13041-0P081-04i201104-201605
MARK4,(L),REFER R/M
sub13041-0P090
main13041-0P090-01i201608-201705
MARK 1,REFER REPAIR MANUAL
main13041-0P090-01i201606-202009
MARK 1,(L),REFER R/M
main13041-0P090-02i201606-202009
MARK 2,(L),REFER R/M
main13041-0P090-02i201608-201705
MARK 2,REFER REPAIR MANUAL
main13041-0P090-03i201606-202009
MARK 3,(L),REFER R/M
main13041-0P090-03i201608-201705
MARK 3,REFER REPAIR MANUAL
main13041-0P090-04i201606-202009
MARK 4,(L),REFER R/M
main13041-0P090-04i201608-201705
MARK 4,REFER REPAIR MANUAL
main13041-31070-01i201104-201409
MARK 1,(J),REFER R/M
sub13041-31100
main13041-31070-02i201104-201409
MARK 2,(J),REFER R/M
sub13041-31100
main13041-31070-03i201104-201409
MARK 3,(J),REFER R/M
sub13041-31100
main13041-31070-04i201104-201409
MARK 4,(J),REFER R/M
sub13041-31100
main13041-31100-01i201705-202009
MARK 1,(J),REFER R/M
main13041-31100-01i201606-201608
MARK 1,(J):REFER R/M
main13041-31100-02i201705-202009
MARK 2,(J),REFER R/M
main13041-31100-02i201606-201608
MARK 2,(J):REFER R/M
main13041-31100-03i201705-202009
MARK 3,(J),REFER R/M
main13041-31100-03i201606-201608
MARK 3,(J):REFER R/M
main13041-31100-04i201705-202009
MARK 4,(J),REFER R/M
main13041-31100-04i201606-201608
MARK 4,(J):REFER R/M
main13281-0V010-01i201109-201308
MARK 1,*212:REFER R/M
sub13281-0V011
main13281-0V010-02i201109-201308
MARK 2,*212:REFER R/M
sub13281-0V011
main13281-0V010-03i201109-201308
MARK 3,*212:REFER R/M
sub13281-0V011
main13281-36020-01i201005-201308
MARK 1,*107:REFER R/M
sub13281-36021
main13281-36020-02i201005-201308
MARK 2,*107:REFER R/M
sub13281-36021
main13281-36020-03i201005-201308
MARK 3,*107:REFER R/M
sub13281-36021
13101PISTON SUB-ASSY, W/PIN
main13101-0P040i201608-202009
STD,REFER REPAIR MANUAL
main13101-0P053i201409-201608
STD
sub13101-31092
main13101-0P053i201001-201409
STD,(L)
sub13101-31092
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i201005-201308
*107
main90520-A0004i201409-201608
main90520-A0004i201608-202009
RH BANK
main90520-A0004i201001-201409
(L)
main90520-A0004i201109-201308
*212
13201ROD SUB-ASSY, CONNECTING
main13201-09830i201001-201606
sub13201-09831
main13201-09831i201606-201608
sub13201-39137
main13201-09A45-A0i201109-201308
MARK A,*212:REFER R/M
sub13201-09A46
main13201-09A45-B0i201109-201308
MARK B,*212:REFER R/M
sub13201-09A46
main13201-09A45-C0i201109-201308
MARK C,*212:REFER R/M
sub13201-09A46
main13201-09B90i201608-202009
REFER R/M
main13201-39225-A0i201005-201308
MARK A,*107:REFER R/M
sub13201-39226
main13201-39225-B0i201005-201308
MARK B,*107:REFER R/M
sub13201-39226
main13201-39225-C0i201005-201308
MARK C,*107:REFER R/M
sub13201-39226
13211PISTON
main13211-0V070-A0i201109-201308
MARK A,*212:REFER R/M
main13211-0V070-B0i201109-201308
MARK B,*212:REFER R/M
main13211-0V070-C0i201109-201308
MARK C,*212:REFER R/M
main13211-36040-A0i201005-201011
MARK A,*107:REFER R/M
sub13211-36041
main13211-36040-B0i201005-201011
MARK B,*107:REFER R/M
sub13211-36041
main13211-36040-C0i201005-201011
MARK C,*107:REFER R/M
sub13211-36041
main13211-36041-A0i201011-201308
MARK A,*107:REFER R/M
main13211-36041-B0i201011-201308
MARK B,*107:REFER R/M
main13211-36041-C0i201011-201308
MARK C,*107:REFER R/M
13251PIN, PISTON
main13251-28020-A0i201109-201308
MARK A,*212:REFER R/M
main13251-28020-A0i201005-201308
MARK A,*107:REFER R/M
main13251-28020-B0i201005-201308
MARK B,*107:REFER R/M
main13251-28020-B0i201109-201308
MARK B,*212:REFER R/M
main13251-28020-C0i201109-201308
MARK C,*212:REFER R/M
main13251-28020-C0i201005-201308
MARK C,*107:REFER R/M
13265BOLT, CONNECTING ROD
main13265-28010i201001-201901
sub13265-28020
main13265-28020i201901-202009
main13265-31020i201005-201308
*107
main13265-31020i201109-201308
*212
13411CRANKSHAFT
main13401-0P030i201001-201507
(L)
sub13401-0P031
main13401-0P031i201507-201608
(L)
main13401-0P060i201608-202009
main13401-0V040i201109-201305
*212
sub13401-36021
main13401-0V041i201305-201308
*212
sub13401-36021
main13401-31040i201001-201410
(J)
sub13401-31041
main13401-31041i201410-201608
(J)
sub13401-31021
main13401-36020i201005-201202
*107
sub13401-36021
main13401-36021i201202-201308
*107
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i201109-201308
*212
main95161-30516i201005-201308
*107
13471PULLEY, CRANKSHAFT
main13470-0V020i201109-201308
(L),*212
main13470-31030i201001-201608
main13470-31060i201608-202009
main13470-36010i201109-201308
(J),*212
main13470-36010i201005-201308
*107
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i201109-201308
*212
main95161-30516i201005-201308
*107
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i201001-201412
main90119-16020i201005-201308
*107
main90119-16020i201501-202009
main90119-16020i201109-201308
*212
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0P011i201001-201608
main13521-0P020i201608-202009
main13521-0V010i201109-201308
(L),*212
main13521-36010i201005-201308
*107
main13521-36010i201109-201308
(J),*212

17 parts on this diagram · 3 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
