METER

0001 1COMBINATION METER 0002 1COMBINATION METER 0003 1ACCESSORY METER

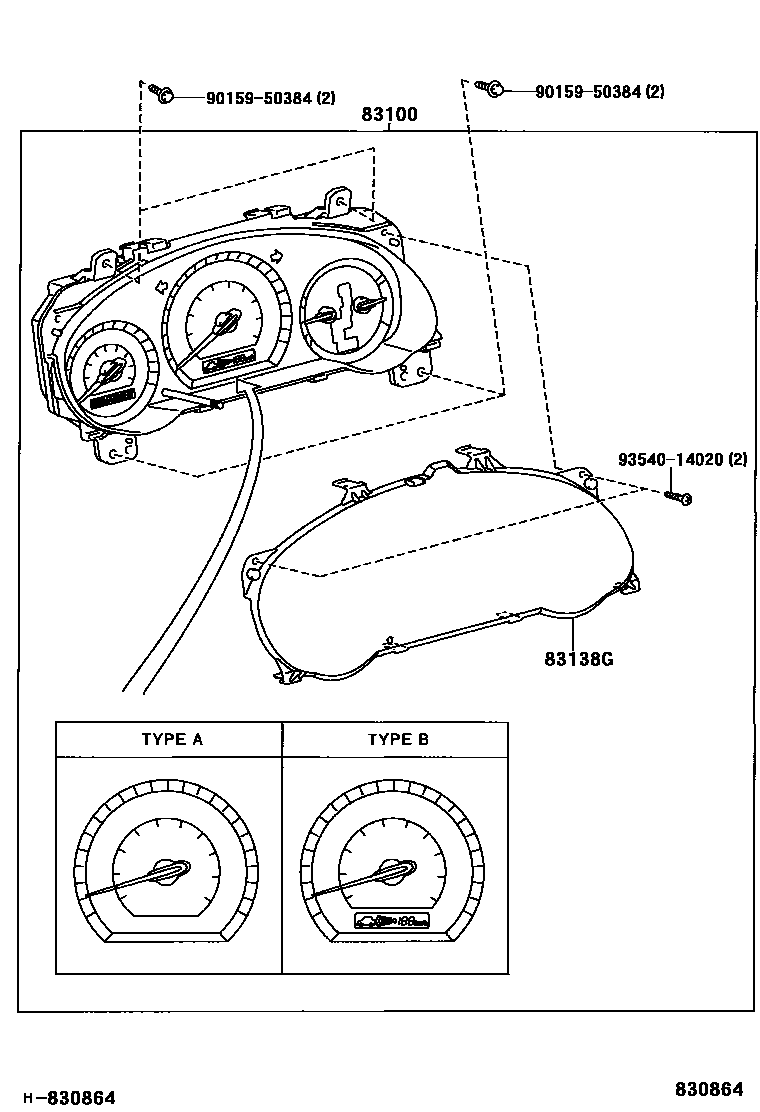

83100METER ASSY, COMBINATION

main83800-08130iMCL2#..USA200301-200509

TYPE A:REFER ILLUST.

sub83800-08131

main83800-08131iMCL2#..USA200509-200509

TYPE A:REFER ILLUST.

main83800-08150iMCL20..7S..USA200301-200509

MEXICO SPEC,TYPE A:REFER ILLUST.

sub83800-08151

main83800-08150iMCL20..7S..USA200301-200509

TYPE A:REFER ILLUST.

sub83800-08151

main83800-08151iMCL2#..CND200509-200509

MEXICO SPEC,TYPE A:REFER ILLUST.

main83800-08151iMCL20..LE..USA;MCL20..7S..XLE..USA200509-200509

TYPE A:REFER ILLUST.

main83800-08170iMCL23..USA200509-200612

CE PACKAGE,TYPE A:REFER ILLUST.

main83800-08170iMCL20..LE..USA200509-200612

TYPE A:REFER ILLUST.

main83800-08180iMCL20,25..USA200509-200612

TYPE A:REFER ILLUST.

main83800-08200iMCL2#..CE..CND200509-200612

TYPE A:REFER ILLUST.

main83800-08200iMCL2#..CE..CND200509-200612

MEXICO SPEC&CE PACKAGE,TYPE A:REFER ILLUST.

main83800-08210iMCL20,25..(LE,XLE)..CND200509-200612

TYPE A:REFER ILLUST.

main83800-08210iMCL20,25..(LE,XLE)..CND200509-200612

MEXICO SPEC,TYPE A:REFER ILLUST.

main83800-08230iGSL23..USA200612-200708

CE PACKAGE

main83800-08240iGSL20,25..USA200612-200708

main83800-08260iGSL2#..CE..CND200612-200708

MEXICO SPEC&CE PACKAGE

main83800-08270iGSL20..LE..USA;GSL20..7S..XLE..USA200612-200708

MEXICO SPEC

main83800-08290iGSL23..USA200708

CE PACKAGE

main83800-08300iGSL20,25..USA200708

main83800-08320iGSL2#..CE..CND200708

MEXICO SPEC&CE PACKAGE

main83800-08330iGSL20,25..(LE,XLE)..CND200708

MEXICO SPEC

83138GGLASS, COMBINATION METER

main83852-08130iMCL20..LE..USA200509-200612

MEXICO SPEC&CE PACKAGE

main83852-08130iMCL2#200301-200509

main83852-08130iMCL2#..CE200509-200612

CE PACKAGE

main83852-08180iMCL20,25..LE,XLE200509-200612

9015950384

main90159-50384

9354014020

main93540-14020

4 parts on this diagram · 3 diagrams in section
