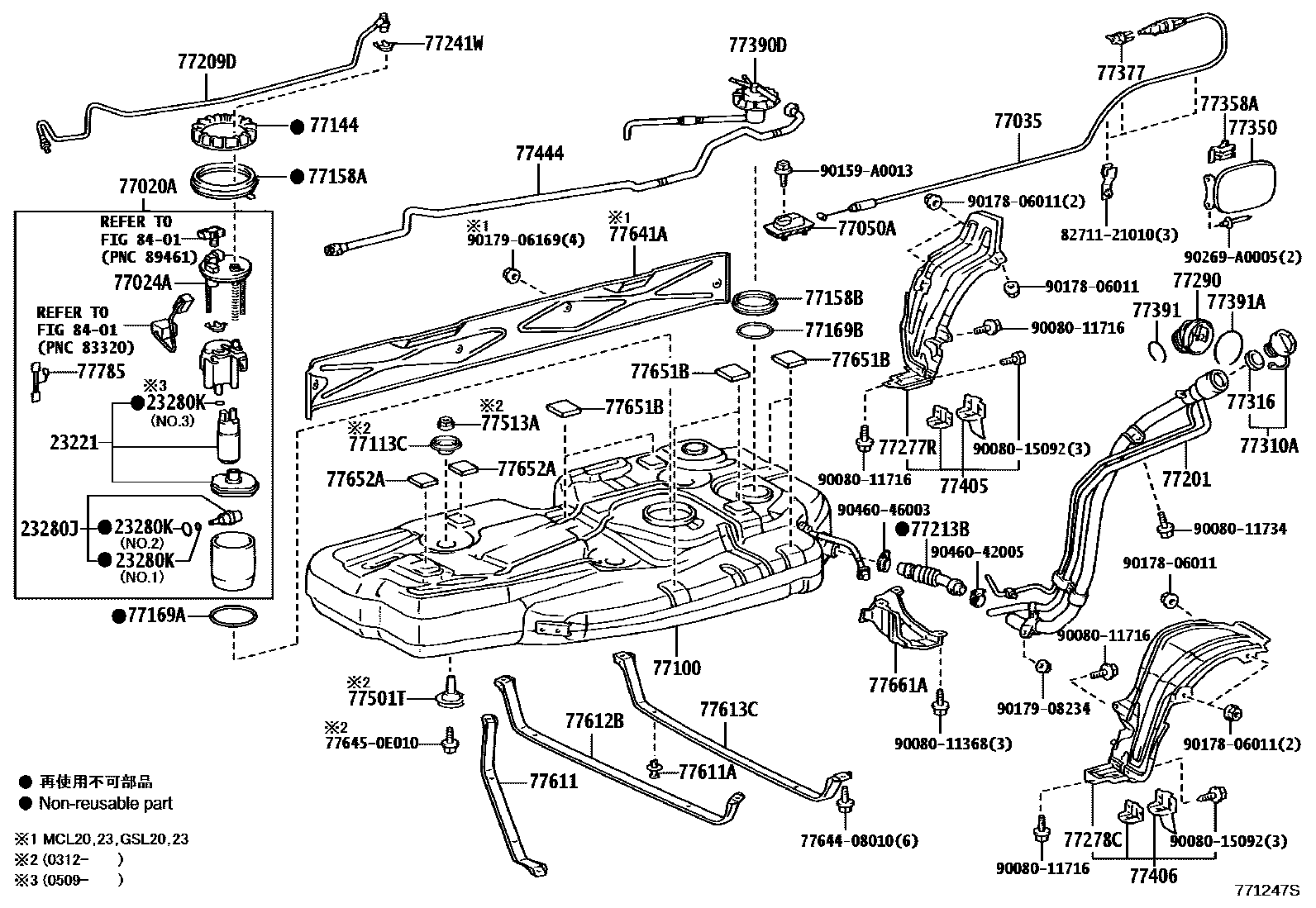

FUEL TANK & TUBE
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.3
NO.2
NO.3
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77050ACONTROL OPENER ASSY, FUEL LID LOCK
STONE,TRIM1#
FAWN,TRIM4#
77113CPLATE, FUEL TANK SIDE
77144RETAINER, FUEL PUMP GAUGE
77158ASUPPORT, TANK SUCTION TUBE
77158BSUPPORT, TANK SUCTION TUBE, NO.1
77201PIPE SUB-ASSY, FUEL TANK INLET
77209DTUBE SUB-ASSY, FUEL TANK MAIN
77213BHOSE, FUEL TANK TO FILLER PIPE
sub77213-08021
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2
77290SHIELD ASSY, FUEL TANK FILLER PIPE
77350LID ASSY, FUEL FILLER OPENING
77358ASTOPPER, FUEL FILLER OPENING LID
77377RETAINER, FUEL FILLER OPENING LID LOCK
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77405PROTECTOR SUB-ASSY, FUEL INLET HOSE
77406PROTECTOR SUB-ASSY, FUEL TUBE
77444HOSE, FUEL TANK VENT
77501TBRACKET SUB-ASSY, FUEL TANK
77513ARETAINER, TANK BRACKET
77611BAND, FUEL TANK
77612BBAND, FUEL TANK, NO.2
77613CBAND, FUEL TANK, NO.3
77641APROTECTOR, FUEL TANK, NO.1
77651BCUSHION, FUEL TANK
77652ACUSHION, FUEL TANK, NO.2
T=10.0
T=8.0
T=12.0
77661ACOVER, FUEL TANK FILLER HOSE
8401
7764408010BOLT, FUEL TANK
main77644-08010
776450E010PACKING, FUEL TANK BRACKET UPPER, B
main77645-0E010
8271121010WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-21010
9008011368
main90080-11368
9008011716
main90080-11716
9008011734
main90080-11734
9008015092
main90080-15092
90159A0013
main90159-A0013
9017806011
main90178-06011
9017906169
main90179-06169
9017908234
main90179-08234
90269A0005
main90269-A0005
9046042005
main90460-42005
9046046003
main90460-46003
58 parts on this diagram · 4 diagrams in section
