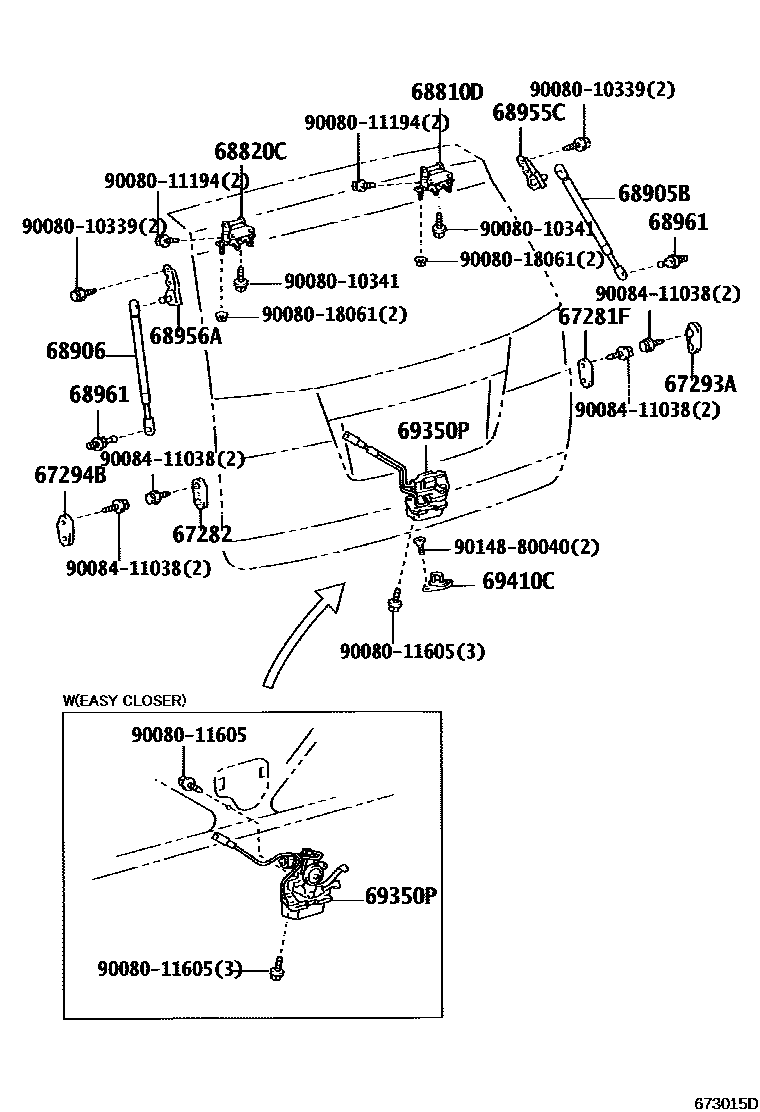

BACK DOOR LOCK & HINGE
67281FSTOPPER, BACK DOOR, LOWER
67282STOPPER, BACK DOOR, NO.1
67293ACUSHION, BACK DOOR STOPPER
67294BBRACKET, BACK DOOR BASE STOPPER
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68905BSTAY SUB-ASSY, BACK DOOR, RH
sub68905-AE010
sub68905-AE021
sub68905-AE022
68906STAY SUB-ASSY, BACK DOOR, LH
sub68905-AE010
sub68905-AE021
sub68905-AE022
68961BOLT, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
AUTO & EASY CLOSER DOOR-RH&LH SLIDE DOOR
AUTO & EASY CLOSER DOOR-RH&LH SLIDE & POWER BACK DOOR
AUTO & EASY CLOSER DOOR-RH SLD DR.+LH CLSR ONLY
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
9008010339
main90080-10339
9008010341
main90080-10341
9008011194
main90080-11194
9008011605
main90080-11605
9008018061
main90080-18061
9008411038
main90084-11038
9014880040
main90148-80040
20 parts on this diagram · 2 diagrams in section
