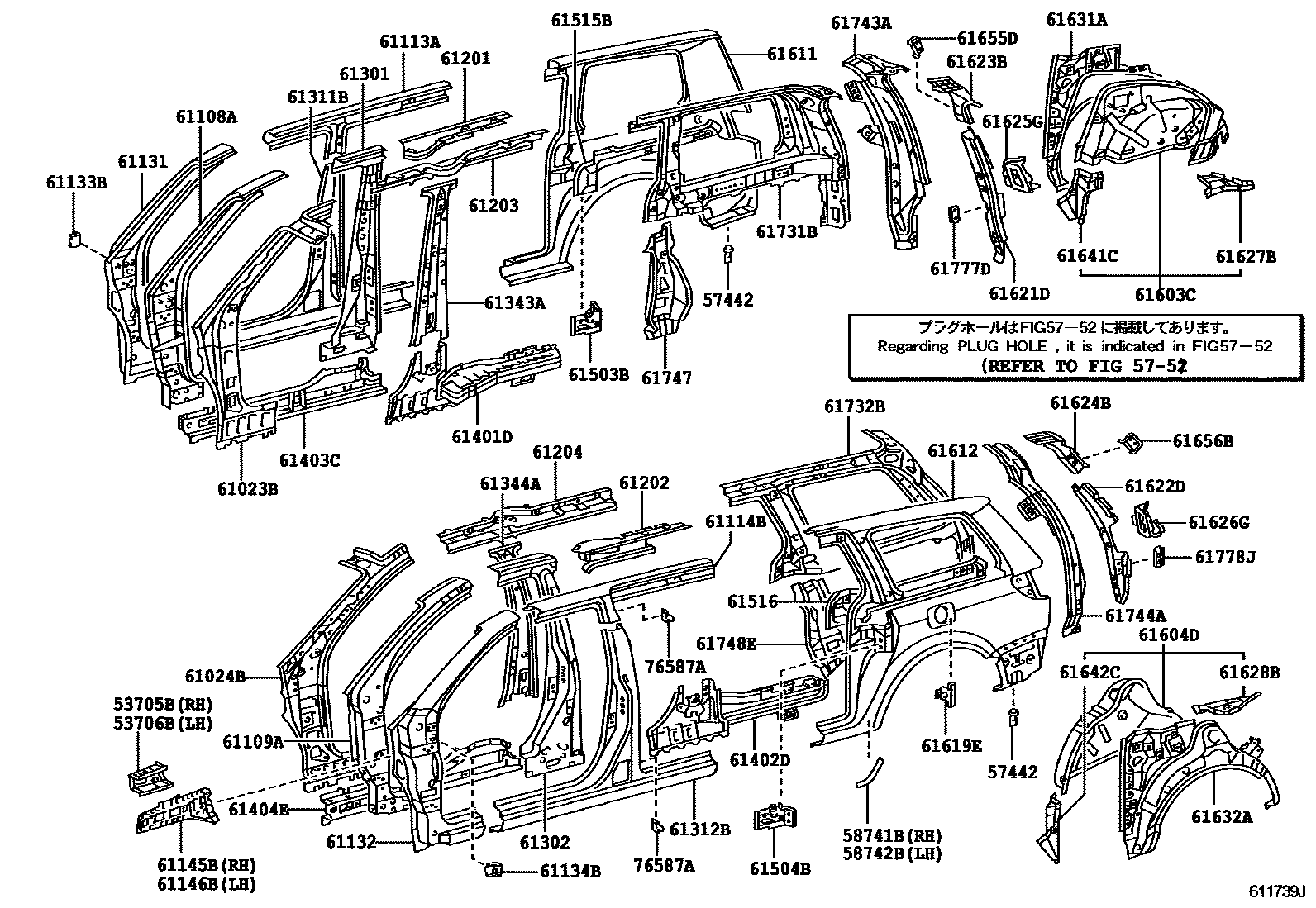

SIDE MEMBER

53705BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-AE010iMCL2#200301-200612

53706BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-AE010iGSL2#200301-200612

57442PLUG, STEP PANEL HOLE

main57442-08010iMCL2#200502-200612

main57442-95700iMCL20,23;MCL25..LE,XLE200301-200502

5752

58741BPROTECTOR, QUARTER PANEL, RH

main58741-AE010iMCL2#200301-200612

58742BPROTECTOR, QUARTER PANEL, LH

main58742-AE010iMCL2#200301-200612

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-AE010iMCL2#200301-200912

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-AE010iMCL2#200301-200912

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-AE902iGSL2#200301-200612

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-AE902iMCL2#200301-200612

61113APANEL, SIDE, OUTER NO.2 RH

main61113-AE010iMCL2#200301-200612

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-AE010iMCL2#200301-200612

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-AE010iMCL2#200301-200612

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-AE010iMCL2#200301-200612

61133BBRACKET, FRONT BODY PILLAR ,OUTER RH

main61133-AC010iMCL2#200301-200612

61134BBRACKET, FRONT BODY PILLAR OUTER, LH

main61133-AC010iMCL2#200301-200612

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61105-08020iMCL2#200301-200912

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-08020iMCL2#200301-200912

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-AE010iMCL2#200301-200612

61202RAIL SUB-ASSY, ROOF SIDE, LH

main61202-AE010iMCL2#200301-200612

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-AE010iMCL2#200301-200612

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-AE010iMCL2#200301-200612

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-AE901iMCL2#200301-200501

sub61301-AE902

main61301-AE902iMCL2#200501-200612

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-AE901iMCL2#200301-200501

sub61302-AE903

main61302-AE903iMCL2#200501-200509

sub61302-AE904

main61302-AE904iMCL2#200509-200612

61311BPILLAR, CENTER BODY, OUTER RH

main61311-AE010iMCL2#200301-200612

61312BPILLAR, CENTER BODY, OUTER LH

main61312-AE010iMCL2#200301-200612

61343APILLAR, CENTER BODY, INNER RH

main61305-AE010iGSL2#200501-200612

main61343-AE010iMCL2#200301-200501

61344APILLAR, CENTER BODY, INNER LH

main61306-AE010iGSL2#200501-200612

main61344-AE010iMCL2#200301-200501

61401DRAIL SUB-ASSY, NO.1 LOWER OUTER, RH

main61401-AE900iMCL20,23;MCL25..LE,XLE200301-200501

sub61401-AE901

main61401-AE901iGSL2#200501-200612

61402DRAIL SUB-ASSY, NO.1 LOWER OUTER, LH

main61402-AE900iMCL2#200301-200501

sub61402-AE901

main61402-AE901iMCL2#200501-200612

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-AE010iMCL2#200301-200612

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-AE010iMCL2#200301-200612

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-AE010iGSL2#200301-200612

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-AE010iMCL2#200301-200612

61515BEXTENSION, QUARTER LOCK PILLAR, RH

main61515-AE010iMCL2#200301-200612

61516EXTENSION, QUARTER LOCK PILLAR, LH

main61516-AE010iMCL2#200301-200612

61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61603-AE900iMCL20,23;MCL25..LE,XLE200301-200509

main61603-AE901iMCL2#200509-200612

61604DPANEL SUB-ASSY, QUARTER WHEEL HOUSE, LH

main61604-AE900iMCL20,23;MCL25..LE,XLE200301-200509

sub61604-AE901

main61604-AE901iMCL2#200509-200612

61611PANEL, QUARTER, RH

main61611-AE010iMCL2#200301-200612

sub61611-AE011

sub82819-28640

main61611-AE011iGSL2#200612

61612PANEL, QUARTER, LH

main61612-AE010iMCL2#200301-200612

61619EREINFORCEMENT, QUARTER PANEL

main61619-21020iMCL2#200301-200612

61621DTROUGH, BACK DOOR OPENING, RH

main61621-AE010iMCL2#200301-200612

61622DTROUGH, BACK DOOR OPENING, LH

main61622-AE010iMCL2#200301-200612

61623BTROUGH, BACK DOOR OPENING, REAR RH

main61623-AE010iMCL2#200301-200612

61624BTROUGH, BACK DOOR OPENING, REAR LH

main61624-AE010iMCL2#200301-200612

61625GEXTENSION, QUARTER PANEL, REAR RH

main61625-AE010iMCL2#200301-200612

61626GEXTENSION, QUARTER PANEL, REAR LH

main61626-AE010iMCL2#200301-200612

61627BEXTENSION, QUARTER PANEL, UPPER REAR RH

main61627-AE010iMCL2#200301-200612

61628BEXTENSION, QUARTER PANEL, UPPER REAR LH

main61628-AE010iMCL2#200301-200612

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-AE900iMCL2#200301-200412

sub61631-AE901

main61631-AE901iMCL2#200412-200601

main61631-AE902iMCL2#200601-200612

sub61631-AE901

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-AE900iMCL2#200301-200612

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-AE010iMCL2#200301-200612

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-AE010iMCL2#200301-200612

61655DBRACKET, BACK DOOR STAY, UPPER RH

main61655-AE010iMCL2#200301-200612

61656BBRACKET, BACK DOOR STAY, UPR LH

main61655-AE010iMCL2#200301-200612

61731BPANEL, ROOF SIDE, INNER RH

main61731-AE900iMCL2#200301-200601

sub61731-AE903

main61731-AE903iMCL2#200601-200612

61732BPANEL, ROOF SIDE, INNER LH

main61732-AE900iMCL2#200301-200902

sub61732-AE901

main61732-AE901iGSL2#200902

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-AE900iMCL2#200301-200612

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-AE900iMCL2#200301-200612

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-AE010iMCL2#200301-200612

61748EBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-AE010iMCL2#200301-200612

61777DRETAINER, BACK DOOR SIDE STOPPER, RH

main61777-AE010iMCL2#200301-200612

61778JRETAINER, BACK DOOR SIDE STOPPER, LH

main61777-AE010iMCL2#200301-200612

76587APROTECTOR, CENTER PILLAR OUTER

main76587-08010iMCL2#200301-200612

64 parts on this diagram · 1 diagram in section
