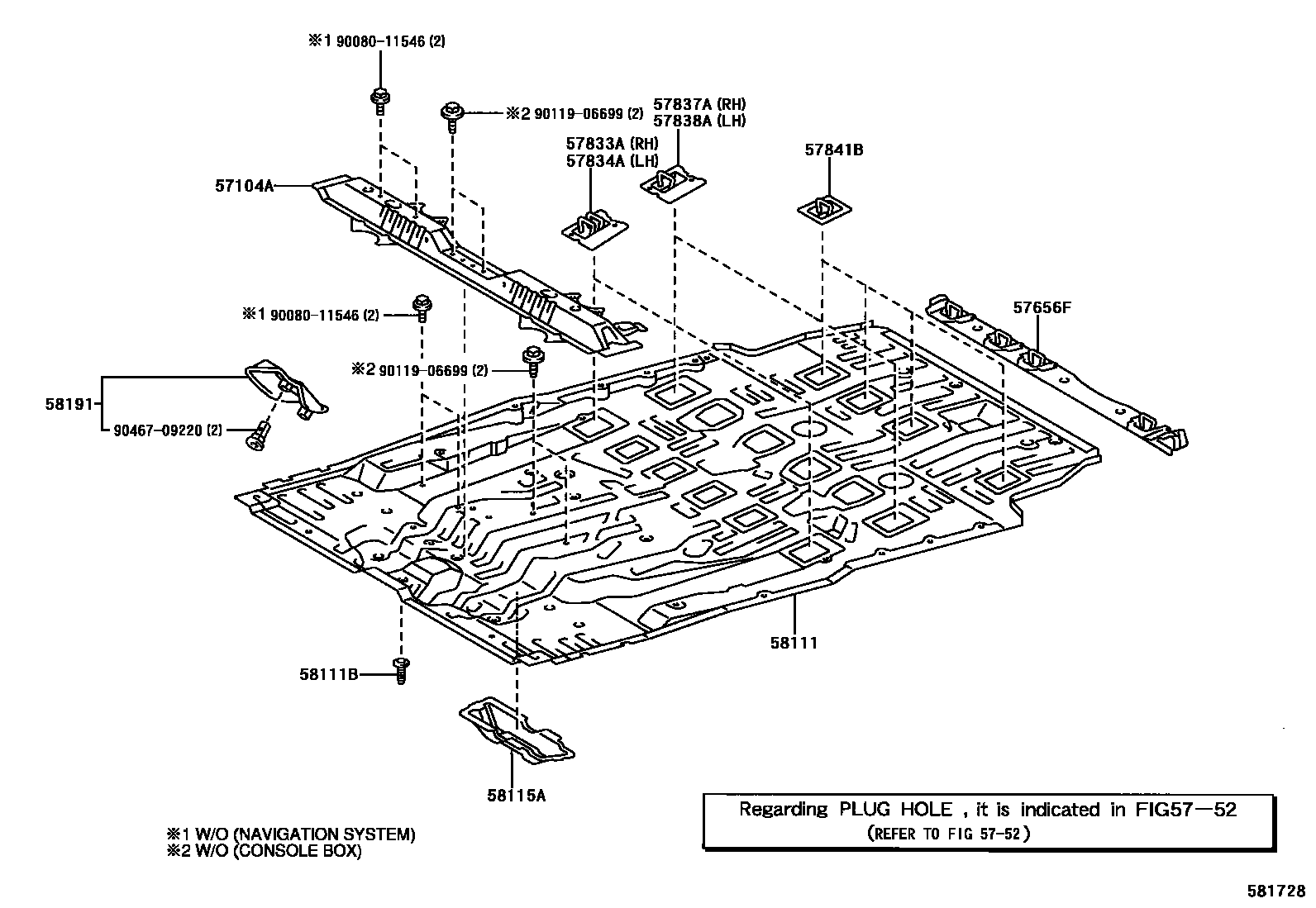

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

0001 1FLOOR PANEL 0002 1SIDE MEMBER & FLOOR MEMBER 0003 1SIDE MEMBER & FLOOR MEMBER 0004 1SIDE MEMBER & FLOOR MEMBER

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-08020iMCL2#200301-200509

5752

57656FMEMBER REAR FLOOR CROSS, NO.5

main57609-08020iMCL2#200301-200509

main57609-08030iMCL2#200509-200612

57833AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.3

main57833-08020iMCL2#200301-200509

57834AREINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.4

main57834-08010iMCL2#200301-200509

57837AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3

main57837-08020iMCL2#200509-200612

57838AREINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.4

main57838-08010iMCL2#200301-200509

57841BREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT

main57841-08020×4iMCL2#200301-200509

58111PAN, FRONT FLOOR

main58111-08030iMCL2#..2S,7S200301-200411

main58111-08031iMCL2#..2S,7S200509-200612

main58111-08040iMCL20..8S200301-200411

main58111-08041iGSL20..8S200612

58111BBOLT, WELD(FOR FRONT FLOOR PAN)

main90080-11610×8iMCL20,23200301-200509

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-08010iMCL2#200301-200509

58191FOOTREST, FRONT FLOOR

main58192-08020iMCL2#200301-200509

9008011546

main90080-11546

9011906699

main90119-06699

9046709220

main90467-09220

15 parts on this diagram · 4 diagrams in section
