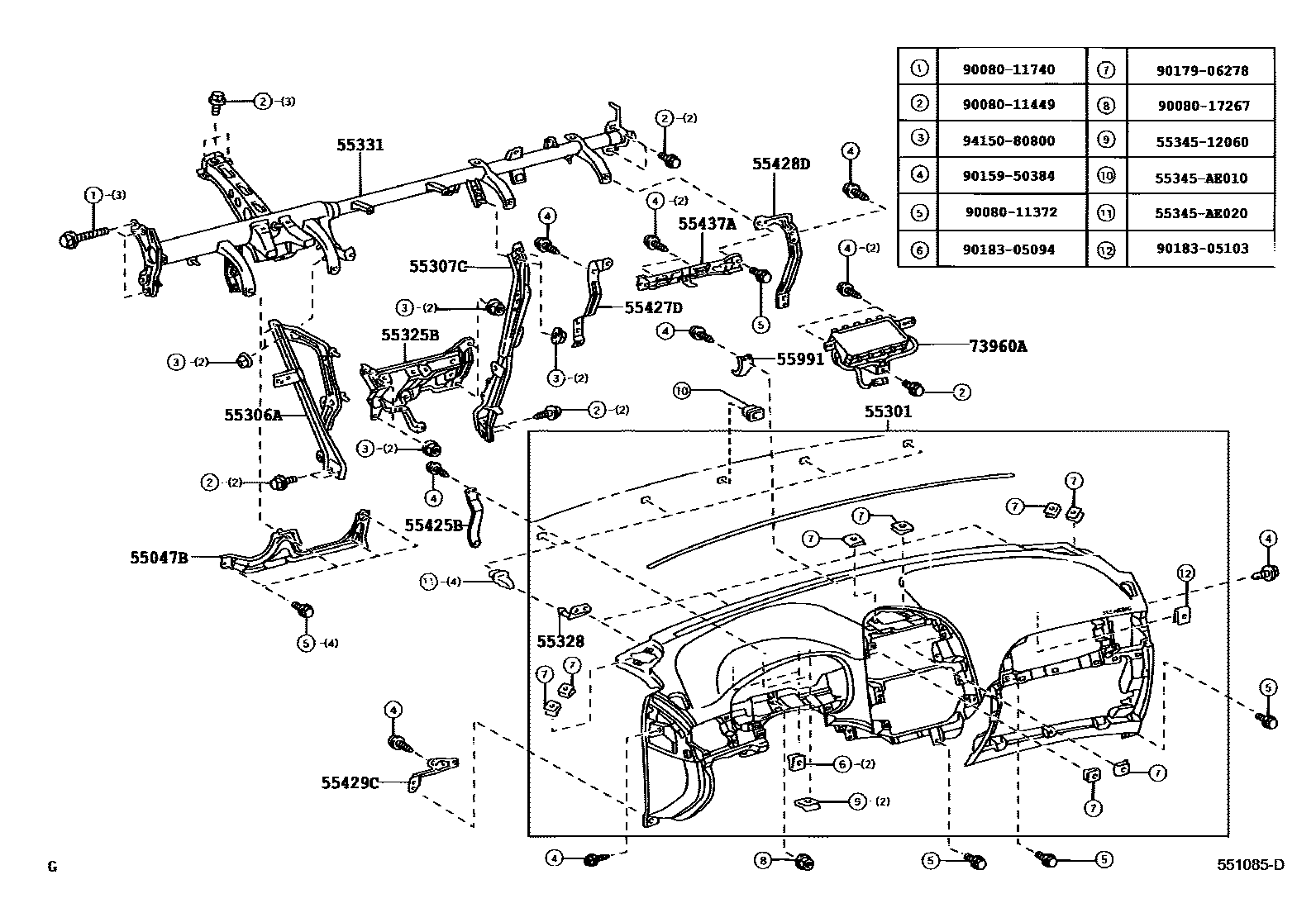

INSTRUMENT PANEL & GLOVE COMPARTMENT

55047BINSERT SUB-ASSY, INSTRUMENT PANEL SAFETY PAD, NO.1

main55047-08020i200301-200612

55301PANEL SUB-ASSY, INSTRUMENT

main55301-AE010-B0i200301-200509

DK. STONE,TRIM1#

sub55301-AE011

sub55042-AE011

main55301-AE010-E0i200301-200509

SANDAL WOOD,TRIM4#

sub55301-AE011

sub55042-AE011

main55301-AE011-B0i200509-200912

DK. STONE,TRIM1#

sub55301-08040

main55301-AE011-E0i200509-200912

SANDAL WOOD,TRIM4#

sub55301-08040

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-08020i200301-200612

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-08020i200301-200612

55325BBRACKET, INSTRUMENT PANEL, NO.5

main55325-08010i200301-200612

55328PIN, INSTRUMENT PANEL, NO.1

main55328-AE010i200301-200612

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-08020i200301-200408

sub55330-08021

main55330-08021i200409-200612

55425BREINFORCEMENT, INSTRUMENT CLUSTER FINISH PANEL

main55425-08010i200301-200612

55427DRETAINER, INSTRUMENT FINISH PANEL, LOWER, NO.1

main55427-08020i200301-200612

55428DRETAINER, INSTRUMENT FINISH PANEL, LOWER NO.2

main55428-08020i200301-200612

55429CRETAINER, INSTRUMENT PANEL FINISH PANEL, LOWER NO.3

main55429-08020i200301-200612

55437ARETAINER, INSTRUMENT PANEL FINISH PANEL, NO.1

main55437-08010i200301-200612

55991BRACKET, DEFROSTER DUCT, NO.1

main55991-08010i200301-200612

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-08030i200301-200401

main73960-08040i200401-200612

5534512060GARNISH, GLOVE COMPARTMENT, UPPER

main55345-12060

55345AE010GARNISH, GLOVE COMPARTMENT, UPPER

main55345-AE010

55345AE020GARNISH, GLOVE COMPARTMENT, UPPER

main55345-AE020

9008011372

main90080-11372

9008011449

main90080-11449

9008011740

main90080-11740

9008017267

main90080-17267

9015950384

main90159-50384

9017906278

main90179-06278

9018305094

main90183-05094

9018305103

main90183-05103

9415080800

main94150-80800

26 parts on this diagram · 4 diagrams in section
