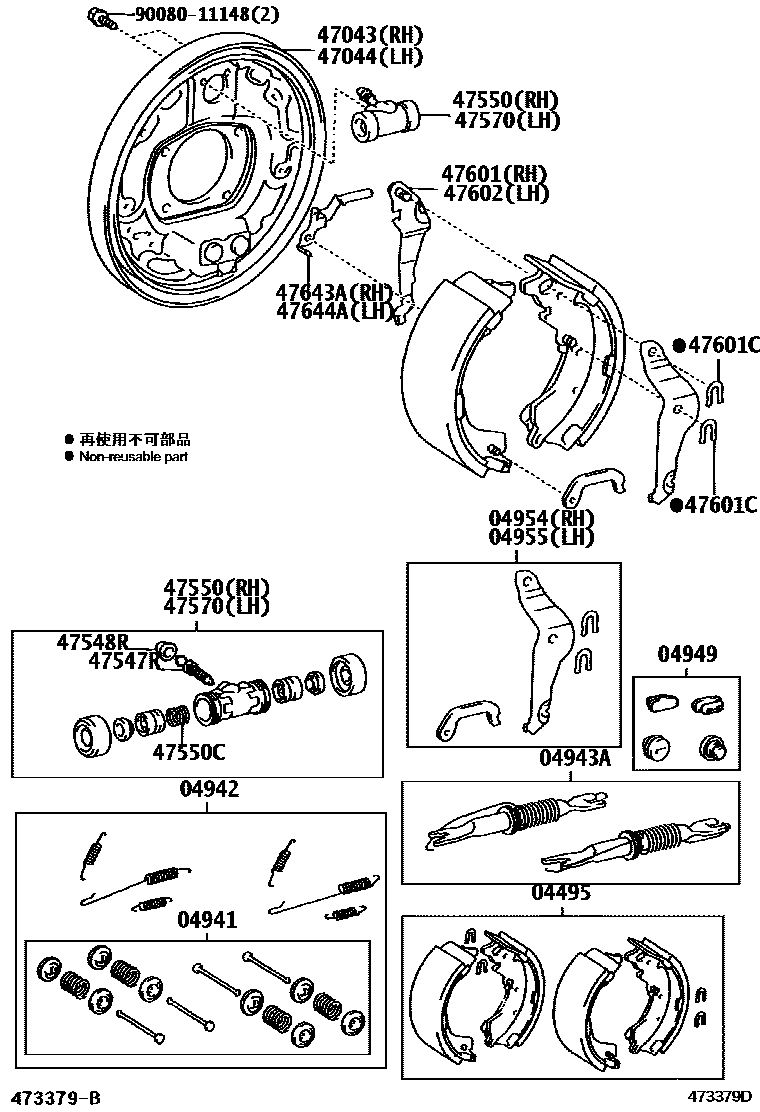

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-08030iMCL20,23200301-200801

MARK NBK D9033

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-45010iMCL20,23200301-200801

sub04941-04010

04942SPRING KIT, REAR BRAKE

main04942-45010iMCL20,23200301-200801

sub04942-04010

04943ASTRUT KIT, REAR BRAKE

main04943-08030iMCL20,23200301-200801

04949PLUG KIT, REAR BRAKE

main04949-13010iMCL20,23200301-200801

04954REACTION PLATE KIT, REAR BRAKE, RH

main04954-08030iMCL20,23200301-200801

04955REACTION PLATE KIT, REAR BRAKE, LH

main04955-08030iMCL20,23200301-200801

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-08020iMCL20,23200301-200708

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-08020iMCL20,23200301-200708

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iMCL20,23200301-200708

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iMCL20,23200301-200708

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-08030iMCL20,23200301-200708

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60011iMCL20,23200301-200708

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-08030iMCL20,23200301-200708

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-08030iMCL20,23200301-200708

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iMCL20,23200301-200708

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-08030iMCL20,23200301-200708

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-45010iMCL20,23200301-200708

sub47643-0K110

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-45010iMCL20,23200301-200708

sub47644-0K110

9008011148

main90080-11148

20 parts on this diagram · 1 diagram in section
