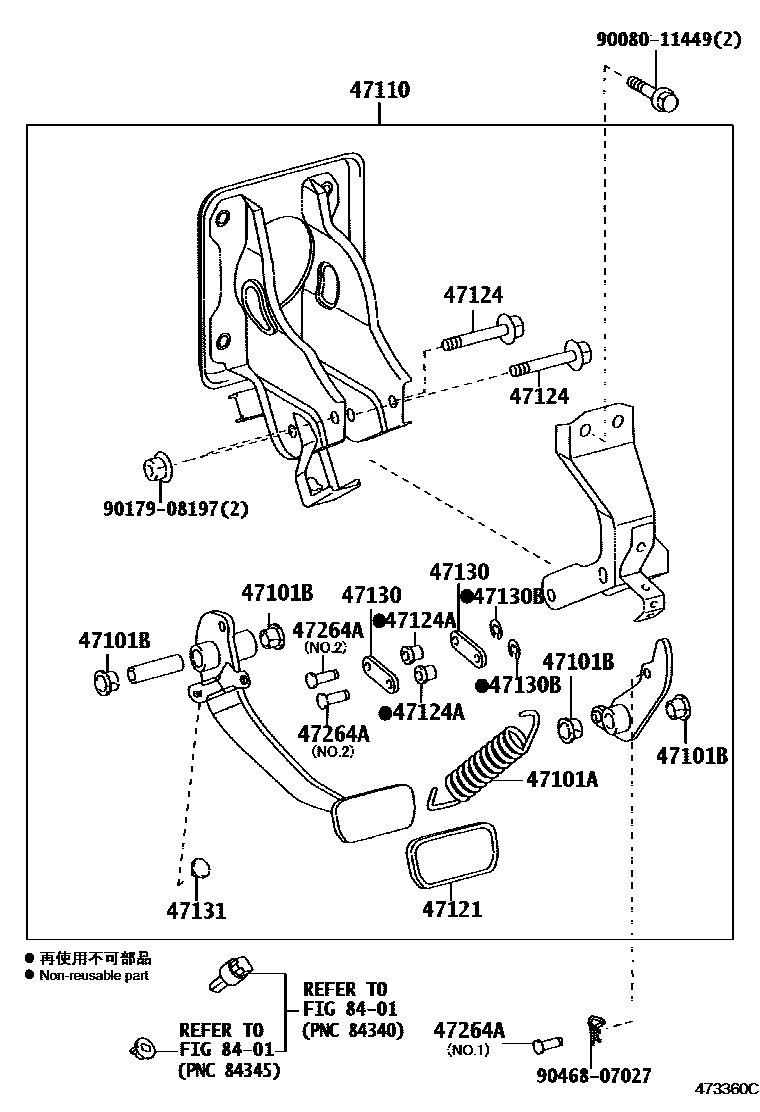

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-18083iMCL2#200301-200612

47101BBUSH(FOR BRAKE PEDAL)

main90386-14015iMCL2#200301-200612

47110SUPPORT ASSY, BRAKE PEDAL

main47110-08020iMCL2#200301-200612

47121PAD, BRAKE PEDAL

main47121-52010iMCL2#200301-200612

47124SHAFT, BRAKE PEDAL

main90080-10297iMCL2#200301-200612

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-34010iGSL2#200301-200612

47130LINK ASSY, BRAKE PEDAL

main4710A-28010iGSL2#200509-200612

NO.1

main47130-60020iMCL2#200301-200509

sub47130-60021

main47130-60021iGSL2#200509-200612

NO.2

47130BRING E, BRAKE PEDAL LINK PIN

main96160-00400iMCL2#200301-200612

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06049iMCL2#200301-200612

47264APIN(FOR PUSH ROD)

main90240-06023iMCL2#200301-200509

NO.1

main90240-06023iMCL2#200509-200809

main90240-06027iGSL2#200810

main90249-06172iMCL2#200301-200509

NO.2

8401

9008011449

main90080-11449

9017908197

main90179-08197

9046807027

main90468-07027

14 parts on this diagram · 2 diagrams in section
