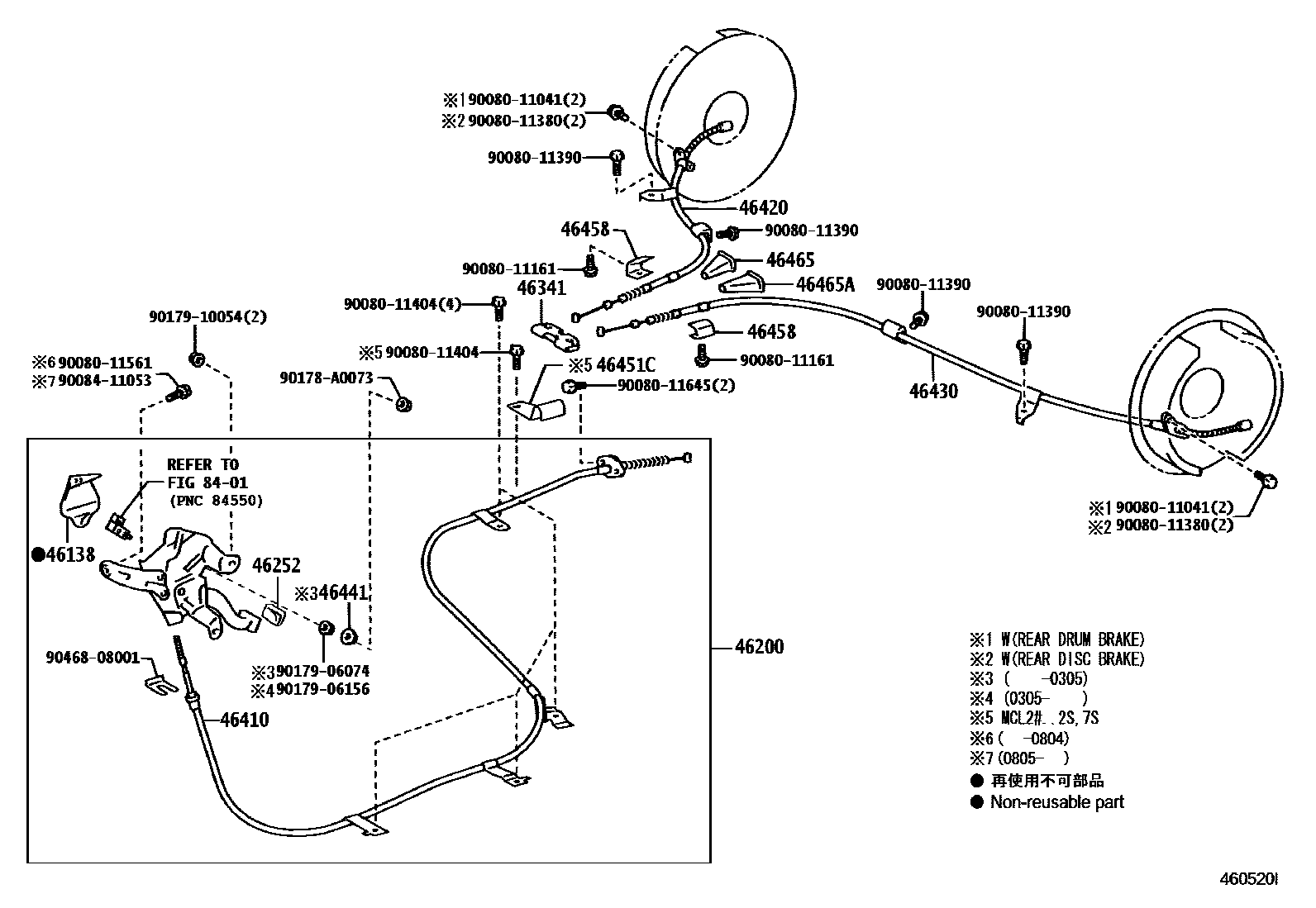

PARKING BRAKE & CABLE
46138PROTECTOR, PARKING BRAKE PEDAL BRACKET
46200PEDAL ASSY, PARKING BRAKE CONTROL
REAR WHEEL BRAKE-DISK 15INCH 12S
REAR WHEEL BRAKE-DISK 15/12S
46252PAD, PARKING PEDAL
46341EQUALIZER, PARKING BRAKE
46410CABLE ASSY, PARKING BRAKE, NO.1
REAR WHEEL BRAKE-DISK 15INCH 12S
REAR WHEEL BRAKE-DISK 15/12S
46420CABLE ASSY, PARKING BRAKE, NO.2
REAR WHEEL BRAKE-DISK 15INCH 12S
REAR WHEEL BRAKE-DISK 15/12S
46430CABLE ASSY, PARKING BRAKE, NO.3
REAR WHEEL BRAKE-DISK 15/12S
REAR WHEEL BRAKE-DISK 15INCH 12S
46441NUT, WIRE ADJUSTING, NO.1
46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
REAR WHEEL BRAKE-DISK 15INCH 12S
REAR WHEEL BRAKE-DISK 15/12S
46458RETAINER, CABLE
46465GUIDE, PARKING BRAKE CABLE, RH
46465AGUIDE, PARKING BRAKE CABLE, LH
8401
9008011041
main90080-11041
9008011161
main90080-11161
9008011380
main90080-11380
9008011390
main90080-11390
9008011404
main90080-11404
9008011561
main90080-11561
9008011645
main90080-11645
9008411053
main90084-11053
90178A0073
main90178-A0073
9017906074
main90179-06074
9017906156
main90179-06156
9017910054
main90179-10054
9046808001
main90468-08001
26 parts on this diagram · 2 diagrams in section
