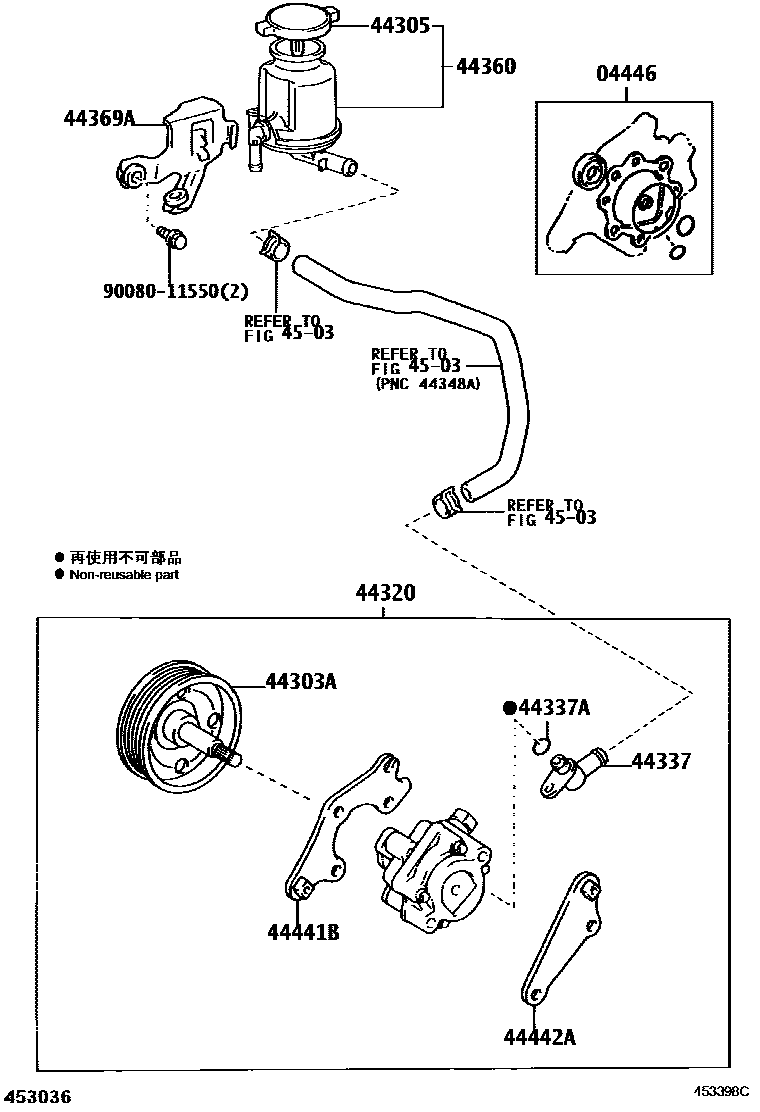

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-02070iGSL2#200612-200702

sub04446-02140

main04446-02140iGSL2#200702

main04446-04010iMCL2#200407-200612

sub04446-06040

main04446-06040iMCL2#200301-200407

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06010iGSL2#200612

main44303-06030iMCL2#200301-200612

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-04010iGSL2#200908

main44305-06030iMCL2#200301-200709

sub44305-06050

main44305-06050iGSL2#200710-200907

44320PUMP ASSY, VANE

main44310-08010iMCL2#200301-200612

main44310-08020iGSL2#200612

44337UNION, POWER STEERING SUCTION PORT

main44337-08010iMCL2#200301-200612

main44337-0E010iGSL2#200612

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90080-30034iMCL2#200301-200612

main90301-11020iGSL2#200612

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-08020iMCL2#200301-200612

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-08010iMCL2#200301-200612

44441BBRACKET, PUMP, FRONT

main44441-06040iMCL2#200301-200612

44442ABRACKET, VANE PUMP, REAR

main44442-07010iMCL2#200301-200612

4503

9008011550

main90080-11550

12 parts on this diagram · 2 diagrams in section
