FUEL INJECTION SYSTEM

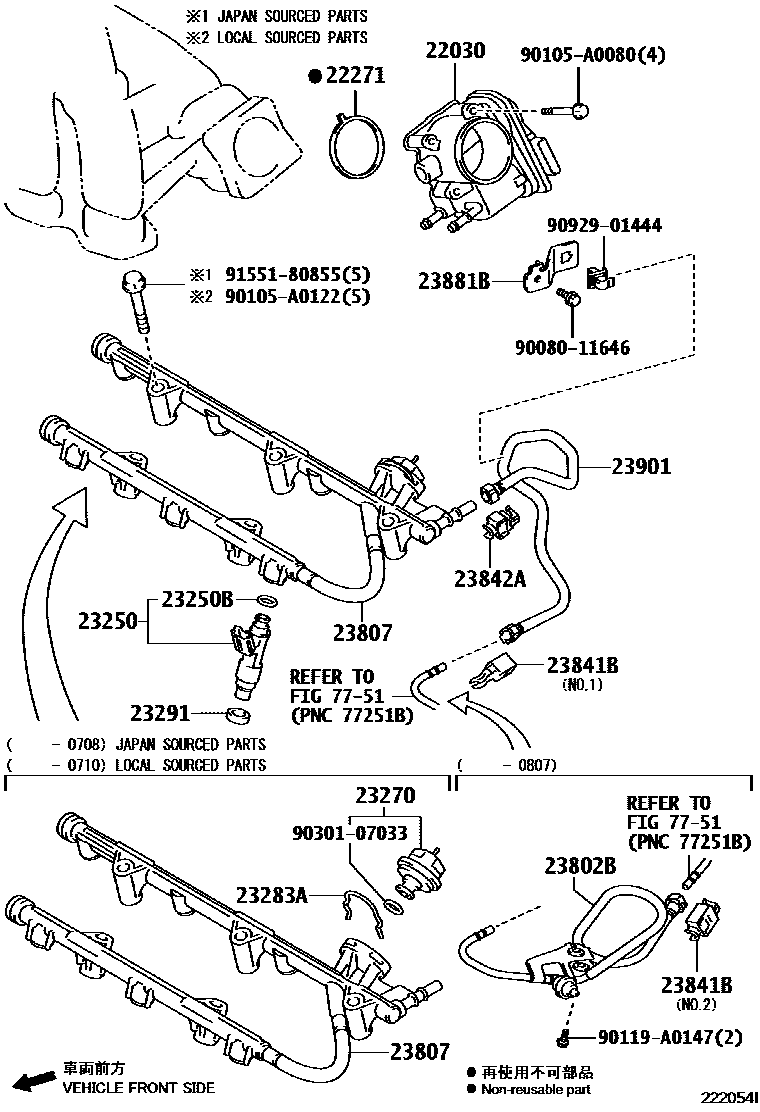

Parts diagram
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-0P050i200612
22271GASKET, THROTTLE BODY
main22271-0P020i200612
23250INJECTOR ASSY, FUEL
main23209-0A020i200301-200509
(L)
main23209-0P040i200612
(L)
main23209-20030i200301-200509
(J)
sub23209-20040
main23209-31050i200612
(J)
23250BRING, O(FOR FUEL INJECTOR)
main90301-07024i200301-200502
main90301-07033i200612
main90301-07037i200502-200509
23270DAMPER ASSY, FUEL PRESSURE PULSATION
main23270-31010i200612-200710
sub23270-31080
main23270-62010i200301-200410
sub23270-62011
main23270-62011i200410-200509
sub23207-20010
23283AHOLDER, FUEL PRESSURE REGULATOR
main23283-31010i200612-200710
23291INSULATOR, INJECTOR VIBRATION
main23291-23010i200612
main23291-41010i200301-200509
23802BPIPE SUB-ASSY, FUEL, NO.2
main23802-20030i200410-200509
main23802-31080i200612-200807
23807PIPE SUB-ASSY, FUEL DELIVERY
main23807-0P020i200710
(L)
sub23807-0P021
main23807-0P040i200612-200710
(L)
main23807-31040i200612-200708
(J)
main23807-31090i200708-200901
(J)
main23814-20020i200301-200401
sub23814-20021
main23814-20021i200401-200509
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
main23841-0P010i200612-200708
NO.1
sub23841-21050
main23841-0P040i200612-200807
NO.2
main23841-21050i200709
NO.1
main23841-28010i200301-200509
sub23841-21050
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
main23842-31040i200612
23881BBRACKET, FUEL HOSE
main23881-AD010i200612
23901TUBE SUB-ASSY, FUEL
main23901-0P030i200612
7751
9008011646
main90080-11646
90105A0080
main90105-A0080
90105A0122
main90105-A0122
90119A0147
main90119-A0147
9030107033
main90301-07033
9092901444
main90929-01444
9155180855
main91551-80855

21 parts on this diagram · 3 diagrams in section
