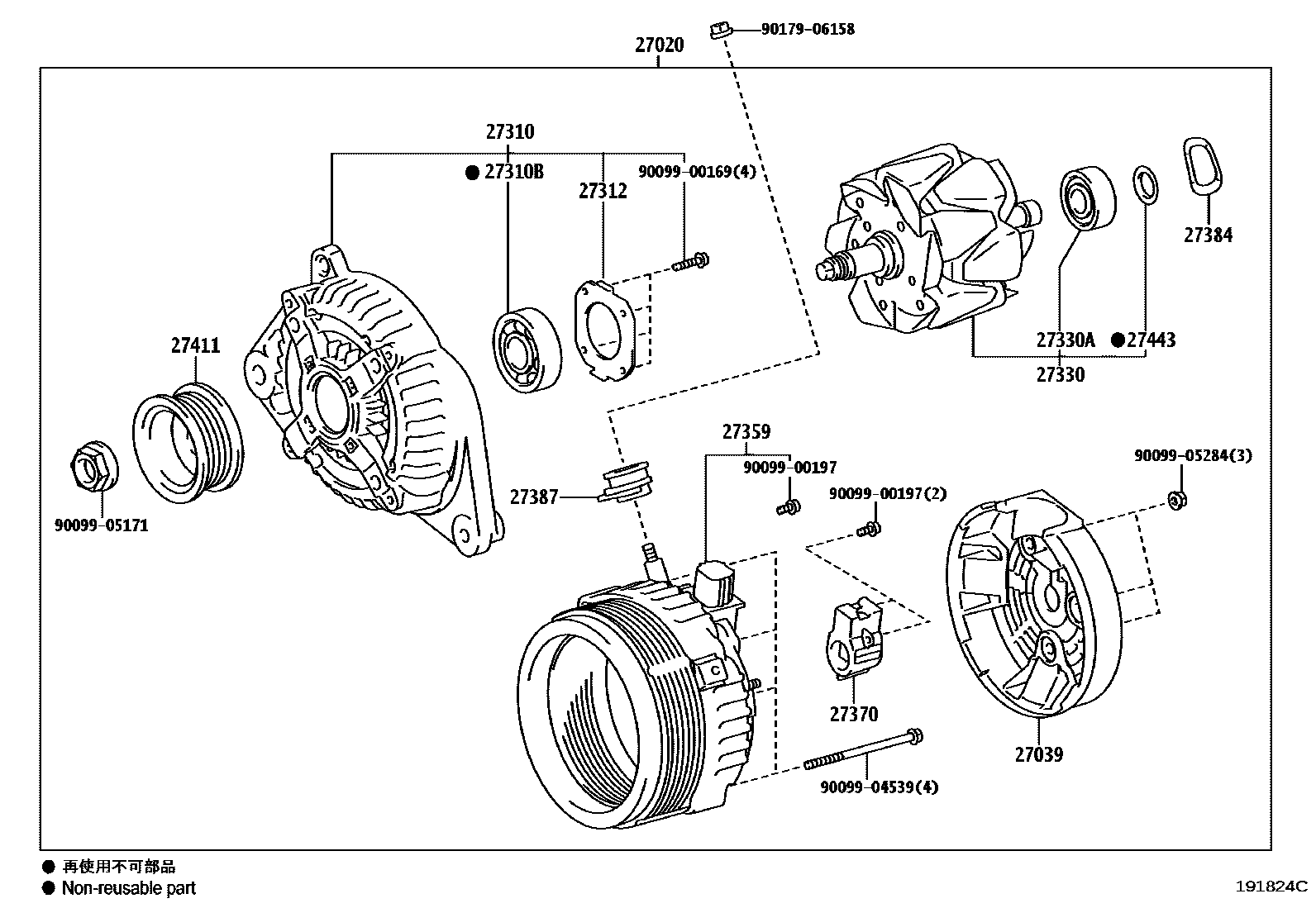

ALTERNATOR
27020ALTERNATOR ASSY
12V 150A,TOWING PACKAGE-FOR 3500LBS
12V 150A,TOWING PACKAGE-FOR 3500LBS&WINDSHIELD DEICER-W/WIPER DEICER
12V 150A,WINDSHIELD DEICER-W/WIPER DEICER
12V 150A
12V 130A
12V 150A
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
sub27330-33090
TOWING PACKAGE-FOR 3500LBS&WINDSHIELD DEICER-W/WIPER DEICER
WINDSHIELD DEICER-W/WIPER DEICER
TOWING PACKAGE-FOR 3500LBS
27330ABEARING(FOR ALTERNATOR ROTOR)
TOWING PACKAGE-FOR 3500LBS
TOWING PACKAGE-FOR 3500LBS&WINDSHIELD DEICER-W/WIPER DEICER
WINDSHIELD DEICER-W/WIPER DEICER
27359FRAME, ALTERNATOR RECTIFIER END
TOWING PACKAGE-FOR 3500LBS
TOWING PACKAGE-FOR 3500LBS&WINDSHIELD DEICER-W/WIPER DEICER
WINDSHIELD DEICER-W/WIPER DEICER
sub27360-0A110
sub27360-31370
27370HOLDER ASSY, ALTERNATOR BRUSH
TOWING PACKAGE-FOR 3500LBS
TOWING PACKAGE-FOR 3500LBS&WINDSHIELD DEICER-W/WIPER DEICER
WINDSHIELD DEICER-W/WIPER DEICER
27384WASHER
27387INSULATOR, TERMINAL
TOWING PACKAGE-FOR 3500LBS&WINDSHIELD DEICER-W/WIPER DEICER
WINDSHIELD DEICER-W/WIPER DEICER
TOWING PACKAGE-FOR 3500LBS
27411PULLEY, ALTERNATOR
27443COVER, ALTERNATOR BEARING
9009900169
main90099-00169
9009900197
main90099-00197
9009904539
main90099-04539
9009905171
main90099-05171
9009905284
main90099-05284
9017906158
main90179-06158
19 parts on this diagram · 2 diagrams in section
