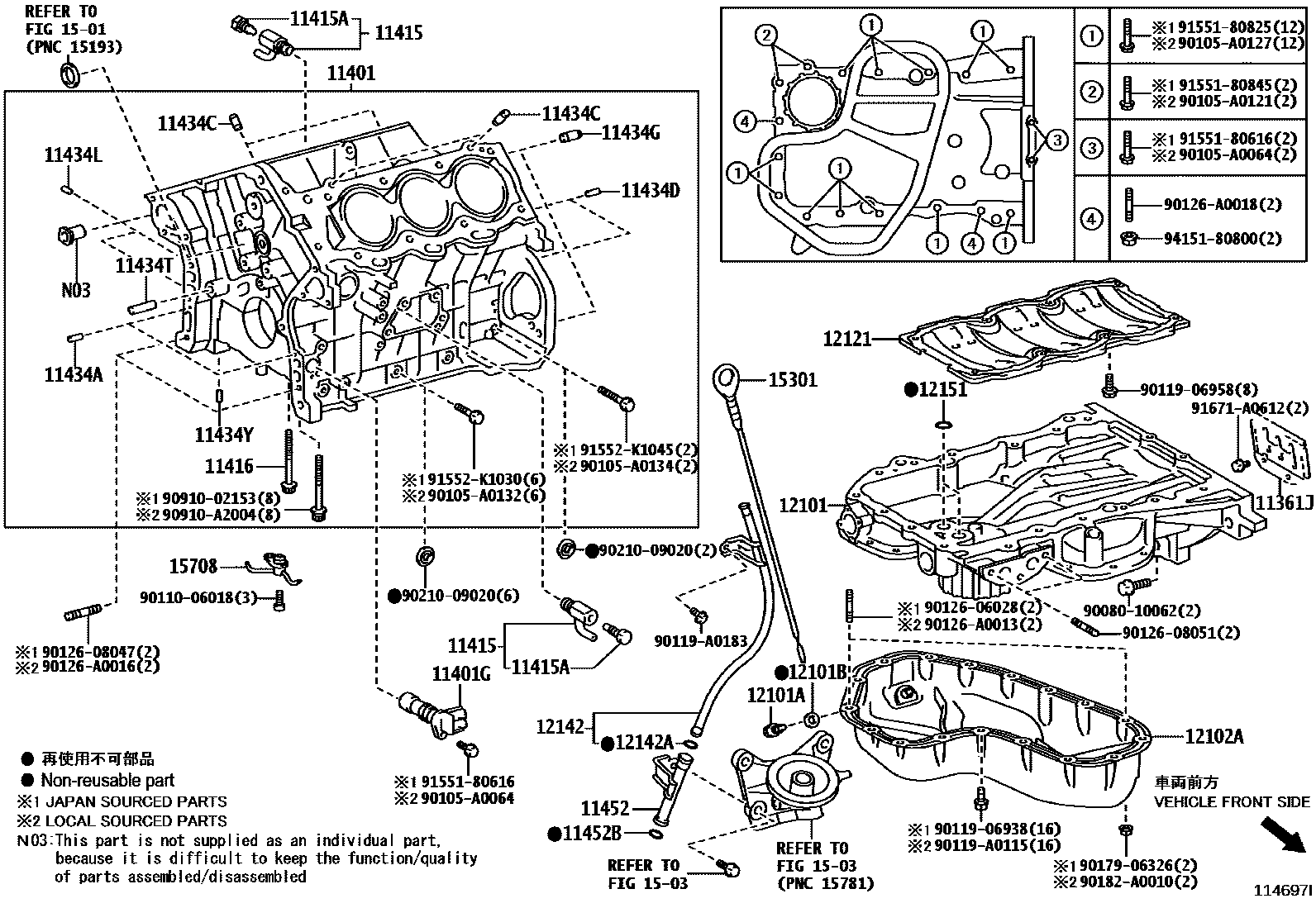

CYLINDER BLOCK
11401BLOCK SUB-ASSY, CYLINDER
11401GSENSOR, CRANK POSITION
(J)
(L)
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
(J)
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0,(J)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=18,OD=8,(J)
11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
L=12,OD=4.0
L=12,OD=4.0,(J)
11434GPIN, STRAIGHT(FOR END PLATE)
(J)
11434LPIN, STRAIGHT(FOR ENGINE MOUNTING)
(J)
11434TPIN, RING(FOR TIMING BELT IDLER BRACKET SET)
(J)
11434YPIN, STRAIGHT(FOR OIL PAN)
(J)
11452GUIDE, OIL LEVEL GAGE
(L)
(L)
(J)
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
12101PAN SUB-ASSY, OIL
*185
(L)
(L),*185
(J)
(J),*185
*132
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12102APAN SUB-ASSY, OIL, NO.2
*185
12121PLATE, OIL PAN BAFFLE, NO.1
(L)
(J)
12142GUIDE, OIL LEVEL GAGE, NO.2
12142ARING, O(FOR OIL LEVEL GAGE GUIDE, NO.2)
12151GASKET, OIL PAN
(L)
(J)
1501
1503
15301GAGE SUB-ASSY, OIL LEVEL
15708NOZZLE SUB-ASSY, OIL, NO.1
9008010062
90105A0064
main90105-A0064
90105A0121
main90105-A0121
90105A0127
main90105-A0127
90105A0132
90105A0134
main90105-A0134
9011006018
9011906938
9011906958
90119A0115
main90119-A0115
90119A0183
main90119-A0183
9012606028
9012608047
9012608051
90126A0013
main90126-A0013
90126A0016
main90126-A0016
90126A0018
main90126-A0018
9017906326
90182A0010
main90182-A0010
9021009020
9091002153
90910A2004
main90910-A2004
9155180616
9155180825
9155180845
91552K1030
91552K1045
91671A0612
9415180800
56 parts on this diagram · 3 diagrams in section
