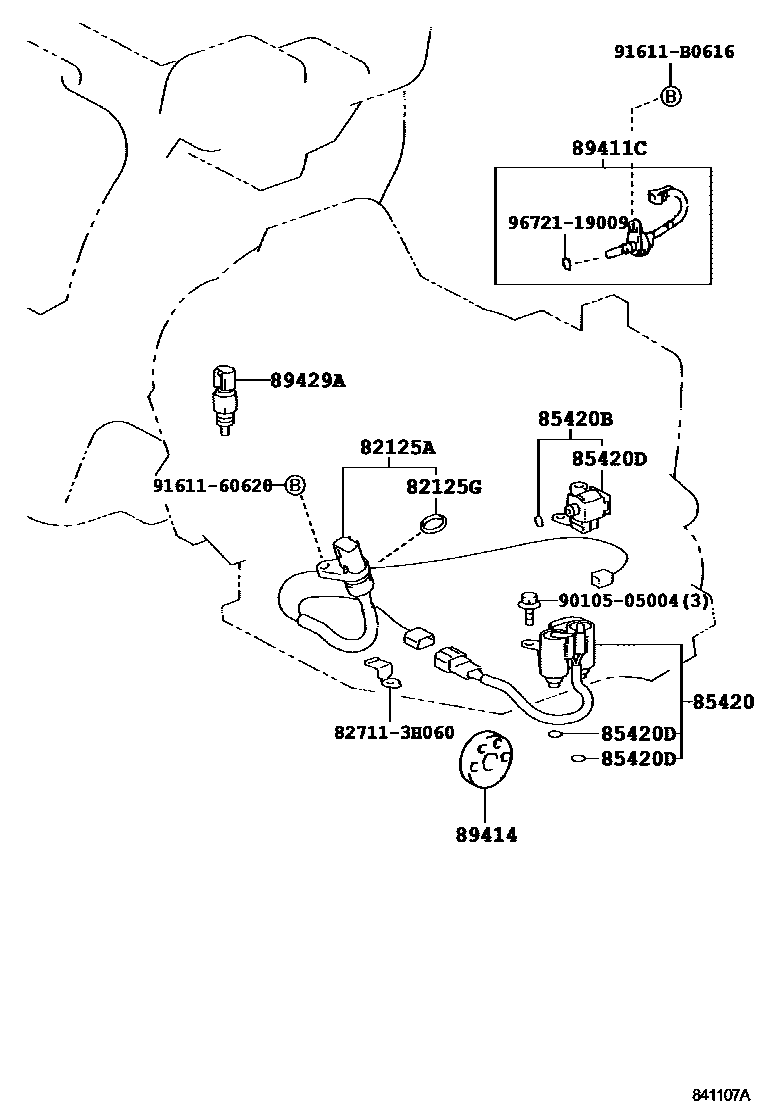

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-32050iMCL10199708-200008

main82125-45010iMCL10200008

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iMCL10200008

main96721-24018iMCL10199708-200008

85420SOLENOID ASSY, TRANSMISSION

main85420-32102iMCL10199708-200008

main85420-33010iMCL10200008

85420BSOLENOID ASSY, TRANSMISSION

main85420-32111iMCL10199708-200008

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iMCL10199708-200008

89411CSENSOR, SPEED

main89411-32020iMCL10199708-200008

main89411-33010iMCL10200008

TOYOTA

sub89413-24010

main89413-24010iMCL10200008

AISIN

89414ROTOR, SENSOR

main89414-33010iMCL10199708-200008

89429ASENSOR, TEMPERATURE

main89429-34010iMCL10199708-200008

827113H060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3H060

9010505004

main90105-05004

9161160620

main91611-60620

91611B0616

main91611-B0616

9672119009

main96721-19009

13 parts on this diagram · 2 diagrams in section
