LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69053BCYLINDER & KEY SET, SLIDE DOOR LOCK, RH
69054BCYLINDER & KEY SET, SLIDE DOOR LOCK, LH
69055BCYLINDER & KEY SET, BACK DOOR LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
W(SECURITY SYSTEM)
W(POWER WINDOW)
W(POWER WINDOW)
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY
SUB KEY
69573PAD, IGNITION SWITCH LOCK CYLINDER
W(SECURITY SYSTEM)
W(POWER WINDOW)
69759BSNAP, REAR DOOR LOCK CYLINDER
RH
LH
69759CSNAP, BACK DOOR LOCK CYLINDER
8121
9008010079
main90080-10079
9010506082
main90105-06082
9010506228
main90105-06228
9015140005
main90151-40005

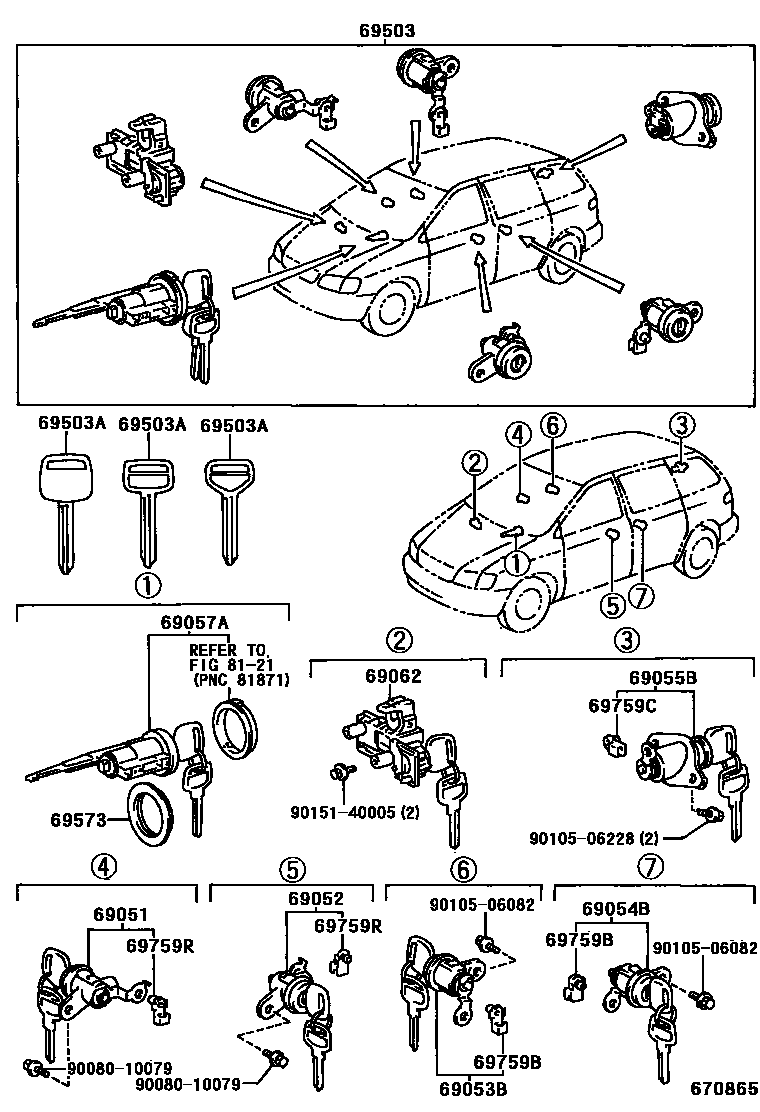

18 parts on this diagram · 2 diagrams in section
