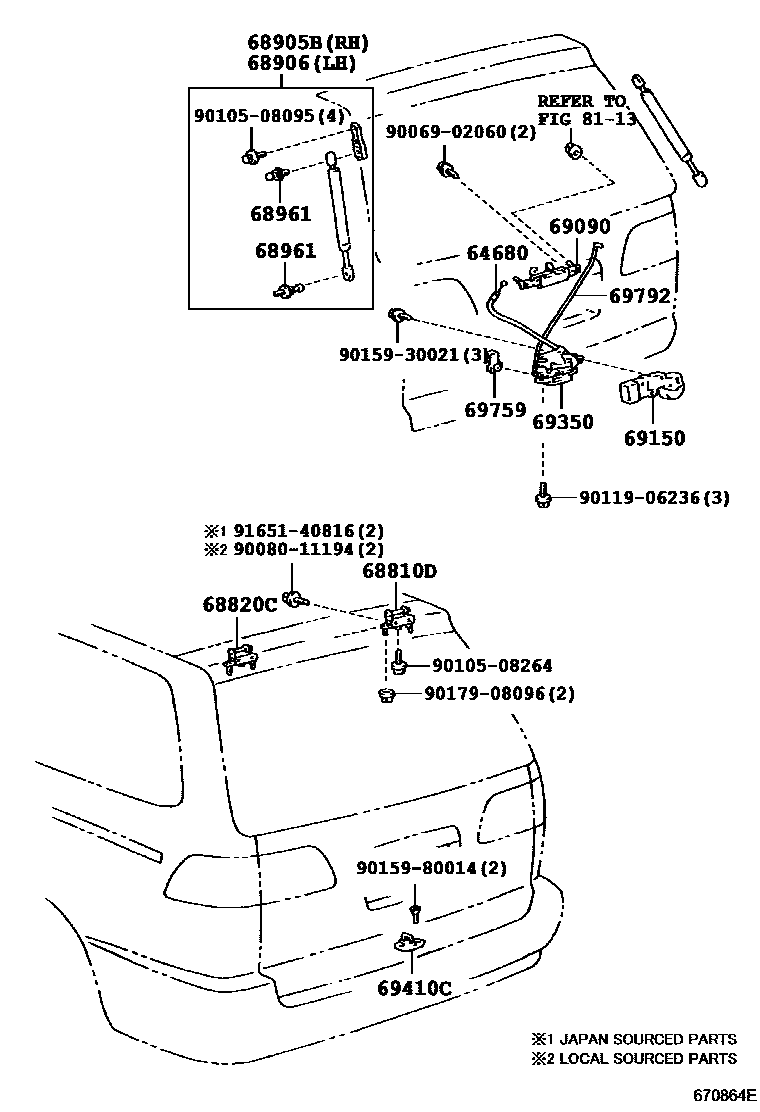

BACK DOOR LOCK & HINGE

64680CABLE ASSY, BACK DOOR LOCK CONTROL

main64680-08010iMCL10199708

68810DHINGE ASSY, BACK DOOR, RH

main68810-08010iMCL10199708

68820CHINGE ASSY, BACK DOOR, LH

main68820-08010iMCL10199708

68905BSTAY SUB-ASSY, BACK DOOR, RH

main68905-09015iMCL10199708

sub68905-08010

sub68955-08010

sub90105-08095

68906STAY SUB-ASSY, BACK DOOR, LH

main68906-09015iMCL10199708

sub68905-08010

sub68956-08010

sub90105-08095

68961BOLT, BACK DOOR STAY

main68961-45010iMCL10199708

sub68961-30020

69090HANDLE ASSY, BACK DOOR, OUTSIDE

main69090-08010iMCL10199708

sub69090-0C080

69150ACTUATOR ASSY, BACK DOOR LOCK

main69150-08010iMCL10..WG199708

main69150-08020iMCL10..LE199708

W(SECURITY SYSTEM)

69350LOCK ASSY, BACK DOOR

main69301-08010iMCL10..WG199708

W(POWER DOOR LOCK)

main69350-08030iMCL10..CE199708

69410CPLATE ASSY, BACK DOOR LOCK STRIKER

main69410-08020iMCL10199708

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-AA030iMCL10199708

69792LINK, BACK DOOR LOCK LOCKING

main69792-08010iMCL10199708

8113

9006902060

main90069-02060

9008011194

main90080-11194

9010508095

main90105-08095

9010508264

main90105-08264

9011906236

main90119-06236

9015930021

main90159-30021

9015980014

main90159-80014

9017908096

main90179-08096

9165140816

main91651-40816

22 parts on this diagram · 1 diagram in section
