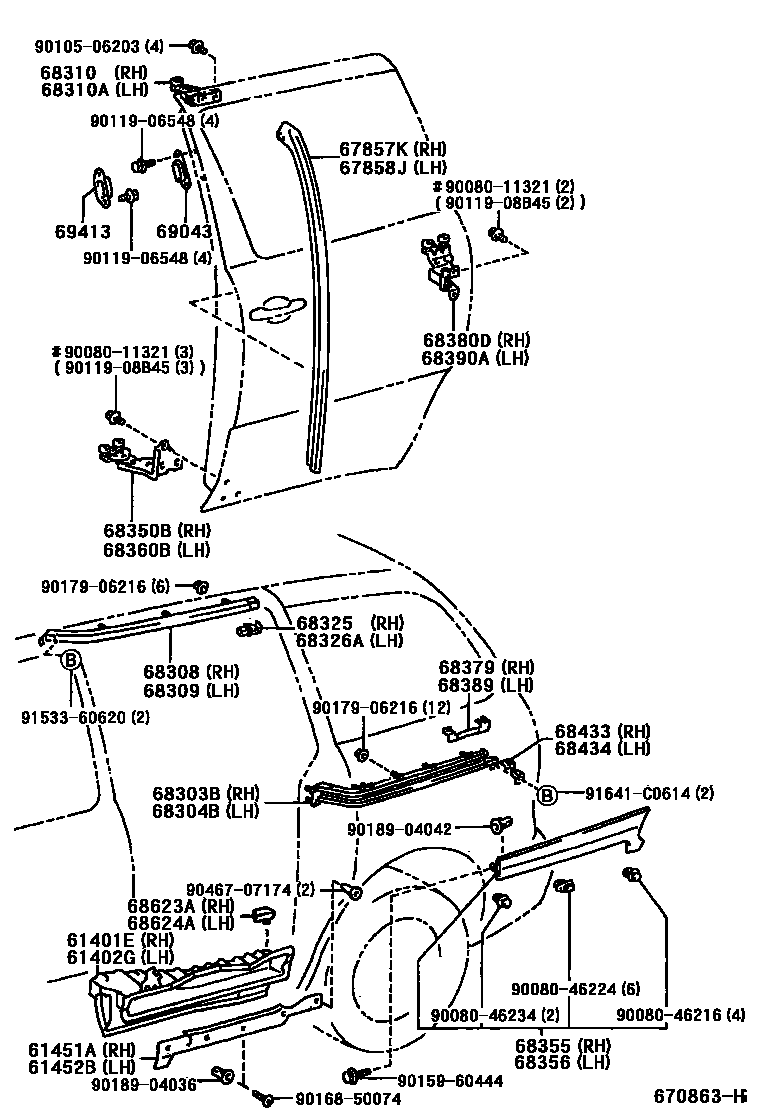

SLIDE ROLLER & RAIL
61401ERAIL SUB-ASSY, NO.1 LOWER OUTER, RH
61402GRAIL SUB-ASSY, NO.1 LOWER OUTER, LH
61451APLATE, STEP, LOWER RH
61452BPLATE, STEP, LOWER LH
67857KPROTECTOR, SLIDE DOOR PANEL
67858JPROTECTOR, SLIDE DOOR RAIL, LH
68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH
68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH
68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH
68310ROLLER ASSY, SLIDE DOOR, UPPER
68310AROLLER ASSY, SLIDE DOOR, UPPER, LH
68325CUSHION, SLIDE DOOR UPPER RAIL, RH
WHITE
PINK
YELLOW
W(AUTO SLIDE DOOR & EASY CLOSER),LIGHT BLUE
LIGHT GREEN
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH),LIGHT GREEN
W(AUTO SLIDE DOOR & EASY CLOSER),LIGHT GREEN
68326ACUSHION, SLIDE DOOR UPPER RAIL, LH
WHITE
PINK
YELLOW
68350BROLLER ASSY, SLIDE DOOR, LOWER RH
68355GARNISH, SLIDE DOOR CENTER RAIL, RH
SUPER WHITE 2,040
SILVER M.M.,1D7
SILVER ME.,1C8
BLACK,202
RED MM,3K4
DK.RED M.M.,3M6
DK. RED MC.,3N6
DK. RED MC.,3P5
BEIGE M.M.,4N7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
GREEN MC.,6R1
BLUE M.M.,8L9
BLUE M.M.,8N7
DK.BLUE MC.,8Q0
LT.PURPLE ME.OP.,931
68356GARNISH, SLIDE DOOR CENTER RAIL, LH
SUPER WHITE 2,040
SILVER M.M.,1D7
SILVER ME.,1C8
BLACK,202
RED MM,3K4
DK.RED M.M.,3M6
DK. RED MC.,3N6
DK. RED MC.,3P5
BEIGE M.M.,4N7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
GREEN MC.,6R1
BLUE M.M.,8L9
BLUE M.M.,8N7
DK.BLUE MC.,8Q0
LT.PURPLE ME.OP.,931
68360BROLLER ASSY, SLIDE DOOR, LOWER LH
68379SPRING, SLIDE DOOR CATCH, RH
68380DHINGE ASSY, SLIDE DOOR, CENTER RH
W(AUTO SLIDE DOOR & EASY CLOSER)
68389SPRING, SLIDE DOOR CATCH, LH
68390AHINGE ASSY, SLIDE DOOR, CENTER LH
W(AUTO SLIDE DOOR & EASY CLOSER)
68433PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, RH
68434PROTECTOR, FRONT SLIDE DOOR CENTER RAIL, LH
68623ACOVER, REAR DOOR CHECK, RH
68624ACOVER, REAR DOOR CHECK, LH
69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE
W(AUTO SLIDE DOOR & EASY CLOSER),LH
W(AUTO SLIDE DOOR & EASY CLOSER),RH
W(AUTO SLIDE DOOR & EASY CLOSER)
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)
69413STOP, SLIDE DOOR DOWN MALE
W(AUTO SLIDE DOOR & EASY CLOSER),LH
W(AUTO SLIDE DOOR & EASY CLOSER)
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)
W(AUTO SLIDE DOOR & EASY CLOSER),RH
9008011321
main90080-11321
9008046216
main90080-46216
9008046224
main90080-46224
9008046234
main90080-46234
9010506203
main90105-06203
9011906548
main90119-06548
9011908B45
main90119-08B45
9015960444
main90159-60444
9016850074
main90168-50074
9017906216
main90179-06216
9018904036
main90189-04036
9018904042
main90189-04042
9046707174
main90467-07174
9153360620
main91533-60620
91641C0614
main91641-C0614
43 parts on this diagram · 2 diagrams in section
