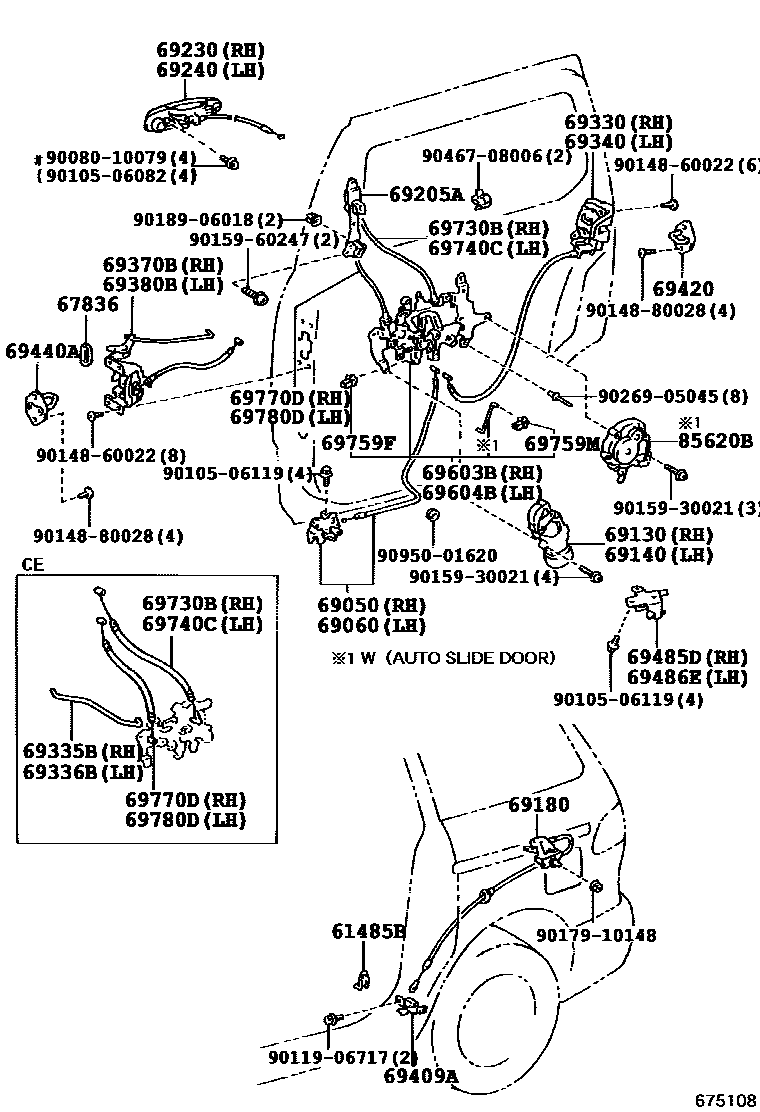

REAR DOOR LOCK & HANDLE
61485BPLATE, LOWER RAIL
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
W(AUTO SLIDE DOOR & EASY CLOSER)
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
W(AUTO SLIDE DOOR & EASY CLOSER) OR W(SECURITY SYSTEM)
W(AUTO SLIDE DOOR & EASY CLOSER)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
W(AUTO SLIDE DOOR & EASY CLOSER) OR W(SECURITY SYSTEM)
W(AUTO SLIDE DOOR & EASY CLOSER)
69180CONTROL ASSY, SLIDE DOOR HALF OPEN STOPPER
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
LT.BLUISH GRAY,TRIM1#
MD.OAK,TRIM4#
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
SILVER M.M.,1D7
RED M.M.,3K4
DK. RED MC.,3N6
BEIGE M.M.,4N7
BEIGE M.M.,4Q2
DK.GREEN M.M.,6P2
GREEN MC.,6R1
BLUE M.M.,8L9
BLUE M.M.,8N7
DK.BLUE MC.,8Q0
W(POWER DOOR LOCK),SUPER WHITE 2,040
W(POWER DOOR LOCK),SILVER M.M.,1D7
W(POWER DOOR LOCK),SILVER ME.,1C8
W(POWER DOOR LOCK),BLACK,202
W(POWER DOOR LOCK),RED M.M.,3K4
W(POWER DOOR LOCK),DK.RED M.M.,3M6
W(POWER DOOR LOCK),DK. RED MC.,3N6
W(POWER DOOR LOCK),DK. RED MC.,3P5
W(POWER DOOR LOCK),BEIGE M.M.,4N7
W(POWER DOOR LOCK),BEIGE M.M.,4Q2
W(POWER DOOR LOCK),GR.GREEN ME.,6M3
W(POWER DOOR LOCK),DK.GREEN M.M.,6P2
W(POWER DOOR LOCK),GREEN MC.,6R1
W(POWER DOOR LOCK),BLUE M.M.,8L9
W(POWER DOOR LOCK),BLUE M.M.,8N7
W(POWER DOOR LOCK),DK.BLUE MC.,8Q0
W(POWER DOOR LOCK),LT.PURPLE ME.OP.,931
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
SUPER WHITE 2,040
SILVER M.M.,1D7
BLACK,202
RED M.M.,3K4
DK.RED M.M.,3M6
DK. RED MC.,3N6
BEIGE M.M.,4N7
BEIGE M.M.,4Q2
GR.GREEN ME.,6M3
DK.GREEN M.M.,6P2
GREEN MC.,6R1
BLUE M.M.,8L9
BLUE M.M.,8N7
DK.BLUE MC.,8Q0
W(POWER DOOR LOCK),SUPER WHITE 2,040
W(POWER DOOR LOCK),SILVER M.M.,1D7
W(POWER DOOR LOCK),SILVER ME.,1C8
W(POWER DOOR LOCK),BLACK,202
W(POWER DOOR LOCK),RED M.M.,3K4
W(POWER DOOR LOCK),DK.RED M.M.,3M6
W(POWER DOOR LOCK),DK. RED MC.,3N6
W(POWER DOOR LOCK),DK. RED MC.,3P5
W(POWER DOOR LOCK),BEIGE M.M.,4N7
W(POWER DOOR LOCK),BEIGE M.M.,4Q2
W(POWER DOOR LOCK),GR.GREEN ME.,6M3
W(POWER DOOR LOCK),DK.GREEN M.M.,6P2
W(POWER DOOR LOCK),GREEN MC.,6R1
W(POWER DOOR LOCK),BLUE M.M.,8L9
W(POWER DOOR LOCK),BLUE M.M.,8N7
W(POWER DOOR LOCK),DK.BLUE MC.,8Q0
W(POWER DOOR LOCK),LT.PURPLE ME.OP.,931
69330LOCK ASSY, REAR DOOR, RH
W(AUTO SLIDE DOOR & EASY CLOSER)
69335BLINK, SLIDE DOOR OUTSIDE LOCKING, RH
69336BLINK, SLIDE DOOR OUTSIDE LOCKING, LH
69340LOCK ASSY, REAR DOOR, LH
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
69420PLATE ASSY, REAR DOOR LOCK STRIKER
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486ESTRIKER, SLIDE DOOR OPEN, LH
69603BCONTROL SUB-ASSY, SLIDE DOOR LOCK REMOTE, RH
W(AUTO SLIDE DOOR & EASY CLOSER)
69604BCONTROL SUB-ASSY, SLIDE DOOR LOCK REMOTE, LH
W(AUTO SLIDE DOOR = LH)
69730BCABLE ASSY, SLIDE DOOR LOCK REMOTE CONTROL, RH
69740CCABLE ASSY, SLIDE DOOR LOCK REMOTE CONTROL, LH
69759FSNAP, REAR DOOR LOCK CONTROL LINK
PINK
RH,PINK
LH,YELLOW
W(AUTO SLIDE DOOR & EASY CLOSER),YELLOW
W(AUTO SLIDE DOOR & EASY CLOSER),RH,YELLOW
69759MSNAP, DOOR LOCK CONTROL LINK
RH
LH
69770DCABLE ASSY, SLIDE DOOR INSIDE LOCKING, RH
69780DCABLE ASSY, SLIDE DOOR INSIDE LOCKING, LH
85620BMOTOR ASSY, SLIDE DOOR LOCK RELEASE
9008010079
main90080-10079
9010506082
9010506119
9011906717
9014860022
9014880028
9015930021
9015960247
9017910148
9018906018
9026905045
9046708006
9095001620
43 parts on this diagram · 1 diagram in section
