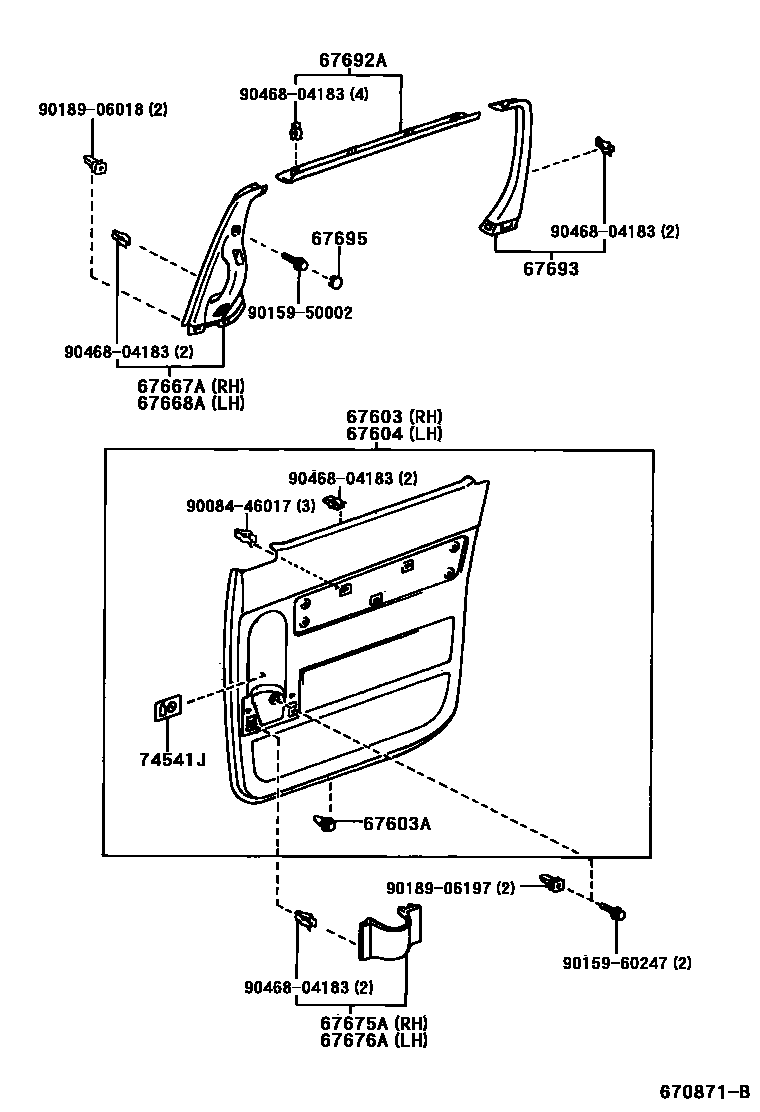

REAR DOOR PANEL & GLASS

0001 1 0002 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67680-08010-B0iMCL10..WG..CE199708-200008

LT.BLUISH GRAY,TRIM1#

main67680-08010-E0iMCL10..CE199708-200008

MD.OAK,TRIM4#

main67680-08020-B0iMCL10..LE199708-200008

LT.BLUISH GRAY,TRIM1#

main67680-08020-E0iMCL10..LE199708-200008

MD.OAK,TRIM4#

main67680-08030-B0iMCL10..LE199708

LEATHER SEAT,LT.BLUISH GRAY,TRIM1#

main67680-08030-E0iMCL10..LE199708

LEATHER SEAT,MD.OAK,TRIM4#

main67680-08040-B0iMCL10..CE200008

LT. BLUISH GRAY,TRIM1#

main67680-08040-E0iMCL10..CE200008

MD.OAK,TRIM4#

main67680-08050-B0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,LT. BLUISH GRAY,TRIM1#

main67680-08050-E0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,MD.OAK,TRIM4#

main67680-08060-B0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,LT. BLUISH GRAY,TRIM1#

main67680-08060-E0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,MD.OAK,TRIM4#

67603ARETAINER(FOR REAR DOOR TRIM BOARD)

main90467-10161×10iMCL10..4D199708-200008

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67690-08010-B0iMCL10..5D..CE199708-200008

LT.BLUISH GRAY,TRIM1#

sub67690-08900

main67690-08010-E0iMCL10..5D..CE199708-200008

MD.OAK,TRIM4#

sub67690-08900

main67690-08020-B0iMCL10..5D..LE199708-200008

LT.BLUISH GRAY,TRIM1#

main67690-08020-E0iMCL10..5D..LE199708-200008

MD.OAK,TRIM4#

main67690-08030-B0iMCL10..5D..LE199708

LEATHER SEAT,LT.BLUISH GRAY,TRIM1#

main67690-08030-E0iMCL10..5D..LE199708

LEATHER SEAT,MD.OAK,TRIM4#

main67690-08040-B0iMCL10..CE200008

LT. BLUISH GRAY,TRIM1#

main67690-08040-E0iMCL10..CE200008

MD.OAK,TRIM4#

main67690-08050-B0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,LT. BLUISH GRAY,TRIM1#

main67690-08050-E0iMCL10..LE200008

DOOR TRIM=TYPE A-*104,MD.OAK,TRIM4#

main67690-08060-B0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,LT. BLUISH GRAY,TRIM1#

main67690-08060-E0iMCL10..LE..USA200107

DOOR TRIM=TYPE B-*104,MD.OAK,TRIM4#

67667AGARNISH, SLIDE DOOR WINDOW, RH

main67667-08010-B0iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main67667-08010-E0iMCL10199708

MD.OAK,TRIM4#

67668AGARNISH, SLIDE DOOR WINDOW, LH

main67668-08010-B0iMCL10..5D199708

LT.BLUISH GRAY,TRIM1#

main67668-08010-E0iMCL10..5D199708

MD.OAK,TRIM4#

67675APOCKET, SLIDE DOOR TRIM, RH

main67675-08010-B0iMCL10..WG199708

LT.BLUISH GRAY,TRIM1#

main67675-08010-E0iMCL10199708

MD.OAK,TRIM4#

67676APOCKET, SLIDE DOOR TRIM, LH

main67676-08010-B0iMCL10..5D199708

LT.BLUISH GRAY,TRIM1#

main67676-08010-E0iMCL10..5D199708

MD.OAK,TRIM4#

67692ACOVER, SLIDE DOOR TRIM, UPPER NO.1

main67692-08010-B0iMCL10..WG..4D199708-200008

LT.BLUISH GRAY,TRIM1#

main67692-08010-E0iMCL10..4D199708-200008

MD.OAK,TRIM4#

main67692-08020-B0iMCL10..5D199708

LT.BLUISH GRAY,TRIM1#,LH

main67692-08020-E0iMCL10..5D199708

MD.OAK,TRIM4#,LH

67693COVER, SLIDE DOOR TRIM BOARD

main67693-08010-B0iMCL10..WG..4D199708-200008

LT.BLUISH GRAY,TRIM1#

main67693-08010-E0iMCL10..4D199708-200008

MD.OAK,TRIM4#

main67693-08020-B0iMCL10..5D199708

LT.BLUISH GRAY,TRIM1#,LH

main67693-08020-E0iMCL10..5D199708

MD.OAK,TRIM4#,LH

67695COVER, SLIDE DOOR TRIM, UPPER NO.2

main67695-08010-B0×2iMCL10..5D199708

LT.BLUISH GRAY,TRIM1#

main67695-08010-E0iMCL10..4D199708-200008

MD.OAK,TRIM4#

74541JLABEL, BOTTLE HOLDER INFORMATION

main74541-08010iMCL10..4D..LE199708-200008

LEATHER SEAT

9008446017

main90084-46017

9015950002

main90159-50002

9015960247

main90159-60247

9018906018

main90189-06018

9018906197

main90189-06197

9046804183

main90468-04183

17 parts on this diagram · 2 diagrams in section
