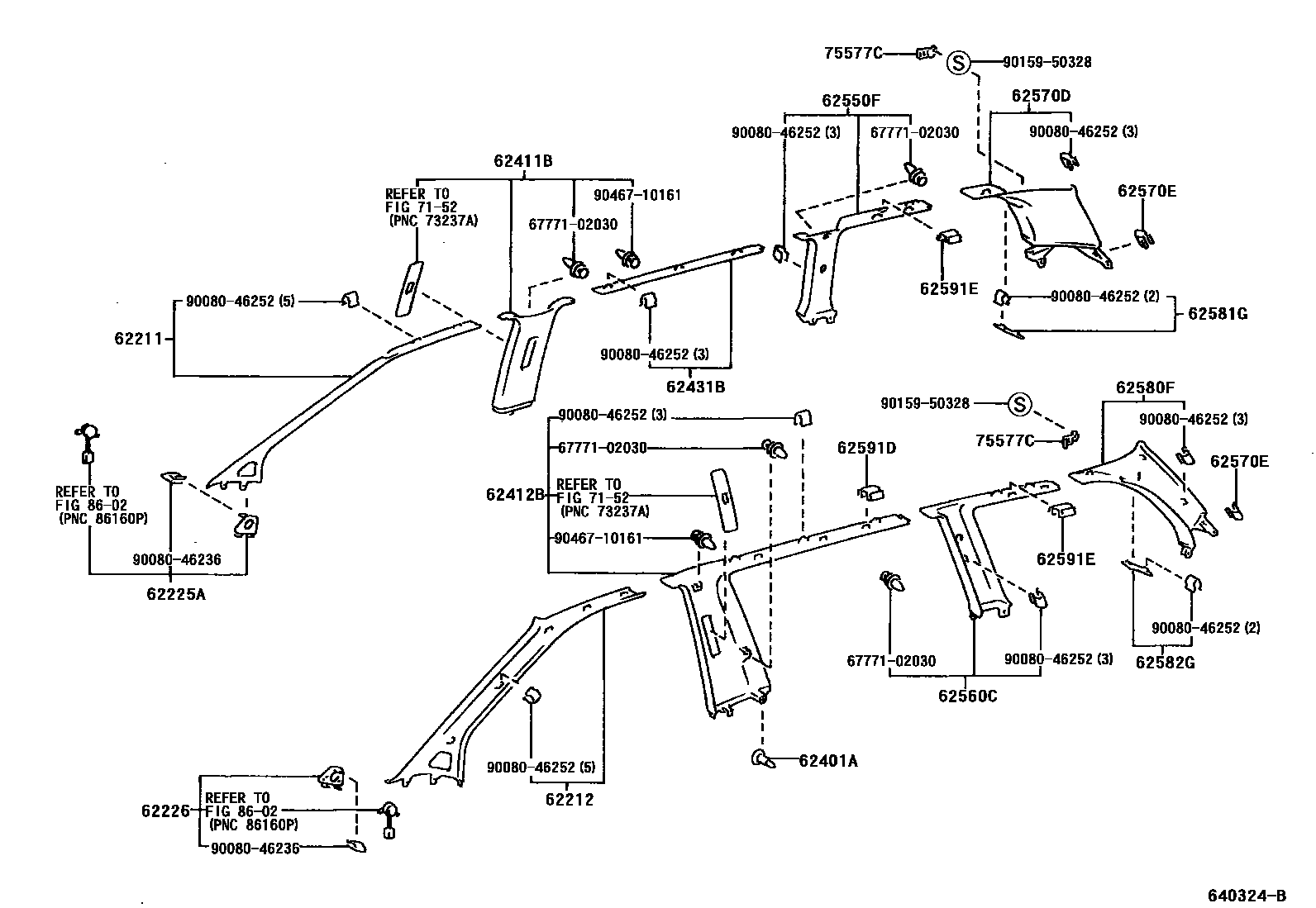

INSIDE TRIM BOARD

0001 1 0002 1 0003 1 0004 1 0005 1W(AUTO SLIDE DOOR = RH & LH)

62211GARNISH, FRONT PILLAR, RH

main62211-08010-B0iMCL10..WG199708-200008

LT.BLUISH GRAY,TRIM1#

main62211-08010-E0iMCL10199708-200008

MD.OAK,TRIM4#

main62211-08020-B0iMCL10..LE199708-200008

W(TWEETER SPEAKER),LT.BLUISH GRAY,TRIM1#

main62211-08020-E0iMCL10..LE199708-200008

W(TWEETER SPEAKER),MD.OAK,TRIM4#

main62211-08030-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62211-08030-E0iMCL10200008

MD.OAK,TRIM4#

main62211-08040-B0iMCL10..LE200008

W(TWEETER SPEAKER),LT. BLUISH GRAY,TRIM1#

main62211-08040-E0iMCL10..LE200008

W(TWEETER SPEAKER),MD.OAK,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-08010-B0iMCL10..WG199708-200008

LT.BLUISH GRAY,TRIM1#

main62212-08010-E0iMCL10199708-200008

MD.OAK,TRIM4#

main62212-08020-B0iMCL10..LE199708-200008

W(TWEETER SPEAKER),LT.BLUISH GRAY,TRIM1#

main62212-08020-E0iMCL10..LE199708-200008

W(TWEETER SPEAKER),MD.OAK,TRIM4#

main62212-08030-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62212-08030-E0iMCL10200008

MD.OAK,TRIM4#

main62212-08040-B0iMCL10..LE200008

W(TWEETER SPEAKER),LT. BLUISH GRAY,TRIM1#

main62212-08040-E0iMCL10..LE200008

W(TWEETER SPEAKER),MD.OAK,TRIM4#

62225AGARNISH, FRONT PILLAR, LOWER RH

main62211-08050-B0iMCL10..LE200008

LT. BLUISH GRAY,TRIM1#

main62211-08050-E0iMCL10..LE200008

MD.OAK,TRIM4#

main62225-08010-B0iMCL10..LE199708-200008

LT.BLUISH GRAY,TRIM1#

main62225-08010-E0iMCL10..LE199708-200008

MD.OAK,TRIM4#

62226GARNISH, FRONT PILLAR, LOWER LH

main62212-08050-B0iMCL10..LE200008

LT. BLUISH GRAY,TRIM1#

main62212-08050-E0iMCL10..LE200008

MD.OAK,TRIM4#

main62226-08010-B0iMCL10..LE199708-200008

LT.BLUISH GRAY,TRIM1#

main62226-08010-E0iMCL10..LE199708-200008

MD.OAK,TRIM4#

62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)

main90467-07041-C0iMCL10..V199708-200008

BLACK,TRIM4#

sub90467-07041

main90467-07041-C0iMCL10..V199708-200008

BLACK,TRIM1#,4#

sub90467-07041

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-08010-B0iMCL10..WG199708-200008

LT.BLUISH GRAY,TRIM1#

main62411-08010-E0iMCL10199708-200008

MD.OAK,TRIM4#

main62411-08020-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62411-08020-E0iMCL10200008

MD.OAK,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-08010-B0iMCL10..WG..4D199708-200008

LT.BLUISH GRAY,TRIM1#

main62412-08010-E0iMCL10..4D199708-200008

MD.OAK,TRIM4#

main62412-08020-B0iMCL10..5D199708-200008

LT.BLUISH GRAY,TRIM1#

main62412-08020-E0iMCL10..5D199708-200008

MD.OAK,TRIM4#

main62412-08030-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62412-08030-E0iMCL10200008

MD.OAK,TRIM4#

62431BGARNISH, ROOF SIDE RAIL, NO.1 RH

main62431-08010-B0iMCL10..WG199708-200008

LT.BLUISH GRAY,TRIM1#

main62431-08010-E0iMCL10199708-200008

MD.OAK,TRIM4#

main62431-08020-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62431-08020-E0iMCL10200008

MD.OAK,TRIM4#

62550FGARNISH ASSY, REAR WINDOW SIDE, RH

main62550-08010-B0iMCL10..WG199708-200008

LT.BLUISH GRAY,TRIM1#

sub62550-08020

main62550-08010-E0iMCL10199708-200008

MD.OAK,TRIM4#

sub62550-08020

main62550-08020-B0iMCL10..LE199708-200008

W(CAPTAIN SEAT),LT.BLUISH GRAY,TRIM1#

main62550-08020-E0iMCL10..LE199708-200008

W(CAPTAIN SEAT),MD.OAK,TRIM4#

main62550-08020-E0iMCL10..V199708-200008

W(BENCH SEAT),MD.OAK,TRIM4#

main62550-08030-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62550-08030-E0iMCL10200008

MD.OAK,TRIM4#

main62550-08040-B0iMCL10200008

W(CAPTAIN SEAT),LT. BLUISH GRAY,TRIM1#

main62550-08040-E0iMCL10200008

W(CAPTAIN SEAT),MD.OAK,TRIM4#

62560CGARNISH ASSY, REAR WINDOW SIDE, LH

main62560-08010-B0iMCL10..WG..4D199708-200008

LT.BLUISH GRAY,TRIM1#

main62560-08010-E0iMCL10..4D199708-200008

MD.OAK,TRIM4#

main62560-08020-B0iMCL10..5D199708-200008

LT.BLUISH GRAY,TRIM1#

main62560-08020-E0iMCL10..5D199708-200008

MD.OAK,TRIM4#

main62560-08030-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62560-08030-E0iMCL10200008

MD.OAK,TRIM4#

main62560-08040-B0iMCL10..LE200008

W(CAPTAIN SEAT),LT. BLUISH GRAY,TRIM1#

main62560-08040-E0iMCL10..LE200008

W(CAPTAIN SEAT),MD.OAK,TRIM4#

62570DGARNISH ASSY, REAR WINDOW SIDE, NO.2 RH

main62570-08010-B0iMCL10..WG..4D199708-200008

LT.BLUISH GRAY,TRIM1#

main62570-08010-E0iMCL10..4D199708-200008

MD.OAK,TRIM4#

main62570-08020-B0iMCL10..5D199708-200008

LT.BLUISH GRAY,TRIM1#

main62570-08020-E0iMCL10..5D199708-200008

MD.OAK,TRIM4#

main62570-08030-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62570-08030-E0iMCL10200008

MD.OAK,TRIM4#

62570ECLIP, REAR WINDOW SIDE GARNISH

main90467-07041-C0iMCL10..V199708-200008

BLACK,TRIM4#

sub90467-07041

main90467-07041-C0iMCL10..WG199708

BLACK,TRIM1#,4#

sub90467-07041

62580FGARNISH ASSY, REAR WINDOW SIDE, NO.2 LH

main62580-08010-B0iMCL10..WG199708-200008

LT.BLUISH GRAY,TRIM1#

main62580-08010-E0iMCL10199708-200008

MD.OAK,TRIM4#

main62580-08020-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62580-08020-E0iMCL10200008

MD.OAK,TRIM4#

62581GCOVER, QUARTER PILLAR, RH

main62581-08010-B0iMCL10..WG..4D199708-200008

LT.BLUISH GRAY,TRIM1#

main62581-08010-E0iMCL10..4D199708-200008

MD.OAK,TRIM4#

main62581-08020-B0iMCL10..5D199708-200008

LT.BLUISH GRAY,TRIM1#

main62581-08020-E0iMCL10..5D199708-200008

MD.OAK,TRIM4#

main62581-08030-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62581-08030-E0iMCL10200008

MD.OAK,TRIM4#

62582GCOVER, QUARTER PILLAR, LH

main62582-08010-B0iMCL10..WG199708-200008

LT.BLUISH GRAY,TRIM1#

main62582-08010-E0iMCL10199708-200008

MD.OAK,TRIM4#

main62582-08020-B0iMCL10200008

LT. BLUISH GRAY,TRIM1#

main62582-08020-E0iMCL10200008

MD.OAK,TRIM4#

62591DPLATE, SIDE TRIM BASE, NO.1

main62591-08010iMCL10..4D199708-200008

62591EPLATE, SIDE TRIM BASE, NO.2

main62591-08010iMCL10..4D..LE199708-200008

W(CAPTAIN SEAT)

main62591-08010iMCL10199708

7152

75577CBRACKET, ROOF SIDE GARNISH

main75577-08010iMCL10199708

8602

6777102030WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-02030

9008046236

main90080-46236

9008046252

main90080-46252

9015950328

main90159-50328

9046710161

main90467-10161

25 parts on this diagram · 5 diagrams in section
