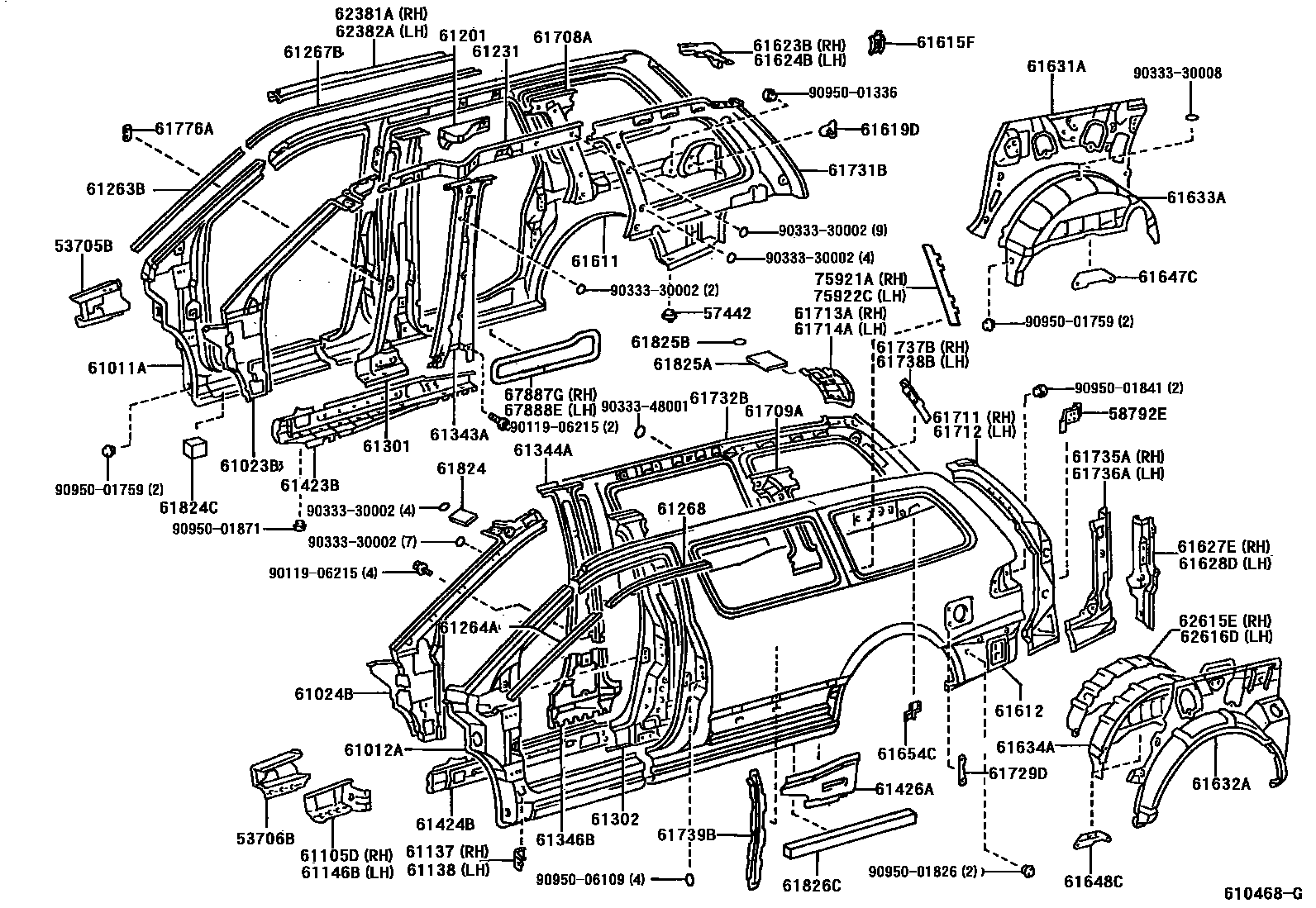

SIDE MEMBER
53705BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706BMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
57442PLUG, STEP PANEL HOLE
58792EREINFORCEMENT, JACK BRACKET
61011APILLAR SUB-ASSY, NO.1 RH
61012APILLAR SUB-ASSY, NO.2 RH
61105DPANEL SUB-ASSY, SIDE, NO.3 RH
61137REINFORCEMENT, FRONT PILLAR, OUTER RH
61138REINFORCEMENT, FRONT PILLAR, OUTER LH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61201RAIL SUB-ASSY, ROOF SIDE, RH
61263BCHANNEL, ROOF DRIP SIDE, FRONT RH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61267BCHANNEL, ROOF DRIP SIDE,REAR RH
61268CHANNEL, ROOF DRIP SIDE, REAR LH
61301PILLAR SUB-ASSY, CENTER BODY, RH
61302PILLAR SUB-ASSY, CENTER BODY, LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61346BPILLAR, CENTER BODY, INNER LOWER LH
61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH
61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH
61426AREINFORCEMENT, ROCKER PANEL, NO.4 LH
61615FREINFORCEMENT, QUARTER PANEL, OUTER RH
61619DREINFORCEMENT, QUARTER PANEL, RH
61623BTROUGH, BACK DOOR OPENING, REAR RH
61624BTROUGH, BACK DOOR OPENING, REAR LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
sub61632-08902
sub61632-08903
W(AUTO SLIDE DOOR & EASY CLOSER = RH & LH)
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61647CREINFORCEMENT, WHEEL HOUSE, RH
61648CREINFORCEMENT, WHEEL HOUSE, LH
61654CBRACKET, DECK SIDE TRIM, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61713AEXTENSION, ROOF SIDE, OUTER RH
61714AEXTENSION, ROOF SIDE, OUTER LH
61729DPLATE, FUEL INLET BOX
61731BPANEL, ROOF SIDE, INNER RH
sub61731-08020
W(AUTO SLIDE DOOR & EASY CLOSER)
sub61731-08901
W(AUTO SLIDE DOOR & EASY CLOSER)
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737BPANEL, ROOF SIDE, INNER LOWER RH
61738BPANEL, ROOF SIDE, INNER LOWER LH
61739BREINFORCEMENT, EXTENSION QUARTER INNER PANEL
61776ANUT, W/PLATE
61824PLATE, NOISE CONTROL, NO.1
61824CPAD, NOISE SHUTTER, NO.1
sub61824-12080
61825APLATE, NOISE CONTROL, NO.2
61825BPLATE, NOISE CONTROL, NO.2
61826CPAD, NOISE SHUTTER, NO.3
62381AWEATHERSTRIP, ROOF SIDE RAIL, RH
62382AWEATHERSTRIP, ROOF SIDE RAIL, LH
62615ECOVER, QUARTER WHEEL HOUSE, INNER RH
62616DCOVER, QUARTER WHEEL HOUSE, INNER LH
67887GWEATHERSTRIP, ROCKER OUTER, RH
67888EWEATHERSTRIP, ROCKER OUTER, LH
75921ATAPE, BLACK OUT, NO.1 RH
75922CTAPE, BLACK OUT, NO.1 LH
9011906215
main90119-06215
9033330002
main90333-30002
9033330008
main90333-30008
9033348001
main90333-48001
9095001336
main90950-01336
9095001759
main90950-01759
9095001826
main90950-01826
9095001841
main90950-01841
9095001871
main90950-01871
9095006109
main90950-06109
79 parts on this diagram · 2 diagrams in section
