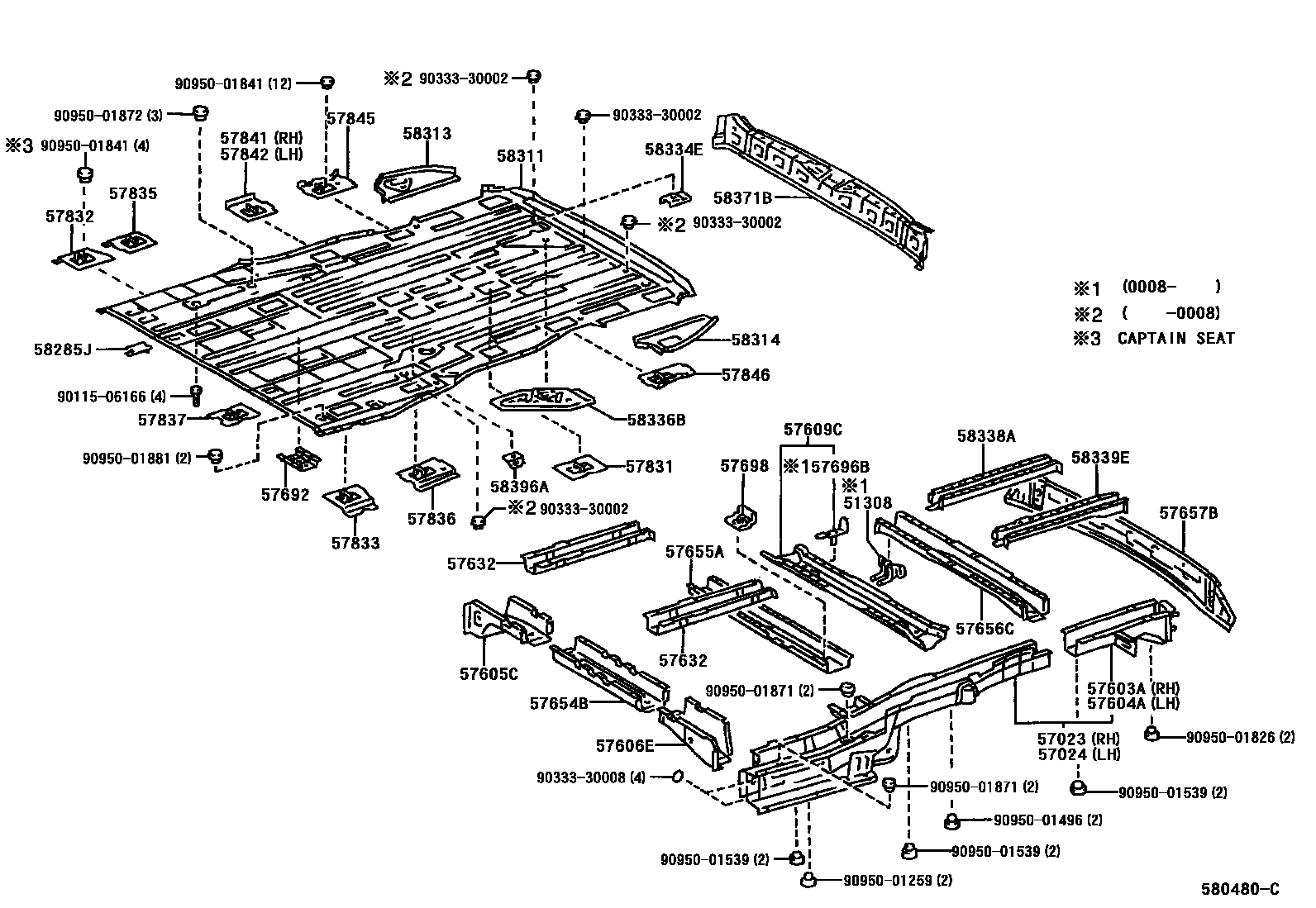

REAR FLOOR PANEL & REAR FLOOR MEMBER
51308BRACKET SUB-ASSY, EXHAUST PIPE CLAMP
57024MEMBER SUB-ASSY, REAR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605CMEMBER SUB-ASSY, REAR FLOOR CROSS
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57632MEMBER, REAR FLOOR, CENTER NO.1
57654BMEMBER, REAR FLOOR CROSS, NO.3
57656CMEMBER, REAR FLOOR CROOS, NO.5
57657BMEMBER, REAR FLOOR CROSS, NO.6
57692BRACKET, FUEL TANK MOUNTING, REAR CENTER
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
57698REINFORCEMENT, FUEL TANK
57831REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
W(CAPTAIN SEAT)
57832REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57833REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.3
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57837REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.3
57841REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57842REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57845REINFORCEMENT, REAR NO.2 SEAT LEG, REAR RH
57846REINFORCEMENT, REAR NO.2 SEAT LEG, REAR LH
58285JCOVER, CENTER FLOOR HOLE
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58334EREINFORCEMENT, REAR FLOOR PART PANEL, NO.2
58336BREINFORCEMENT, REAR FLOOR PAN
58338AREINFORCEMENT, REAR FLOOR PAN, NO.2
58339EREINFORCEMENT, REAR FLOOR PAN, NO.2 LH
58371BPANEL, BODY LOWER BACK, OUTER
58396ABRACKET, WIRE HARNESS CLAMP
9011506166
main90115-06166
9033330002
main90333-30002
9033330008
main90333-30008
9095001259
main90950-01259
9095001496
main90950-01496
9095001539
main90950-01539
9095001826
main90950-01826
9095001841
main90950-01841
9095001871
main90950-01871
9095001872
main90950-01872
9095001881
main90950-01881
47 parts on this diagram · 1 diagram in section
