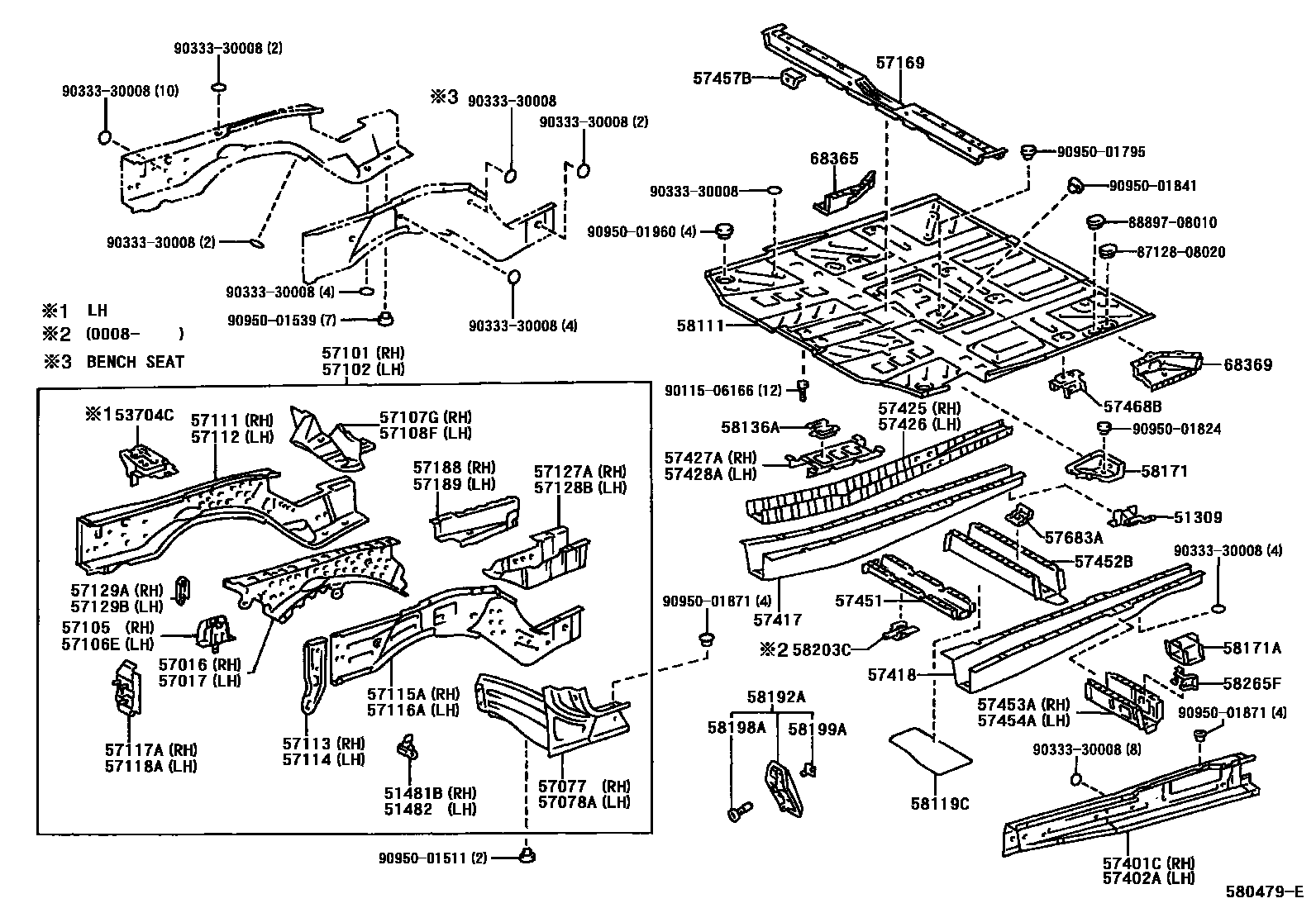

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51309BRACKET SUB-ASSY, EXHAUST PIPE CLAMP, NO.2

main51309-08010iMCL10199708

51481BBRACKET, UNDER GUARD, FRONT RH

main51481-08010iMCL10199708

51482BRACKET, UNDER GUARD, FRONT LH

main51482-08010iMCL10199708

53704CSUPPORT SUB-ASSY, BATTERY, LH

main53704-08010iMCL10199708

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-08010iMCL10199708

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-08010iMCL10199708-200008

main57017-08011iMCL10200008

57077BOX SUB-ASSY, TORQUE, FRONT RH

main57077-45010iMCL10199708

57078ABOX SUB-ASSY, TORQUE, FRONT LH

main57078-45010iMCL10199708

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-08010iMCL10199708

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-08010iMCL10199708-200008

main57102-08011iMCL10200008-200107

main57102-08020iMCL10200008

W(VSC)

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-33020iMCL10199708

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-33020iMCL10199708

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-45010iMCL10199708

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-45010iMCL10199708

57111MEMBER, FRONT SIDE, RH

main57111-08010iMCL10199708

57112MEMBER, FRONT SIDE, LH

main57112-08010iMCL10199708-200008

main57112-08011iMCL10200008

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-08010iMCL10199708

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-08010iMCL10199708

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-08010iMCL10199708

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-08010iMCL10199708

57117AREINFORCEMENT, FRONT BUMPER MOUNTING

main57117-08010iMCL10199708

57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH

main57118-08010iMCL10199708

57127AREINFORCEMENT, FRONT SIDE MEMBER, NO.8 RH

main57127-08010iMCL10199708

57128BREINFORCEMENT, FRONT SIDE MEMBER, NO.8 LH

main57128-08010iMCL10199708

57129APLATE, FRONT SIDE MEMBER, FRONT LH

main57129-45010iMCL10199708

57129BPLATE, FRONT SIDE MEMBER, FRONT RH

main57129-45010iMCL10199708

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-08010iMCL10199708

57188REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-08010iMCL10199708

57189REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-08010iMCL10199708

57401CMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-08010iMCL10199708

57402AMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-08010iMCL10..4D199708-200008

main57402-08020iMCL10..5D199708

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57417-08010iMCL10199708

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57418-08010iMCL10199708-200008

main57418-08011iMCL10200008

57425REINFORCEMENT, FRONT FLOOR, NO.2 RH

main57425-08010iMCL10199708

57426REINFORCEMENT, FRONT FLOOR, NO.2 LH

main57426-08010iMCL10199708

57427AREINFORCEMENT, FRONT FLOOR, NO.3 RH

main57427-45010iMCL10199708

57428AREINFORCEMENT, FRONT FLOOR, NO.3 LH

main57428-45010iMCL10199708

57451MEMBER, FRONT FLOOR CROSS

main57451-08010iMCL10199708-200008

main57451-08011iMCL10200008

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-08010iMCL10199708

57453AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, RH

main57453-08010iMCL10199708

57454AREINFORCEMENT, FRONT FLOOR CROSSMEMBER, LH

main57454-08010iMCL10199708

57457BBRACKET, FRONT SEAT, FRONT

main57457-08010×4iMCL10199708

57468BBRACKET, FRONT SEAT, REAR

main57468-08010×4iMCL10199708

57683ABRACKET, FUEL TANK MOUNTING, NO.1

main57683-08010×2iMCL10199708

58111PAN, FRONT FLOOR

main58111-08900iMCL10..4D199708-200008

main58111-08901iMCL10..5D199708-200008

main58111-08902iMCL10200008

58119CCUSHION, FRONT FLOOR

main58119-08010iMCL10..4D199708-200008

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-08010×6iMCL10199708

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-08010iMCL10199708

58171AREINFORCE, PARKING BRAKE BASE

main58107-08010iMCL10199708

58192AFOOTREST, FRONT FLOOR, LH

main58192-08010iMCL10199708

58198ACLIP, FOOTREST, NO.1

main58198-06010×2iMCL10199708

58199ACLIP, FOOTREST, NO.2

main58199-06010×2iMCL10199708

58203CBRACKET SUB-ASSY, EXHAUST PIPE MOUNTING

main58203-08020×2iMCL10200008

58265FBRACKET, PARKING BRAKE CABLE GUIDE, NO.2 LH

main58265-08010iMCL10199708

68365BRACKET, SLIDE DOOR LOWER RAIL

main68365-08010iMCL10199708

68369BRACKET, SLIDE DOOR LOWER RAIL, LH

main68369-08010iMCL10..5D199708

8712808020GROMMET, HEATER

main87128-08020

8889708010VALVE, COOLER MAGNET

main88897-08010

9011506166

main90115-06166

9033330008

main90333-30008

9095001511

main90950-01511

9095001539

main90950-01539

9095001795

main90950-01795

9095001824

main90950-01824

9095001841

main90950-01841

9095001871

main90950-01871

9095001960

main90950-01960

67 parts on this diagram · 1 diagram in section
