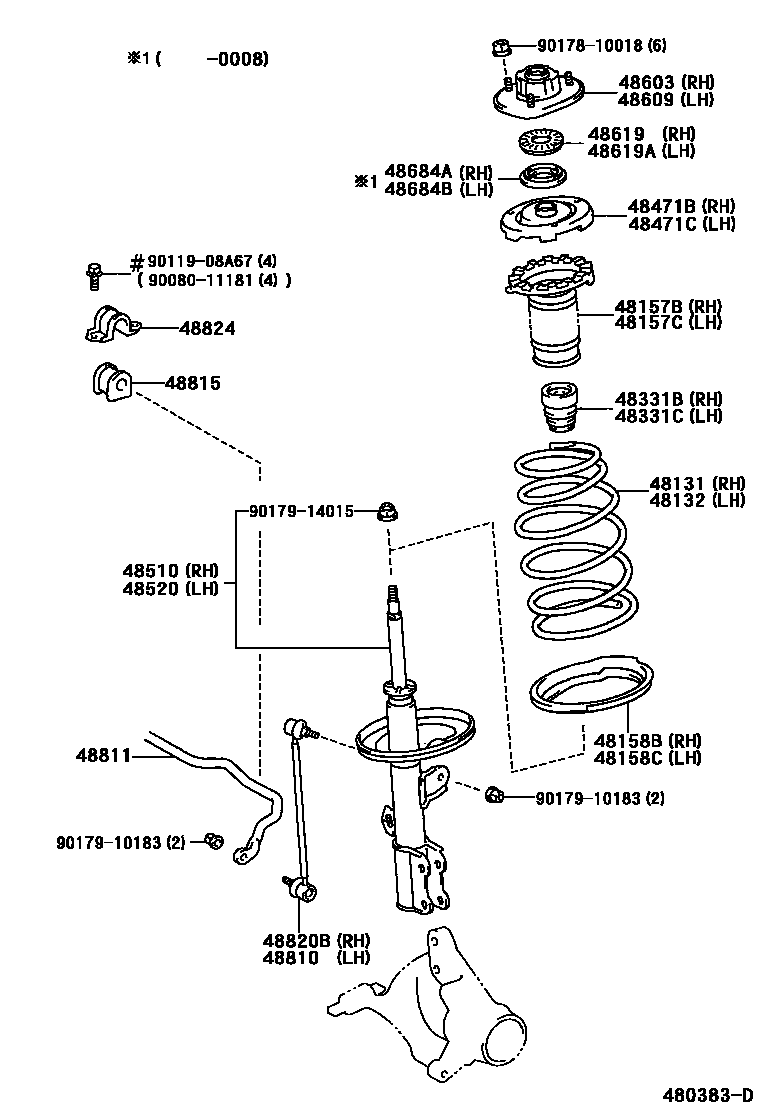

FRONT SPRING & SHOCK ABSORBER
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-AE010
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-AE010
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824BRACKET, STABILIZER, FRONT
sub48824-33020
9008011181
main90080-11181
9011908A67
main90119-08A67
9017810018
main90178-10018
9017910183
main90179-10183
9017914015
main90179-14015
28 parts on this diagram · 1 diagram in section
