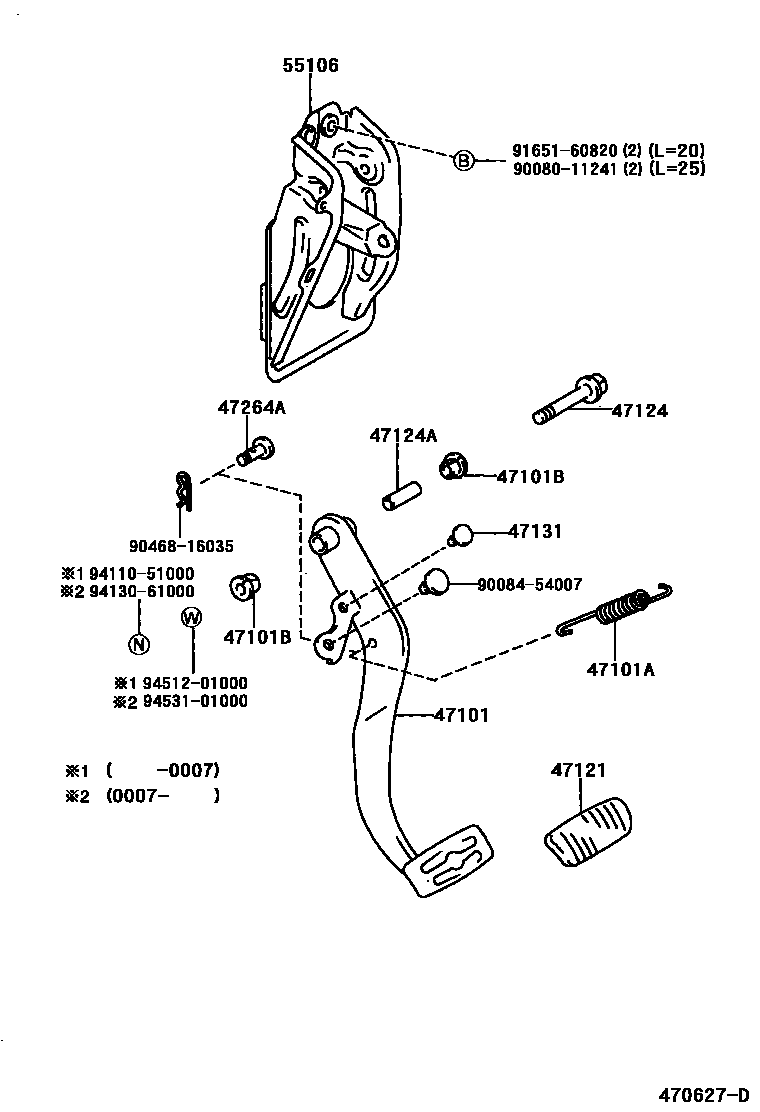

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-AE010iMCL10199708-200207

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90084-50019iMCL10199708-200207

main90506-18084iMCL10200207

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCL10199708-200207

main90386-14015iMCL10200207

47121PAD, BRAKE PEDAL

main47121-50010iMCL10200207

main47121-AC010iMCL10199708-200207

sub47121-14010

47124SHAFT, BRAKE PEDAL

main90084-10023iMCL10199912-200207

main91121-51070iMCL10199708-199912

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-34010iMCL10200207

main90387-10004iMCL10199708-200207

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCL10199708

47264APIN(FOR PUSH ROD)

main47148-33011iMCL10200207

main90249-08256iMCL10199708-200207

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-45010iMCL10199708-200007

sub55106-45011

main55106-45011iMCL10200007-200207

main55106-45020iMCL10200207

9008011241

main90080-11241

9008454007

main90084-54007

9046816035

main90468-16035

9165160820

main91651-60820

9411051000

main94110-51000

9413061000

main94130-61000

9451201000

main94512-01000

9453101000

main94531-01000

17 parts on this diagram · 2 diagrams in section
