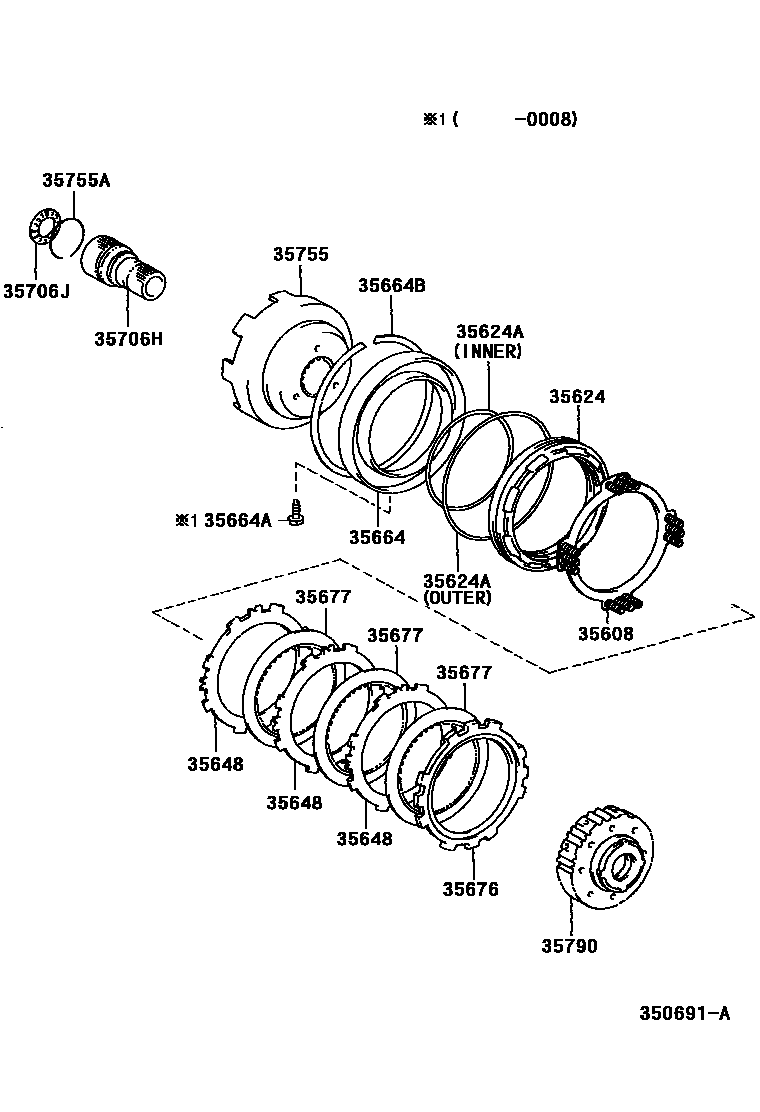

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-32010iMCL10199708-200008

main35608-33010iMCL10200008

35624PISTON, 2ND BRAKE

main35624-32010iMCL10199708-200008

main35624-33010iMCL10200008

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iMCL10199708

INNER

main90301-99023iMCL10199708

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-32030iMCL10199708-200008

T=1.8

main35648-33010iMCL10200008

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iMCL10199708

35664ABOLT (FOR 2ND BRAKE CYLINDER)

main90109-06060iMCL10199708-200008

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iMCL10199708

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-12030iMCL10199810-200008

T=3.5

main35676-32010iMCL10199708-199810

T=3.5

sub35676-12030

main35676-33010iMCL10200008

T=3.6

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-33021iMCL10199708-200008

main35677-33050iMCL10200008

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-33012iMCL10199708

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30014iMCL10199708

35755DRUM, SUN GEAR INPUT

main35755-32030iMCL10199708-200008

main35755-33010iMCL10200008

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-36017iMCL10199708

T=1.4,ID=36

35790CLUTCH ASSY, 1 WAY

main35790-32031iMCL10199708-200008

main35790-33010iMCL10200008

14 parts on this diagram · 1 diagram in section
