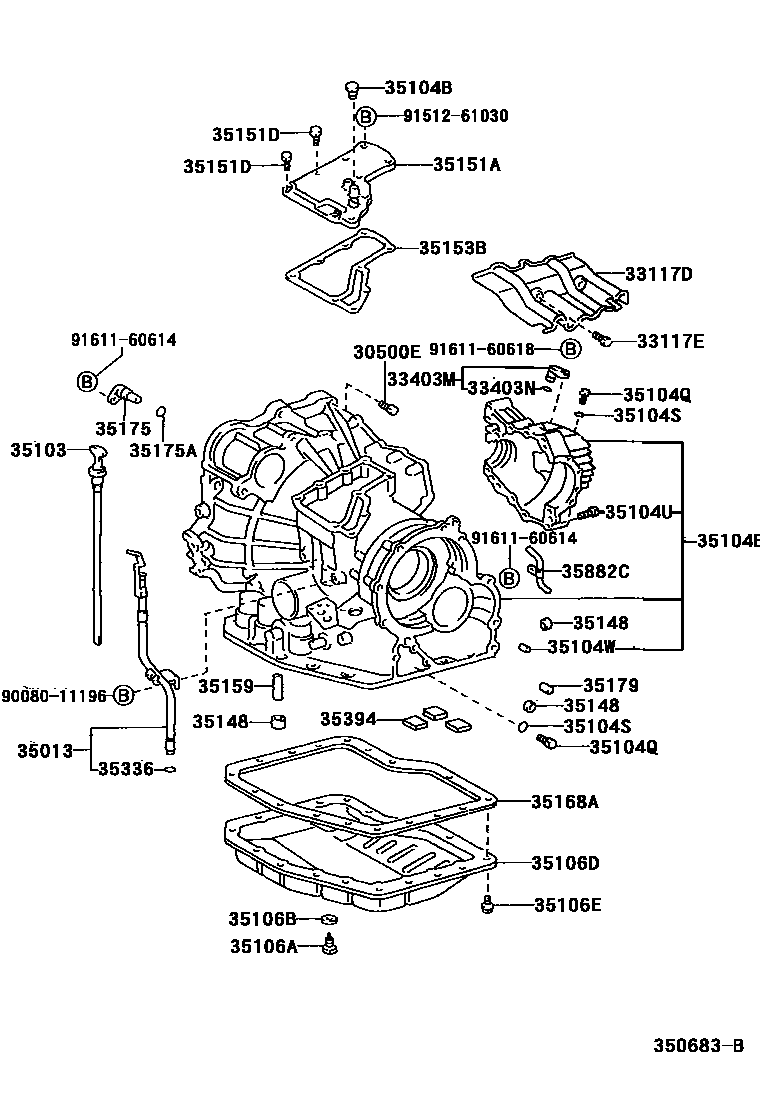

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A540E 0002 1A541E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90080-11310iMCL10199904

*12-1.25PX55-30,(L)

main90080-11424iMCL10199904

*12-1.25PX65-30,(L)

main90119-12168iMCL10199708-199904

*12-1.25PX55-30

main90119-12168iMCL10199904

*12-1.25PX55-30,(J)

main91619-61265iMCL10199708-199904

*12-1.25PX65-30

main91619-61265iMCL10199904

*12-1.25PX65-30,(J)

main92412-H1055iMCL10199708

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-07010iMCL10199708

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90080-10083iMCL10199711

(L)

main90105-08040iMCL10199708-199711

sub91641-H0820

main90105-08040iMCL10199711

(J)

sub91641-H0820

33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)

main33403-20230iMCL10200008

main33403-20250iMCL10199708-200008

33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)

main90301-11008iMCL10199708-200008

main96711-24018iMCL10200008

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-06040iMCL10199708-200008

main35013-07010iMCL10200008

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-07020iMCL10200008-200101

main35103-08010iMCL10199708-200008

main35103-08020iMCL10200101

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03001iMCL10199708

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33903iMCL10200008

main35104-45010iMCL10199708-200008

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iMCL10199708

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iMCL10199708

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10222iMCL10199708

*10-1.25PX65-30

main90105-10223iMCL10199708

*10-1.25PX75-30

main90105-10224iMCL10199708

*10-1.25PX100-30

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10232iMCL10199708

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-18016iMCL10199708

35106BGASKET, DRAIN PLUG (ATM)

main90430-18008iMCL10199708

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-32041iMCL10199708-200008

main35106-33020iMCL10200008

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iMCL10199708

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iMCL10199708-200008

35151ACOVER, TRANSAXLE CASE, UPPER

main35151-33022iMCL10200008

main35151-45010iMCL10199708-200008

35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)

main90105-06113iMCL10199708-200008

*6-1.00PX20-18

sub91511-H0620

main90105-08174iMCL10199708-200008

*8-1.25PX28-18

main90109-08235iMCL10200008

*10-1.25PX30-22

35153BGASKET, TRANSAXLE CASE UPPER COVER

main35153-32010iMCL10199708-200008

main35153-33020iMCL10200008

35159GASKET, BRAKE DRUM

main35159-32011iMCL10199708

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-33020iMCL10199708-200008

main35168-33030iMCL10200008-200211

sub35168-33031

main35168-33031iMCL10200211

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iMCL10199708-200008

main35175-33010iMCL10200008

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-16006iMCL10200008

main90301-21002iMCL10199708-200008

35179GASKET, OVERDRIVE BRAKE

main35179-32010iMCL10199708

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iMCL10199708

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iMCL10199708

35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY

main35882-33020iMCL10199708

9008011196

main90080-11196

9151261030

main91512-61030

9161160614

main91611-60614

9161160618

main91611-60618

33 parts on this diagram · 2 diagrams in section
