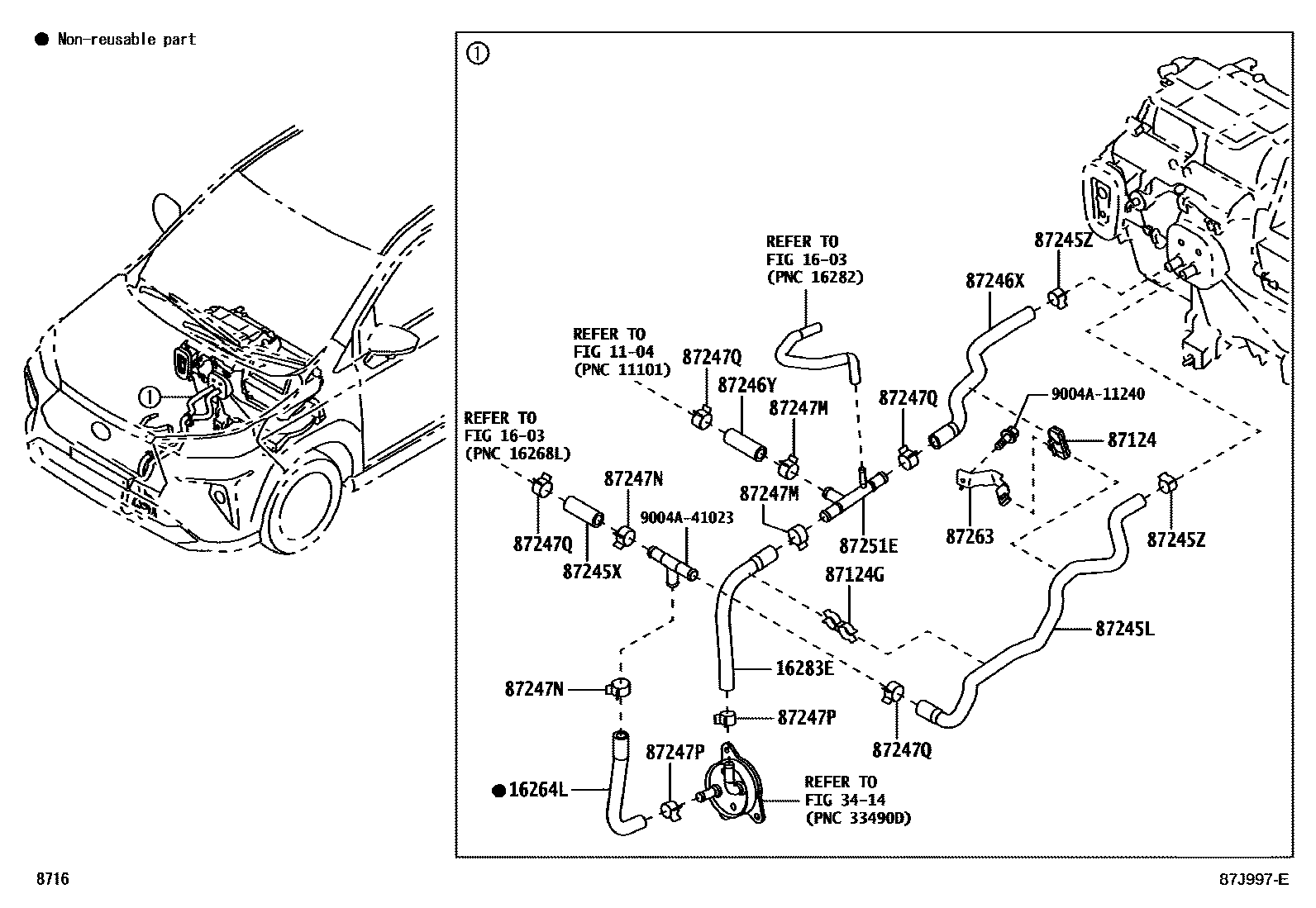

HEATING & AIR CONDITIONING - WATER PIPING

0001 1CVT 0003 15F

1104

1603

16264LHOSE, WATER BY-PASS, NO.2

main16264-BZ240i2NRVE..W101..CVT..(GCC,GEN,MXC,VN)202201

16283EHOSE, WATER BY-PASS, NO.6

main16261-BZ440i2NRVE..W101..CVT..(GCC,GEN,MXC,VN)202201

3414

87124CLAMP, HEATER

main87124-B2080iW101..5F..PHL202201-202309

VIETNAM

main87124-B2080iW10#..GCC,GEN,MXC,VN202201

87124GCLAMP, HEATER HOSE, NO.2

main87124-BZ030iW101..5F..PHL202201-202309

VIETNAM

main87124-BZ030iW10#..GCC,GEN,MXC,VN202201

87245LHOSE, HEATER WATER, L

main87245-BZ380iW101..M..GEN202201

main87245-BZ390iW101..LHD..CVT..(GCC,GEN,MXC,VN)202201

main87245-BZ410iW101..5F..PHL202201-202309

87245XHOSE, HEATER WATER

main87242-BZ060iW101..CVT..(GCC,GEN,MXC,VN)202201

L=64

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96136-42101iW101..5F..PHL202201-202309

VIETNAM

main96136-42101iW10#..GCC,GEN,MXC,VN202201

87246XHOSE, HEATER WATER

main87246-BZ320iW101..M..GEN202201

L=284

main87246-BZ330iW101..LHD..CVT..(GCC,GEN,MXC,VN)202201

L=309

main87246-BZ350iW101..5F..PHL202201-202309

L=366.6

87246YHOSE, HEATER WATER

main87243-BZ050iW101..CVT..(GCC,GEN,MXC,VN)202201

L=70

87247MCLIP, HOSE

main96136-42501iW101..CVT..(GCC,GEN,MXC,VN)202201

87247NCLIP, HOSE

main96136-42501iW101..CVT..(GCC,GEN,MXC,VN)202201

87247PCLIP, HOSE

main96136-42101iW101..CVT..(GCC,GEN,MXC,VN)202201

87247QCLIP, HOSE

main96136-42501iW101..CVT..PHL202201-202309

VIETNAM

main96136-42501iW10#..5F..(GEN,MXC,VN)202201

87251EJOINT, WATER, NO.2

main87251-BZ020iW101..CVT..(GCC,GEN,MXC,VN)202201

87263BRACKET, HEATER WATER PIPE, NO.1

main87263-BZ020iW101..5F..PHL202201-202309

VIETNAM

main87263-BZ020iW10#..GCC,GEN,MXC,VN202201

9004A11240

main9004A-11240

9004A41023

main9004A-41023

20 parts on this diagram · 2 diagrams in section
