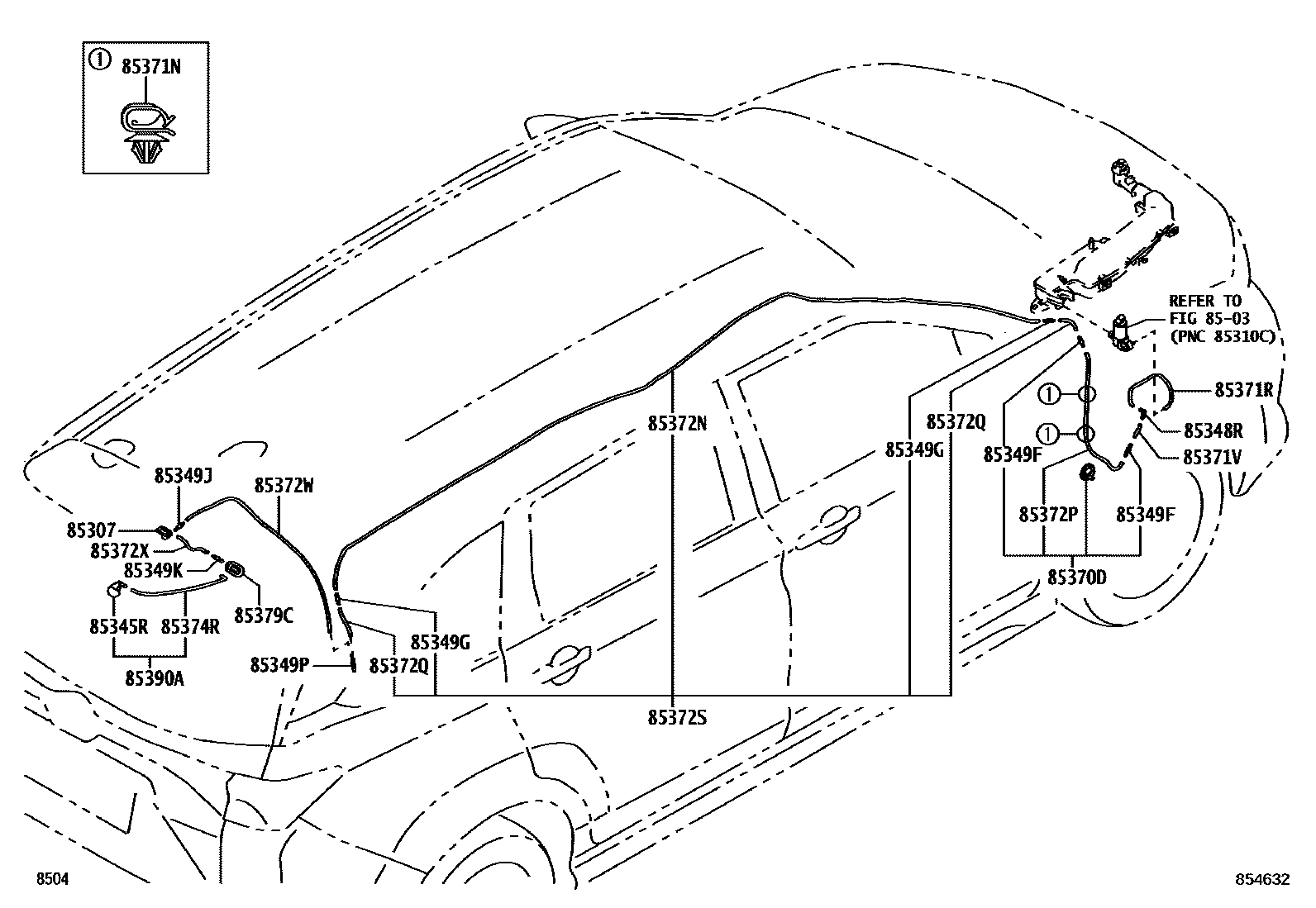

REAR WASHER
8503
85307GROMMET SUB-ASSY, WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85349FJOINT, REAR WASHER HOSE, NO.1
85349GJOINT, REAR WASHER HOSE, NO.2
85349JJOINT, REAR WASHER HOSE, NO.4
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85370DHOSE ASSY, REAR WASHER, NO.1
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=270
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=40
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=3050
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=540
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=80
85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
L=640
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
L=130
85374RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
*H,L=300
85379CGROMMET, REAR WASHER HOSE NO.1
85390ANOZZLE & HOSE ASSY, RR WASHER
22 parts on this diagram · 2 diagrams in section
