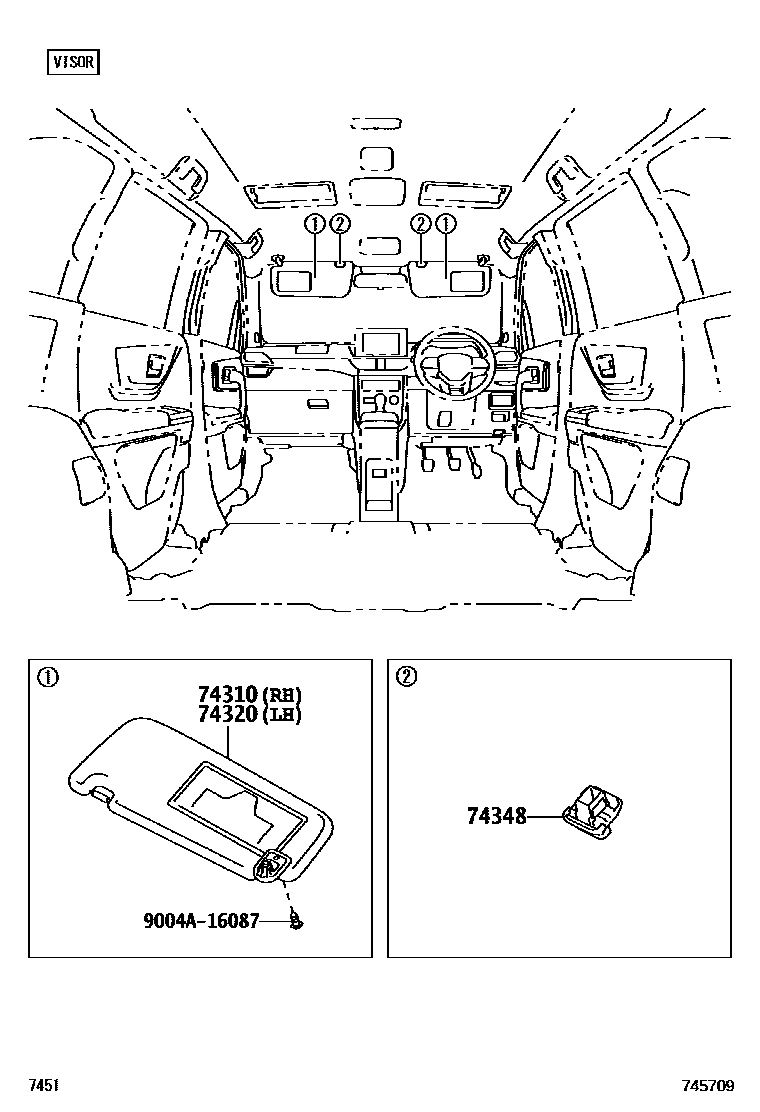

ARMREST & VISOR

0001 1VISOR 0002 1ARMREST 0003 1ARMREST 0004 1ASSIST GRIP

74310VISOR ASSY, RH

main74310-BZ510-B1iW100,101..RHD..(D,M)202111

LT.GRAY,TRIM2#

main74310-BZ880-B1iW101..RHD..(S,V)202111

LT.GRAY,TRIM2#

main74310-BZD40-B0iW100..GEN;W101..MXC;W101..CVT..G..GEN202201

CAMBODIA,LT.GRAY,TRIM2#

main74310-BZD50-B0iW101..MXC202201

PERU + BOLIVIA,LT.GRAY,TRIM2#

main74310-BZD60-B0iW101..CVT..G..GEN202201

CENTRAL & SOUTH AMERICA + ASIA,LT.GRAY,TRIM2#

main74310-BZD70-B0iW101..LHD..(S,V)202201

LT.GRAY,TRIM2#

main74310-BZC80-B0iW101..V..PHL202311

CAMBODIA,LT.GRAY,TRIM2#

74320VISOR ASSY, LH

main74320-BZ410-B1supersedes 74320-BZ420-B1iW100,101..LHD..(D,G,M)..(GEN,PHL,VN)202201

PERU + BOLIVIA,LT.GRAY,TRIM2#

main74320-BZ800-B1iW101..LHD..(S,V)202201

LT.GRAY,TRIM2#

main74320-BZA60-B0iW101..(S,V)..IDN202111

LT.GRAY,TRIM2#

main74320-BZA70-B0iW101..RHD..M202111

LT.GRAY,TRIM2#

main74320-BZA80-B0iW100..IDN202111

LT.GRAY,TRIM2#

main74320-BZD60-B0iW101..THAI202201

LT.GRAY,TRIM2#

74348HOLDER, VISOR

main74348-BZ060-B0×2iW100,101202111

LT.GRAY,TRIM2#

9004A16087

main9004A-16087

4 parts on this diagram · 4 diagrams in section
