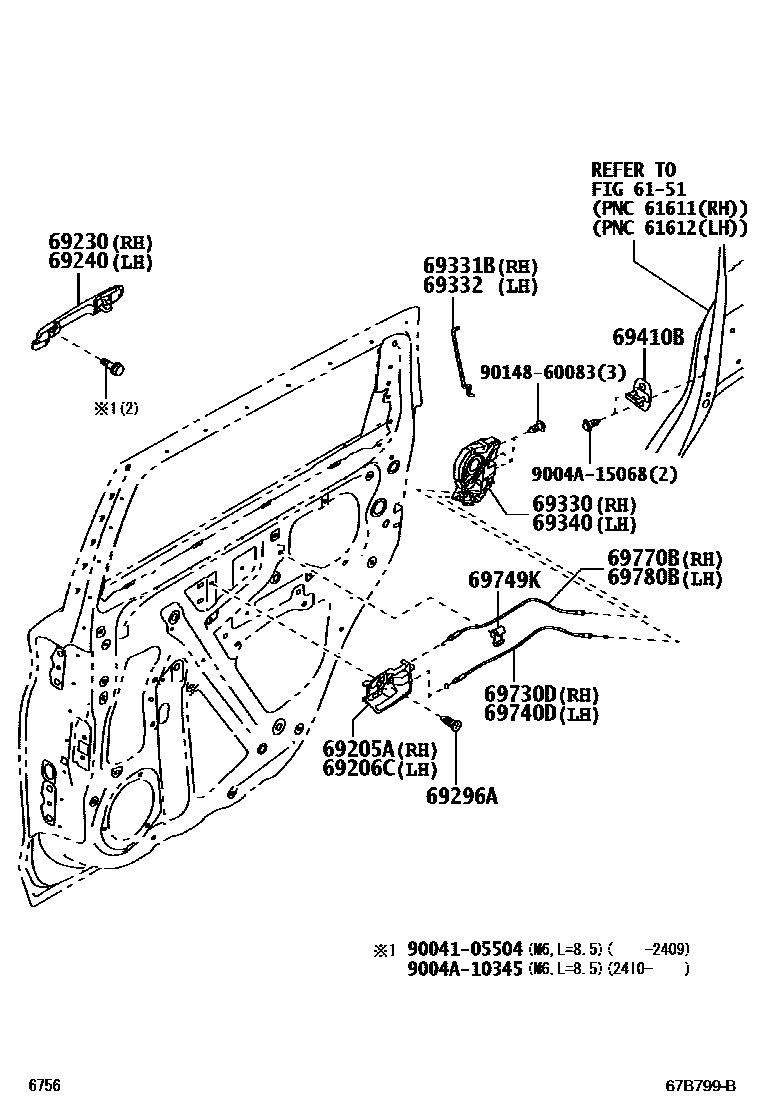

REAR DOOR LOCK & HANDLE

6151

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-BZ170-C0iW100..D;W101..GEN202111

BLACK,TRIM2#

main69270-BZ180-C0iW100,101..(G,M,S,V)..(GCC,IDN,MXC,PHL,THAI,VN)202111

BLACK,TRIM2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-BZ170-C0iW100..D;W101..GEN202111

BLACK,TRIM2#

main69280-BZ180-C0iW100,101..(G,M,S,V)..(GCC,IDN,MXC,PHL,THAI,VN)202111

BLACK,TRIM2#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-BZ650-A0iW100,101..D,G,M202111

WHITE,W09

main69210-BZ650-A2iW101..S,V202111

PLATINUM WHITE PEARL MC.,089

main69210-BZ650-B0iW100,101202111

SILVER ME.,S28

main69210-BZ650-B1iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

GRAY ME.,1G3

main69210-BZ650-C0iW100,101202111

BLACK ME.,X12

main69210-BZ650-D1iW101..(S,V)..VN;W100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

DK. RED M.M.,3Q3

main69210-BZ650-G0iW100,101..(D,G,M)..(GEN,IDN,MXC,PHL)202111

GREENISH GUN METAL M.M,G64

main69210-BZ650-K0iW100,101202111

PURPLISH SILVER M.M,P20

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-BZ640-A0iW100,101..D,G,M202111

WHITE,W09

main69220-BZ640-A2iW101..S,V202111

PLATINUM WHITE PEARL MC.,089

main69220-BZ640-B0iW100,101202111

SILVER ME.,S28

main69220-BZ640-B1iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

GRAY ME.,1G3

main69220-BZ640-C0iW100,101202111

BLACK ME.,X12

main69220-BZ640-D1iW101..(S,V)..VN;W100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

DK. RED M.M.,3Q3

main69220-BZ640-G0iW100,101..(D,G,M)..(GEN,IDN,MXC,PHL)202111

GREENISH GUN METAL M.M,G64

main69220-BZ640-K0iW100,101202111

PURPLISH SILVER M.M,P20

69296ASCREW, DOOR INSIDE HANDLE

main9004A-16093×2iW100,101202111

69330LOCK ASSY, REAR DOOR, RH

main69330-BZ280iW100,101202111

69331BROD, REAR DOOR LOCK OPEN, RH

main69331-BZ120iW100,101202111

69332ROD, REAR DOOR LOCK OPEN, LH

main69332-BZ120iW100,101202111

69340LOCK ASSY, REAR DOOR, LH

main69340-BZ280iW100,101202111

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-BZ010×2iW100,101202111

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-BZ260iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main69730-BZ380iW101..VN202212

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-BZ260iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main69730-BZ380iW101..VN202212

69749KCLAMP, REAR DOOR LOCK

main69749-BZ100×2iW100,101202111

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-BZ170iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main69770-BZ290iW101..VN202212

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-BZ160iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

main69780-BZ290iW101..VN202212

9004105504

main90041-05504

9004A10345

main9004A-10345

9004A15068

main9004A-15068

9014860083

main90148-60083

20 parts on this diagram · 1 diagram in section
