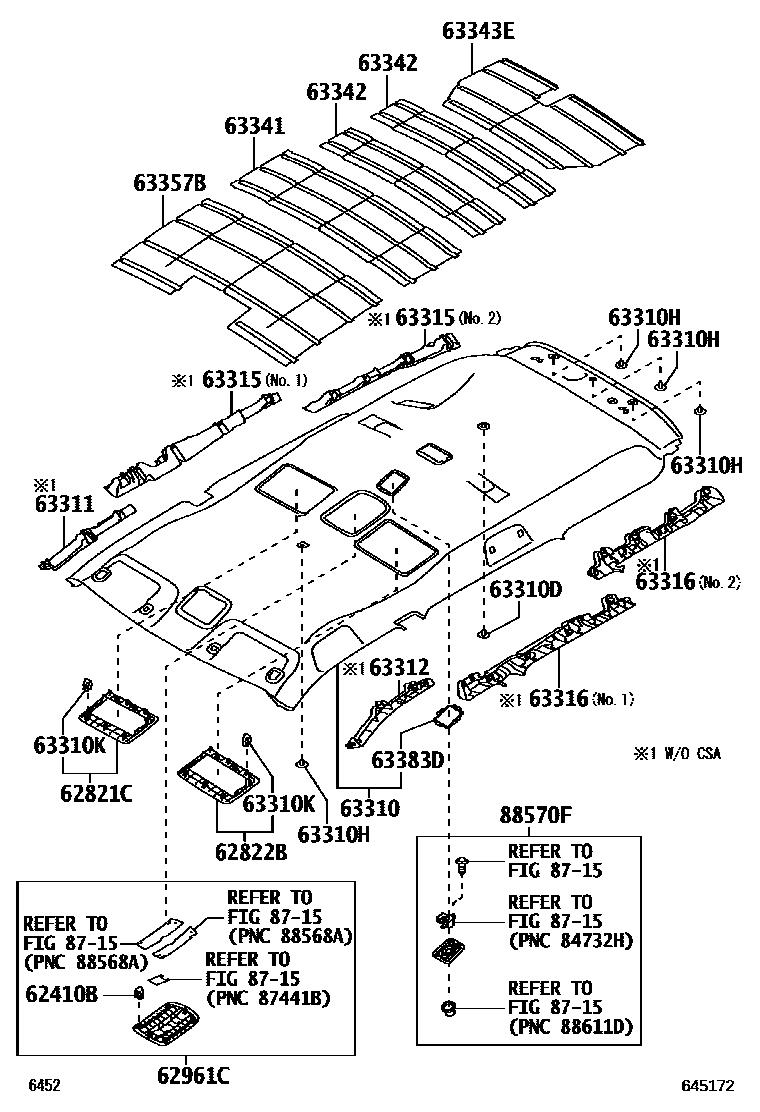

ROOF HEADLINING & SILENCER PAD

0001 1W/ AIRCON 0004 1W/O AIRCON

62410BCLIP

main90467-05171iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

62821CGRILLE, ROOM VENTILATION, RH

main62821-BZ020-B0iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

LT.GRAY,TRIM2#

62822BGRILLE, ROOM VENTILATION, LH

main62822-BZ020-B0iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

LT.GRAY,TRIM2#

62961CGRILLE, ROOM VENT

main62961-BZ070-B0iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

LT.GRAY,TRIM2#

63310HEADLINING ASSY, ROOF

main63310-BZC80-B0iW101..THAI;W100,101..RHD..(D,M)202111

LIGHT GREY,TRIM2#

main63310-BZD00-B0iW101..CVT..G..GEN;W100,101..GCC,MXC,PHL202201

LIGHT GREY,TRIM2#

main63310-BZD10-B0iW101..MXC202201

LIGHT GREY,TRIM2#

main63310-BZD10-B0iW100,101..5F..GEN202201

PERU + BOLIVIA,LIGHT GREY,TRIM2#

main63310-BZG10-B0iW101..(S,V)..IDN202111

W/O,LIGHT GREY,TRIM2#

main63310-BZG10-B0iW101..(S,V)..IDN202111

LIGHT GREY,TRIM2#

main63310-BZJ30-B0iW101..VN202212

LIGHT GREY,TRIM2#

63310DCLIP, ROOF HEADLINING

main90044-67571-B0iW100,101202111

LT.GRAY,TRIM2#

sub90044-67571

63310HCLIP(FOR ROOF HEADLINING)

main9004A-46358-B1iW100,101..5F..GEN202111

LT.GRAY,TRIM2#

main9004A-46358-B1iW100,101..5F..GEN202201

PERU + BOLIVIA,LT.GRAY,TRIM2#

63310KCLIP

main90467-05171iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

63311GARNISH, ROOF HEADLINING, FRONT RH

main62431-BZ020iW101..MXC202111-202209

main62431-BZ020iW101..CVT..(M,V)..IDN202111

REAR & REAR SIDE MONITOR(BSM + RCTA)

63312GARNISH, ROOF HEADLINING, FRONT LH

main62432-BZ020iW100;W101..GEN,IDN;W101..LHD..5F..M202111

REAR & REAR SIDE MONITOR(BSM + RCTA)

main62432-BZ020iW101..MXC202111-202209

63315GARNISH, ROOF HEADLINING, REAR RH

main62441-BZ020iW100;W101..GEN,IDN;W101..LHD..5F..M202111

REAR & REAR SIDE MONITOR(BSM + RCTA),NO.1

main62441-BZ020iW101..MXC202111-202209

NO.1

main62451-BZ040iW101..MXC202111-202209

NO.2

63316GARNISH, ROOF HEADLINING, REAR LH

main62442-BZ030iW101..CVT..(M,V)..IDN202111

REAR & REAR SIDE MONITOR(BSM + RCTA),NO.1

main62442-BZ030iW101..MXC202111-202209

NO.1

main62452-BZ040iW101..MXC202111-202209

NO.2

63341PAD, ROOF SILENCER, NO.1

main63342-BZ260iW100,101202111

63342PAD, ROOF SILENCER, NO.2

main63342-BZ270iW100,101202111

63343EPAD, ROOF SILENCER, NO.3

main63342-BZ280iW100,101202111

63357BSILENCER, ROOF

main63357-BZ030iW100,101202111

63383DRETAINER, ROOF HEADLINING, REAR

main63383-BZ020iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

8715

88570FGRILLE ASSY, AIR OUTLET

main88404-BZ080-B0iW101..MXC;W101..M,S,V;W100..IDN,PHL;W101..CVT..G..GEN202111

LT.GRAY,TRIM2#

19 parts on this diagram · 2 diagrams in section
