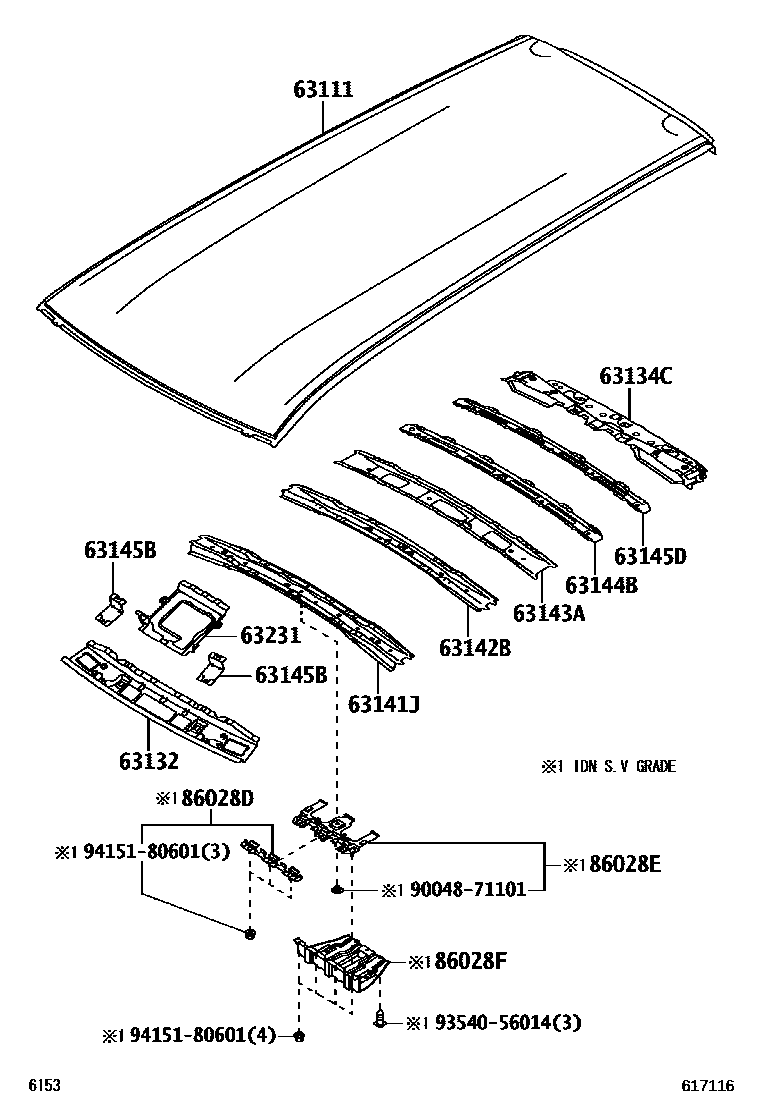

ROOF PANEL & BACK PANEL

0001 1ROOF PANEL 0002 1ROOF RAIL

63111PANEL, ROOF

main63111-BZ320iW100,101..D,G,M202111

main63111-BZ330iW101..S,V202111

63132PANEL, WINDSHIELD HEADER, INNER

main63132-BZ290iW100,101202111

63134CFRAME, BACK DOOR OPENING, INNER

main63134-BZ280iW100,101202111

63141JREINFORCEMENT, ROOF PANEL

main63141-BZ150iW100,101202111

63142BREINFORCEMENT, ROOF PANEL, REAR

main63142-BZ170iW100,101202111

63143AREINFORCEMENT, ROOF PANEL

main63143-BZ150iW100,101202111

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-BZ120iW100,101202111

63145BREINFORCEMENT, WINDSHIELD HEADER PANEL

main63157-BZ010iW100,101202111

63145DBRACKET, ROOF REINFORCEMENT

main63145-BZ060iW100,101202111

63231BRACKET, ROOM LAMP

main63138-BZ050iW100,101202111

86028DBRACKET, ROOF PANEL REINFORCEMENT

main86028-BZ010iW101..(S,V)..IDN202111

W/O

86028EBRACKET SUB-ASSY, TELEVISION, NO.2

main86028-BZ020iW101..(S,V)..IDN202111

W/O

86028FBRACKET SUB-ASSY, TELEVISION, NO.3

main86028-BZ030iW101..(S,V)..IDN202111

W/O

9004871101

main90048-71101

9354056014

main93540-56014

9415180601

main94151-80601

16 parts on this diagram · 2 diagrams in section
